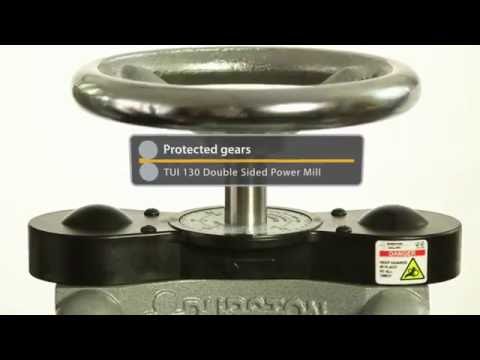

Durston TUI 130 Double Sided Power Rolling Mill-130mm Flat & 130mm Wire 110V

The Durston TUI double sided power rolling mill has the exact same quality rolls and steel gears as used on the more expensive line of Durston power mills but cost less as it uses a steel base instead of a cast iron base. Other savings are found by using an steel center guard instead of cast iron and a single centrally located emergency stop button. These changes are mostly cosmetic as one must admit that the TUI mills are not quite as good looking as the more attractively designed DRM power mills. As far as function goes however, the TUI mills are identical to the premium line of Durston power mills.

The TUI series also offers a fully array of safety features including an emergency stop button, safety bars at front and rear of roll access and guards covering the extension rollers at the end of the mill.

Key Features:

• Steel Base 64 Rc Harden Rolls down to 6 mm deep for the Flat
• Metric and Inch Adjustable Flywheels
• Side Extension Rolls at both ends (Under Covers)
• Forward and Reverse
• Variable Speed

Please Note: The TUI Double Sided Power Mill will fit on top of the Durston Double Sided Power Mill Stand but not inside the stand as the DRM Double Side Power Mill does. There is a overhang front to back of about 2 inches with the TUI mill as the base is larger than the DRM mill. The stand will still give a sturdy working surface for the heavy power mill. Mounted on a stand or a suitable table, it is important that the stand or table is securely bolted to the floor.

Aspect	Specification
Motor	1.1Kw (1.5HP) 110V Motor
Roll Size	130 mm x 65 mm
Sheet Thickness Capacity	6 mm
Roller Length	130mm
Roller Diameter	65 mm
Wire Grooves	19 sizes ranging from 10 mm to 1 mm
Side Extensions	Half-Rounds: 8, 6, 4, 3, 2 and 1.5 mm
Maximum Wire Capacity	10 mm
Dimensions	33" W x 15" D x 22" H
Net Weight	341 Lbs.
