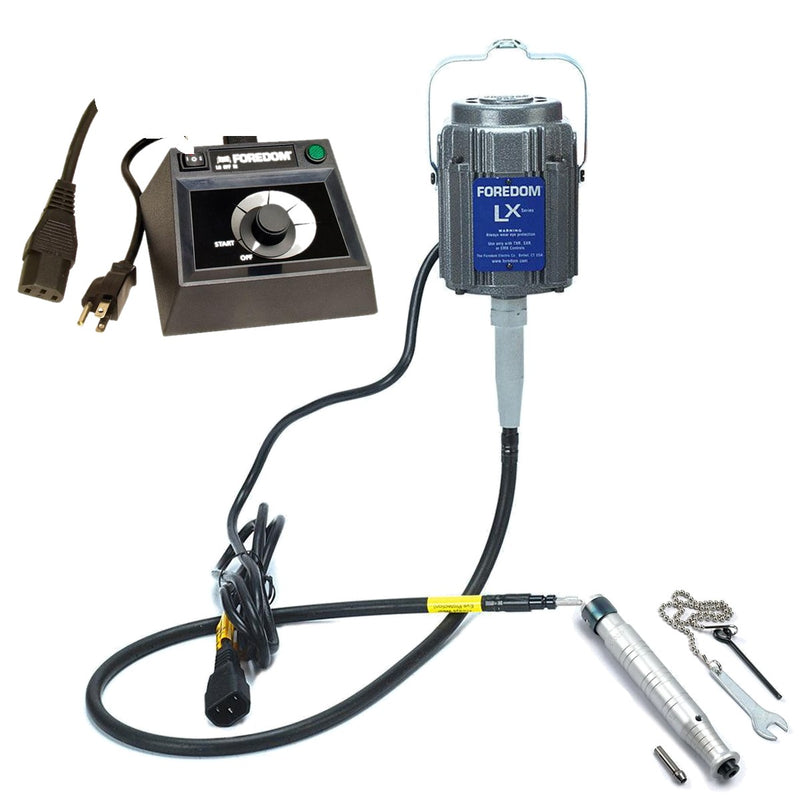

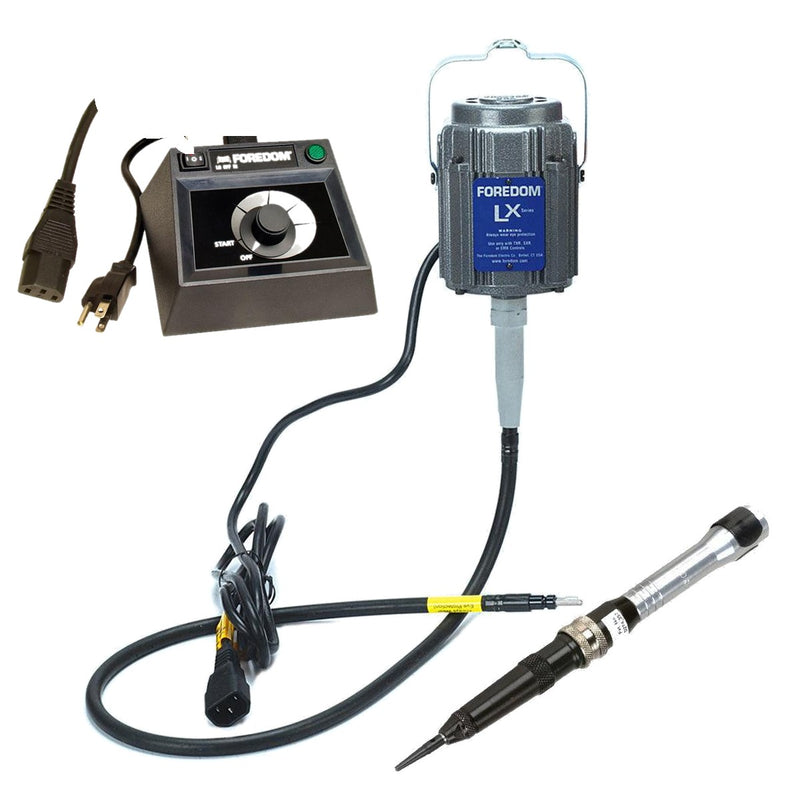

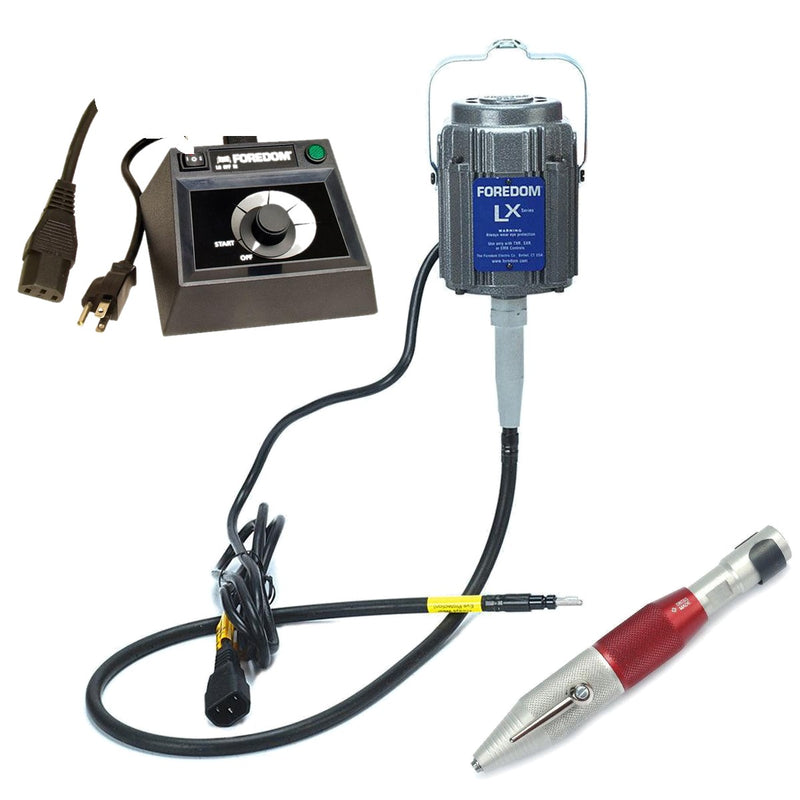

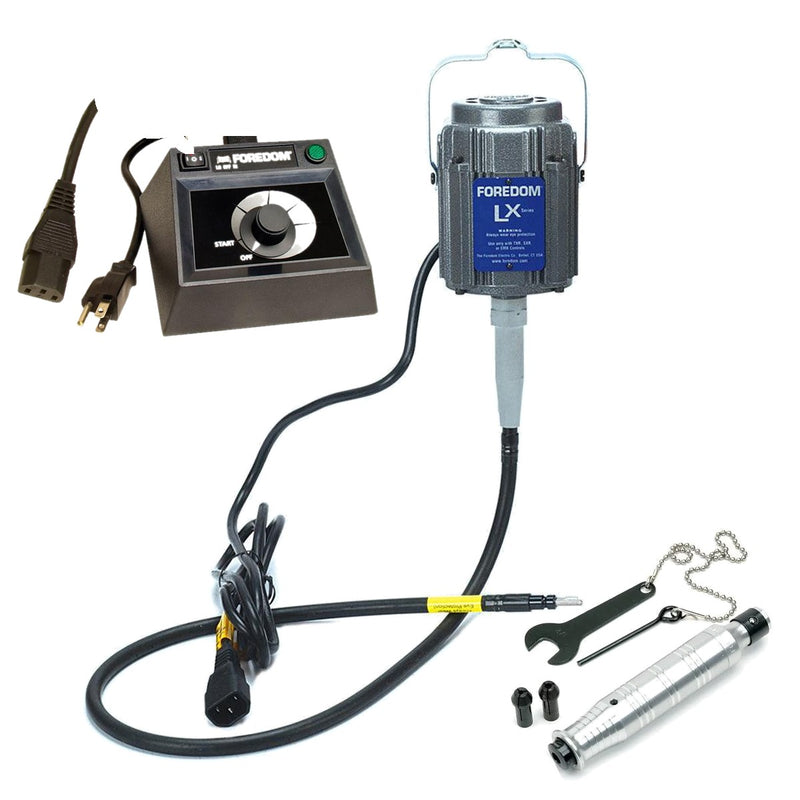

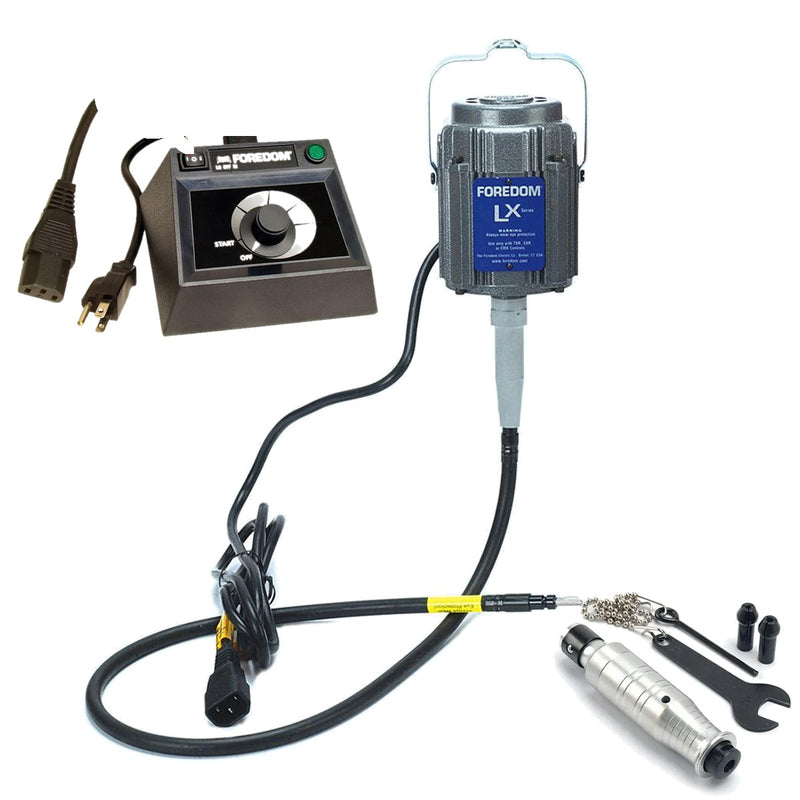

Foredom LX Flex Shaft with C.EMXF-1 Dual Speed Dial Control and Handpiece Choice

Stone setting, hammer work and other low-speed bench operations need a motor that holds torque down where the cut happens instead of running away from you. This kit pairs the 115V Foredom M.LX low-speed, high-torque motor with the Foredom 115V C.EMXF-1 dual speed range table top dial control and your choice of handpiece. The M.LX is a 1/10 HP permanent magnet, ball bearing motor topping out at 5,000 RPM, and it is the current successor to the discontinued EE, R and original L Series Foredom motors.

The C.EMXF-1 dial control sits on the benchtop, so you set your working speed by hand and it holds steady while you work. Its range switch adds a second layer of control: the LO setting caps the top of the dial for delicate setting and finishing where a slip would cost you, and the HI setting opens the motor's full speed for general bench work. The separate motor and handpiece layout keeps the working end light. Fourteen handpieces are available on this kit, from hammer handpieces for setting to quick change and adjustable chuck handpieces. If you already own the handpiece you want to run, pick the No Handpiece option and take the motor and control on their own.

Features

• 1/10 HP permanent magnet, ball bearing motor purpose-built for low-speed, high-torque bench work
• 5,000 RPM maximum speed, the range stone setting and hammer handpiece work call for
• 115V operation on a standard North American outlet
• C.EMXF-1 table top dial control with LO and HI range switch: cap the speed for delicate work or open the full range
• Fourteen handpiece choices, or a No Handpiece option for benches that already have one
• Separate motor and handpiece layout keeps the working end light and maneuverable
• Successor to the discontinued EE, R and original L Series Foredom motors

Available Options

Notes

• The Technique and Badeco options on this kit are the no duplex spring versions, as marked in the Available Options table. A duplex spring version of this same motor and control pair is stocked separately.
• The No Handpiece option is the motor and dial control only. Nothing is supplied to hold a tool.
• This is the 115V configuration. The same motor is also offered with the single-range C.EMX-1 dial control and with the C.TXR-1 foot control.
