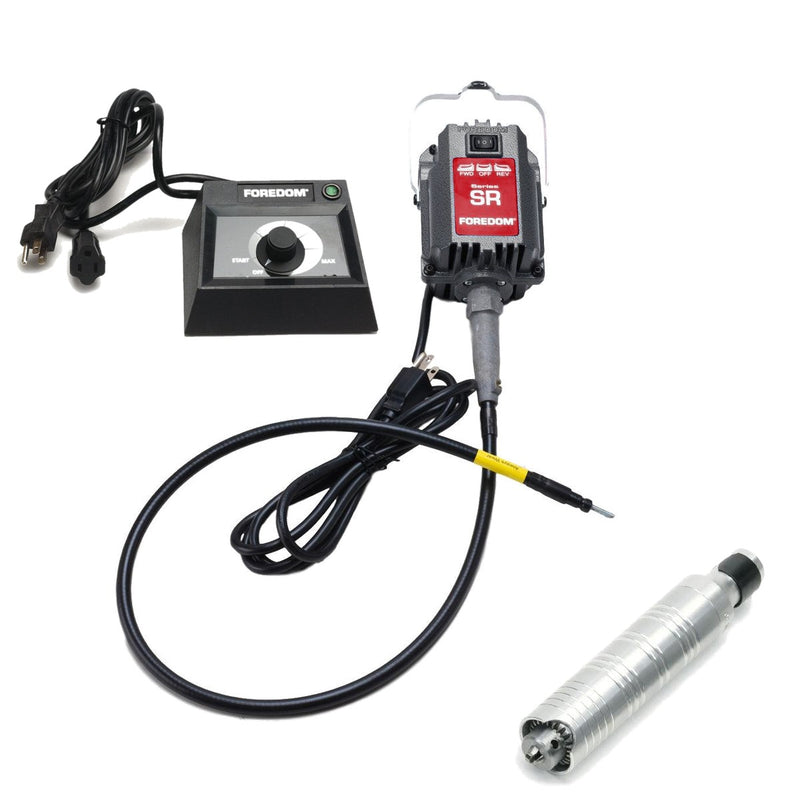

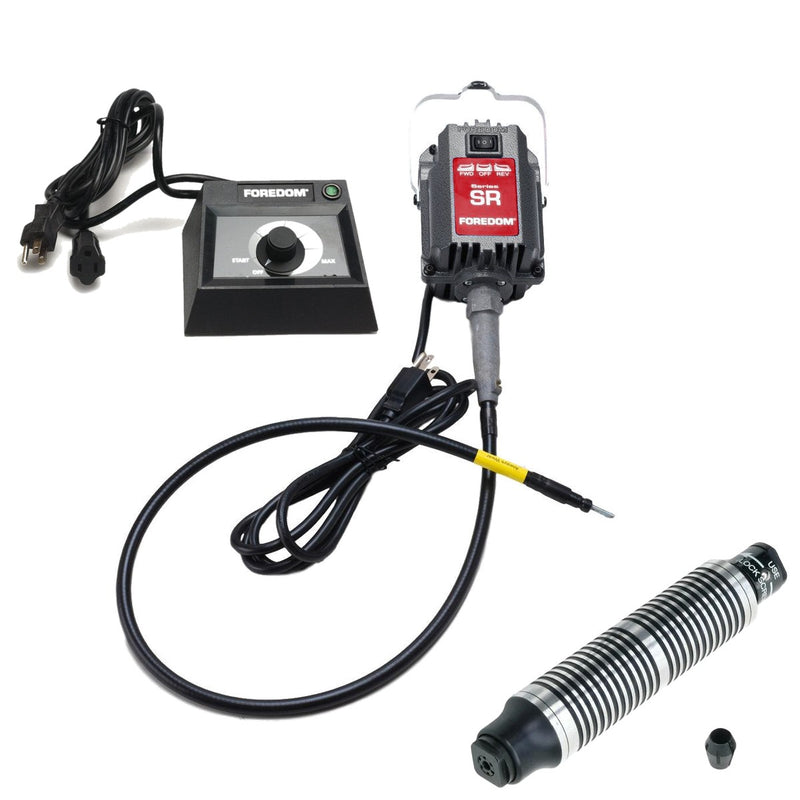

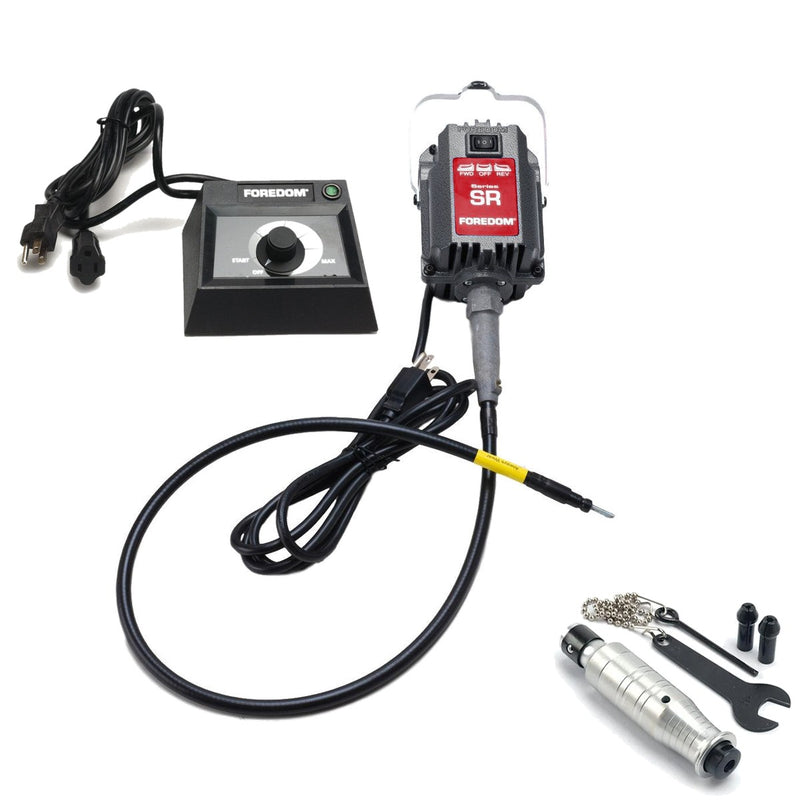

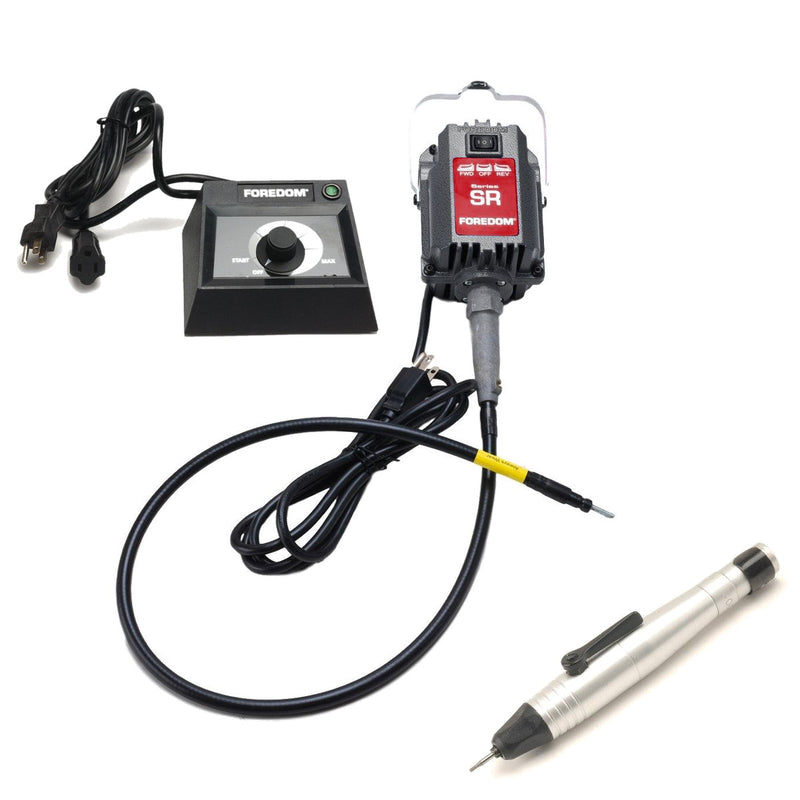

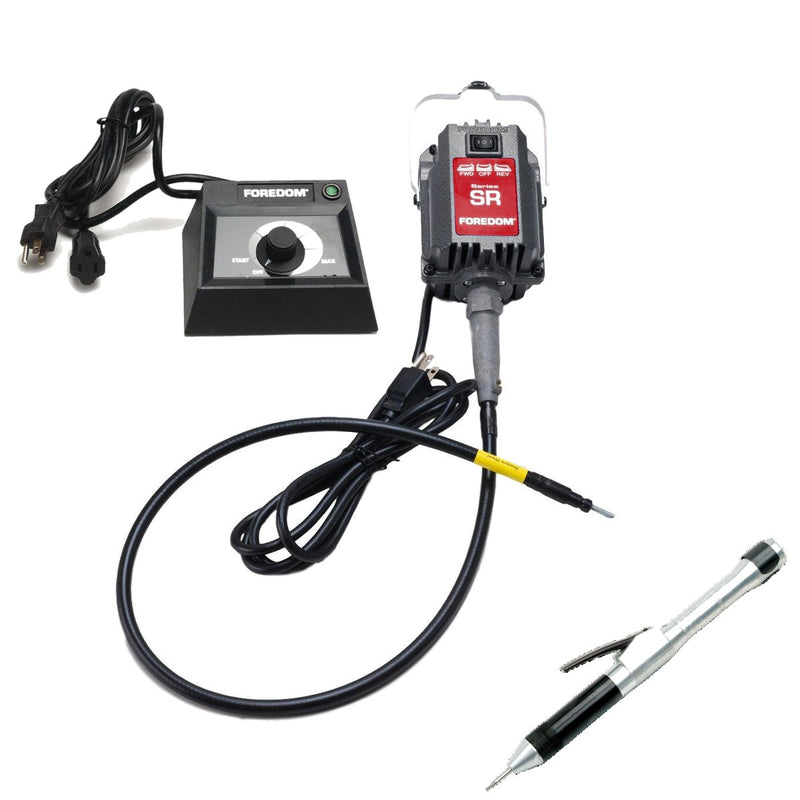

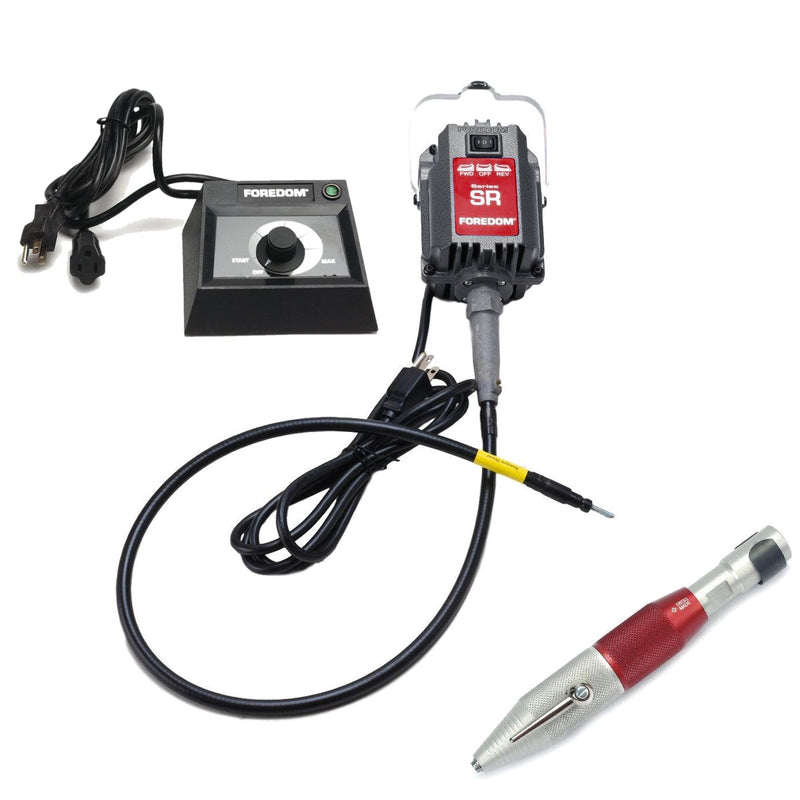

Foredom SR 230V Flex Shaft with C.EMH-2 Dial Control and Handpiece Choice

This is the 230V configuration of the classic Foredom SR hang-up setup with a dial control instead of a pedal: a 1/6 HP reversible M.SR-2 motor, the C.EMH-2 table top dial speed control, and your choice of professional handpiece. The dial sits on the benchtop, so you set a working speed by hand and it holds steady while you work, and the motor's own on/off switch brings it back to that same speed every time. Jewelers, metalsmiths and repair shops get the SR motor's full range of torque for cutting, grinding and polishing without a foot pedal under the bench.

Power and Plug: Adapter Required

This kit runs on 230V only. The C.EMH-2 control's cord ends in a NEMA 5-15 style plug, the familiar North American shape, so connecting it takes a plug adapter matched to your outlet: a NEMA 230V outlet adapter on North American 230V circuits, or the adapter specific to your country's outlets elsewhere. Never plug this kit into a standard 110/120V outlet. The plug will fit, but the voltage is wrong for the motor and control.

Features

• Foredom M.SR-2 Motor: 1/6 HP, up to 18,000 RPM, reversible, 230V
• C.EMH-2 table top dial speed control (230V) sets a steady working speed by hand and returns to it through the motor's on/off switch
• Your choice of ten handpieces, from quick-change to heavy duty, or a motor-and-control-only option if you already own one
• SR Series Motor includes standard key-tip flexible shaft and sheath for quick-disconnect handpieces from Foredom and other manufacturers
• Ball-bearing motor construction delivers consistent power without stalling under normal load
• Reversible motor direction benefits left-handed users, extends abrasive life, aids symmetrical grinding, speeds polishing, and helps back out stuck drill bits
• 230V only; the NEMA 5-15 style plug requires a country-appropriate 230V plug adapter (not included)
• Two-year warranty on every Foredom Motor

Available Options

Notes

• Caution: When using screw-top mandrels with unmounted polishing wheels, the reverse feature may unscrew the mandrel. Use only pre-mounted polishing wheels when operating in reverse.
• The same M.SR-2 motor is also offered with the C.FCH-2 foot control, in North American, European CE and Australia plug versions.
