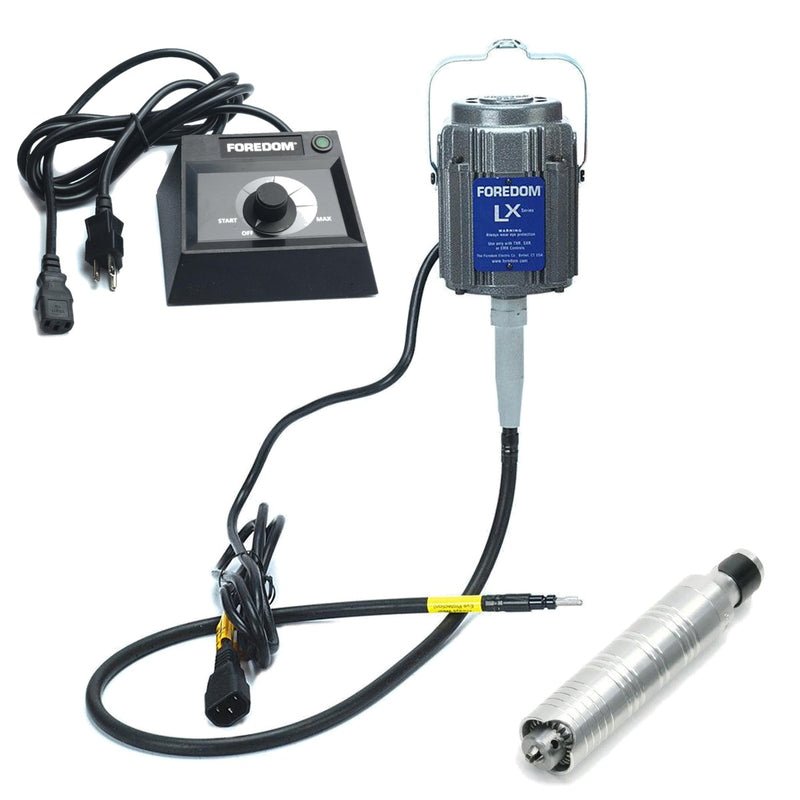

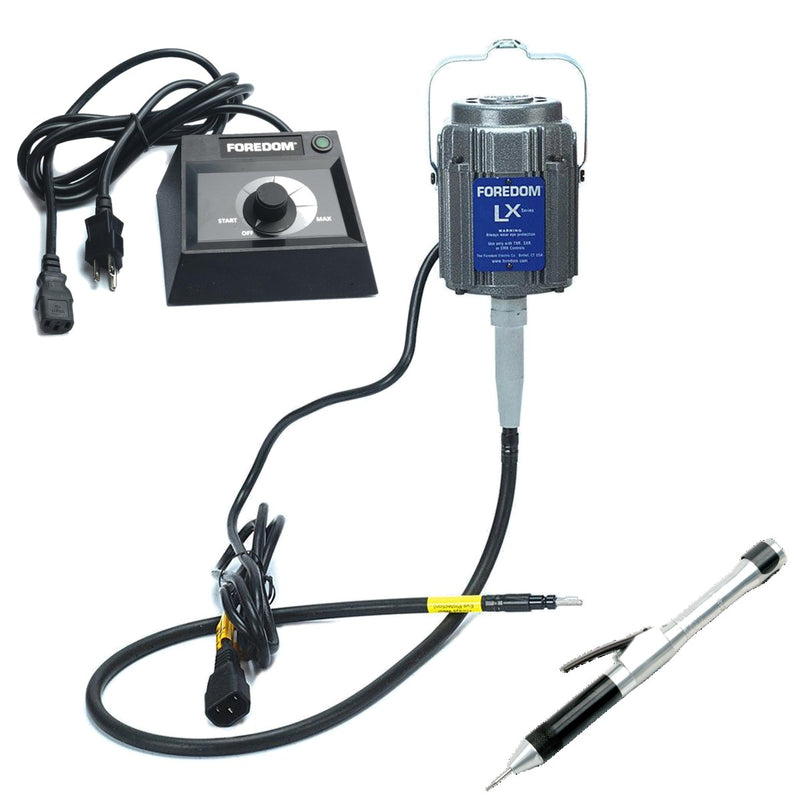

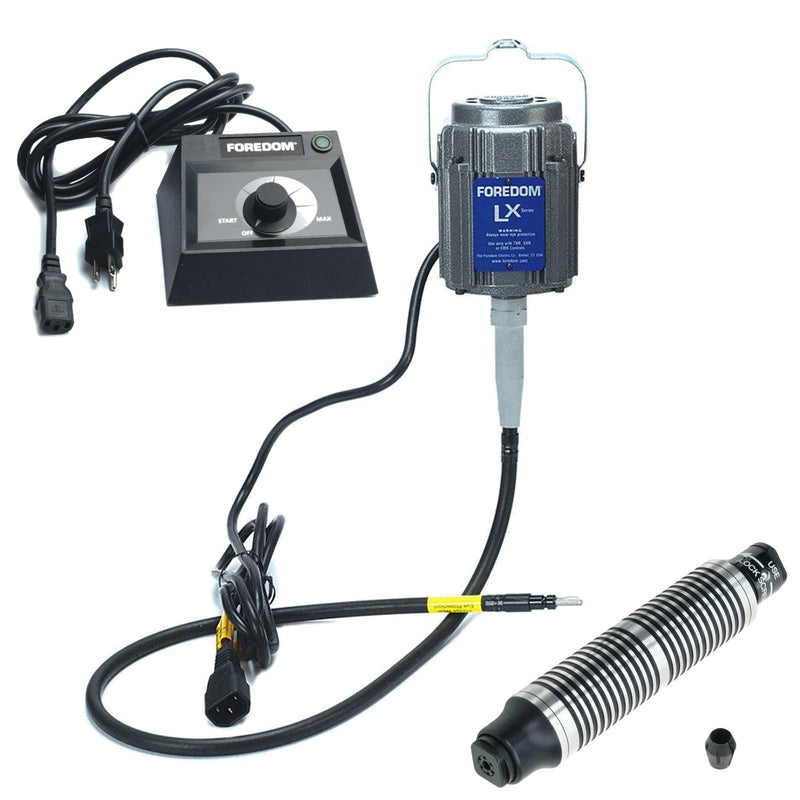

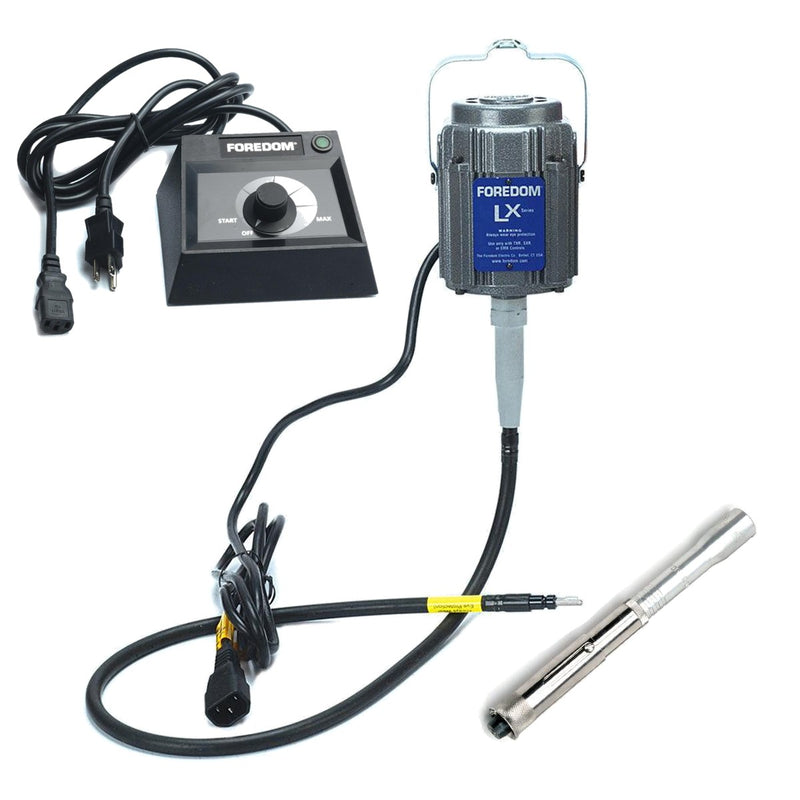

Foredom LX Flex Shaft with C.EMX-1 Table Top Dial Control and Handpiece Choice

Stone setting, hammer work and other low-speed bench operations need a motor that holds torque down where the cut happens instead of running away from you. This kit pairs the 115V Foredom M.LX low-speed, high-torque motor with the Foredom 115V C.EMX-1 table top dial speed control and your choice of handpiece. The M.LX is a 1/10 HP permanent magnet, ball bearing motor topping out at 5,000 RPM, and it is the current successor to the discontinued EE, R and original L Series Foredom motors.

The C.EMX-1 dial control sits on the benchtop, so you set your working speed by hand and it holds steady while you work, which suits repetitive setting and finishing where a fixed speed matters more than a pedal. The separate motor and handpiece layout keeps the working end light. Fourteen handpieces are available on this kit, from hammer handpieces for setting to quick change and adjustable chuck handpieces for general bench work.

Features

• 1/10 HP permanent magnet, ball bearing motor purpose-built for low-speed, high-torque bench work
• 5,000 RPM maximum speed, the range stone setting and hammer handpiece work call for
• 115V operation on a standard North American outlet
• C.EMX-1 table top dial control lets you set a steady working speed by hand and hold it while you work
• Fourteen handpiece choices, from hammer and taper head handpieces to quick change and adjustable chuck
• Separate motor and handpiece layout keeps the working end light and maneuverable
• Successor to the discontinued EE, R and original L Series Foredom motors

Available Options

Notes

• The Technique and Badeco options on this kit are the no duplex spring versions, as marked in the Available Options table. If you run any duplex spring handpiece on this motor, keep the speed low and the spring straighter than 45 degrees: high revs are the most common cause of duplex spring failure, and duplex springs carry no warranty.
• This is the 115V configuration with the table top dial control. The same motor is also offered with the C.TXR-1 foot control, and a 230V version with the C.EMX-2 dial control is stocked separately.
