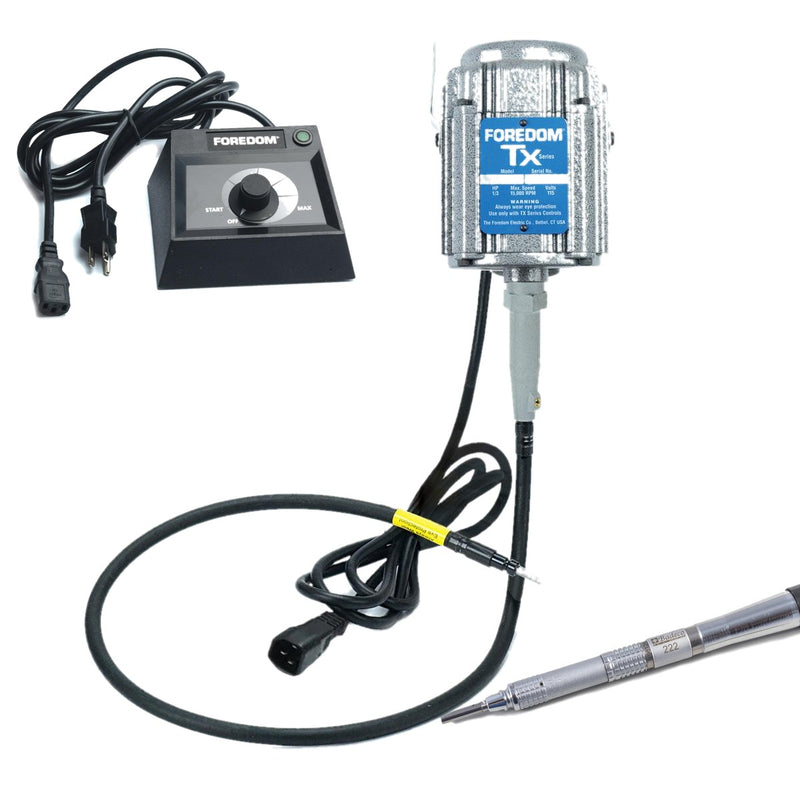

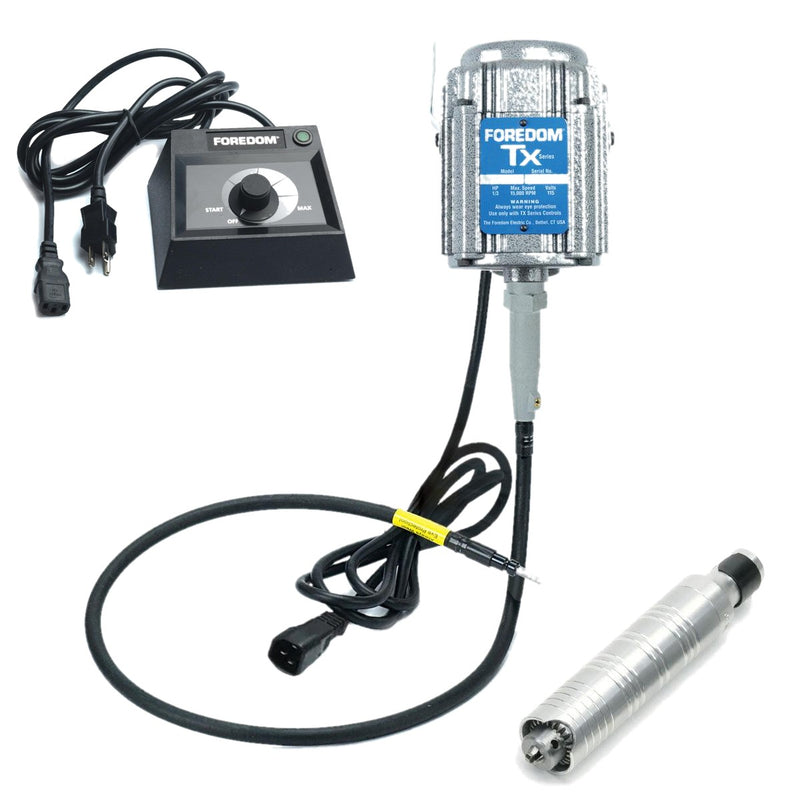

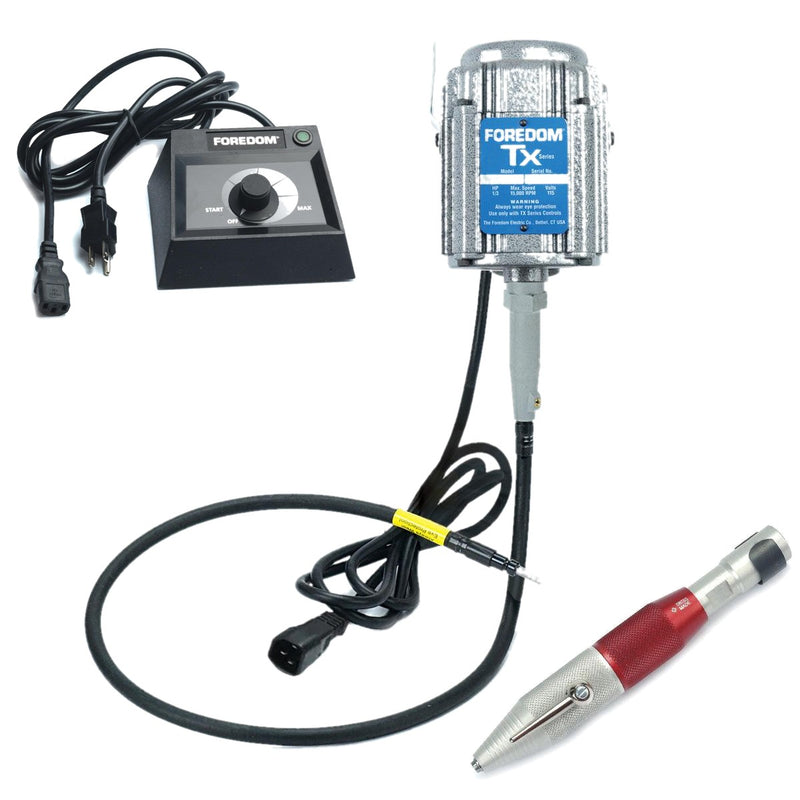

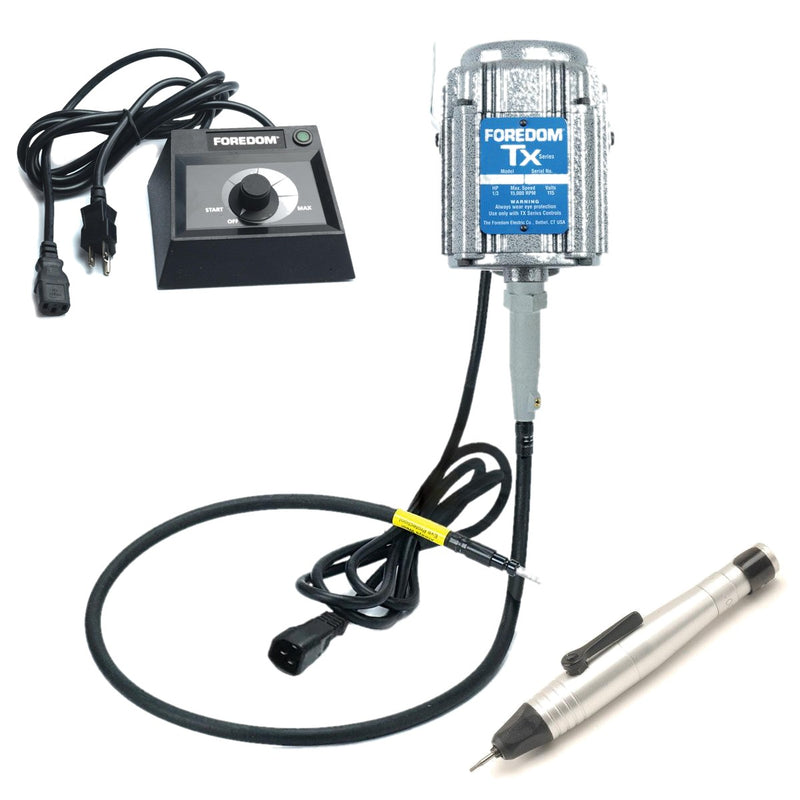

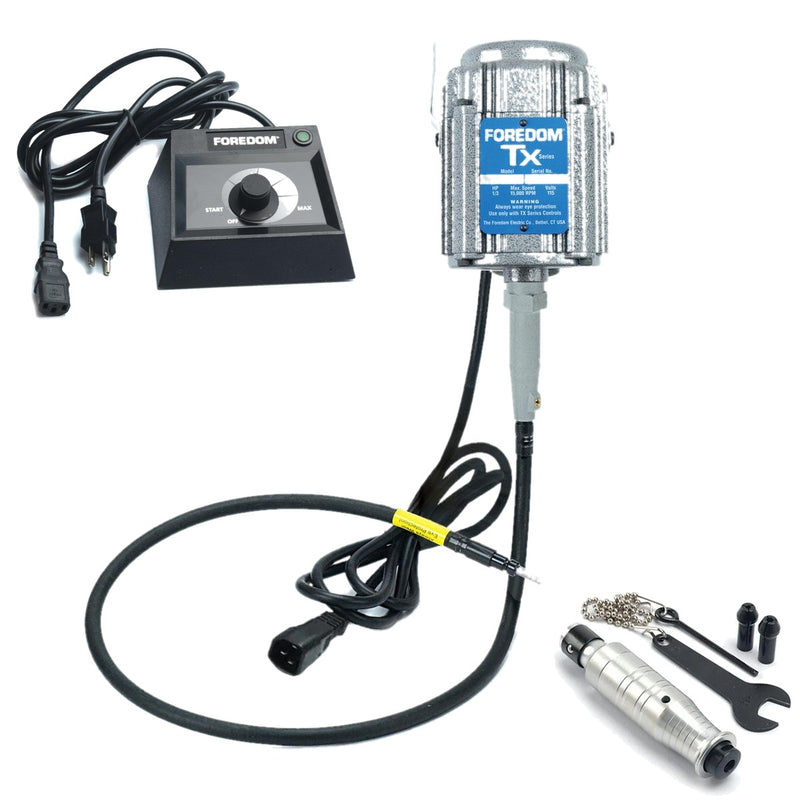

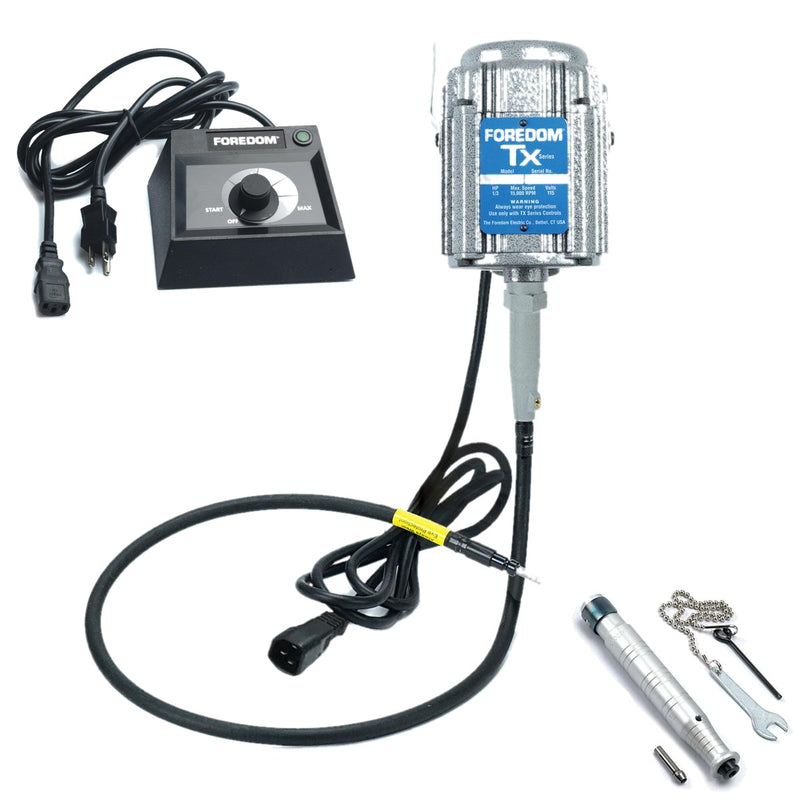

Foredom TX Flex Shaft with C.EMX-1 Table Top Dial Control and Handpiece Choice

Cutting, drilling and bur work at the bench need a motor that keeps pulling under load rather than stalling the moment the tool bites. This kit pairs the Foredom M.TX, the most powerful motor in the Foredom line, with the 115V C.EMX-1 table top dial speed control and your choice of handpiece. The M.TX is a 1/3 HP permanent magnet DC motor: rare earth magnets replace the wound fields of Foredom's universal motors, so it delivers more torque at low speeds and throughout its range, with smooth acceleration up to 15,000 RPM. It replaces the discontinued Foredom Series R.

The C.EMX-1 dial control sits on the benchtop, so you set your working speed by hand and it holds steady while you work, which suits repetitive cutting and finishing where a fixed speed matters more than a pedal. The separate motor and handpiece layout keeps the working end light. Fourteen handpieces are available on this kit, from quick change and adjustable chuck handpieces for general bench work to hammer handpieces for setting.

Features

• 1/3 HP permanent magnet DC motor with rare earth magnets, Foredom's most powerful flex shaft motor
• High torque throughout the entire speed range for more control under load, with smooth acceleration up to 15,000 RPM
• Reversible, ball bearing construction for durability and precision
• C.EMX-1 table top dial control lets you set a steady working speed by hand and hold it while you work

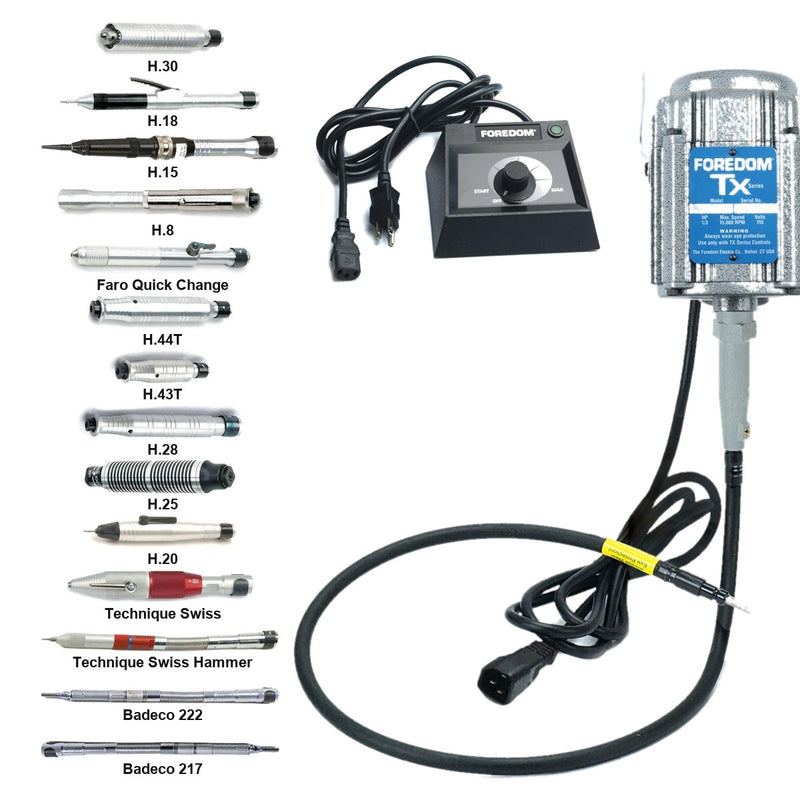

• Fourteen handpiece choices, from quick change and adjustable chuck to taper head and hammer handpieces, or a motor-and-control-only option if you already own one
• Standard 39 inch key-tip flexible shaft and sheath for quick-disconnect handpieces
• 115V operation on a standard North American outlet; the TX motor is not made in a 230V version
• Two-year warranty on every Foredom Motor

Available Options

Notes

• Important: The M.TX must always be run through a TX-compatible speed control such as the C.EMX-1 in this kit. Never plug the motor directly into a wall outlet.
• If you choose a hammer handpiece, keep the dial low; hammer handpieces do their best work at moderate speed, and any duplex spring should stay straighter than 45 degrees.
• This is the 115V configuration with the table top dial control. The same motor is also offered with the C.TXR-1 foot control.
