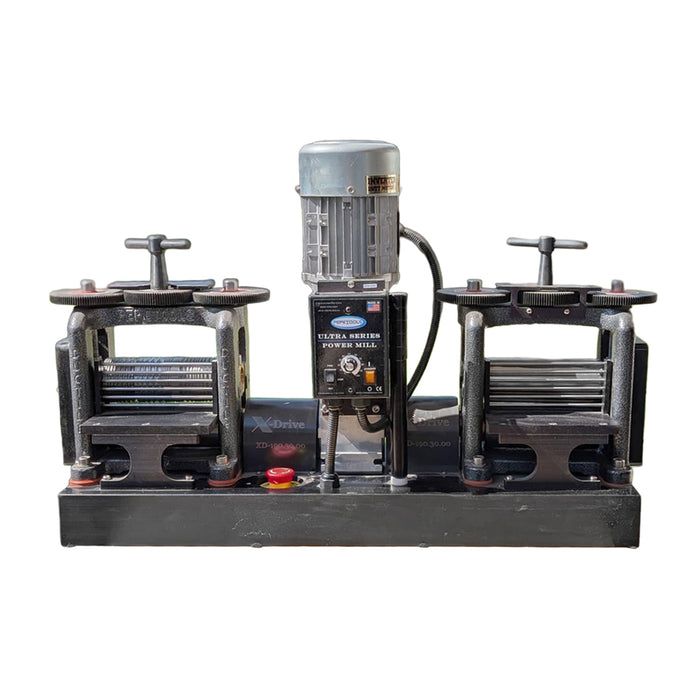

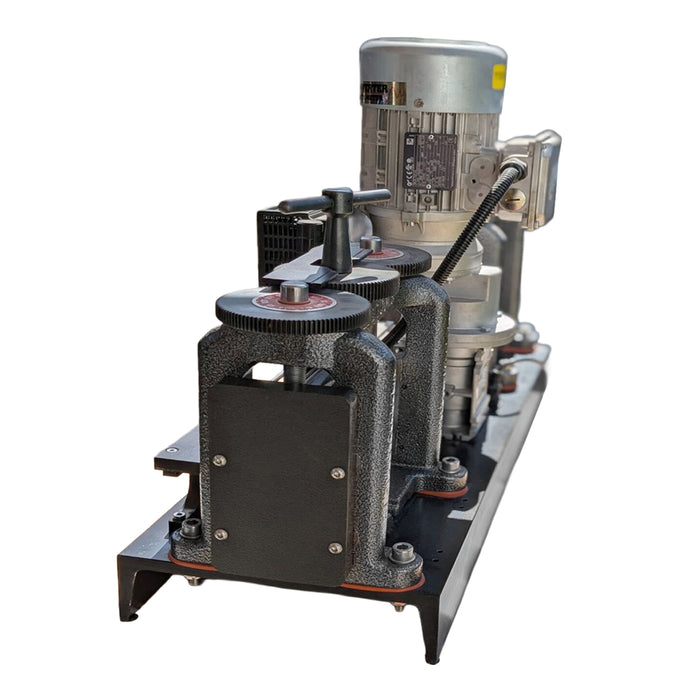

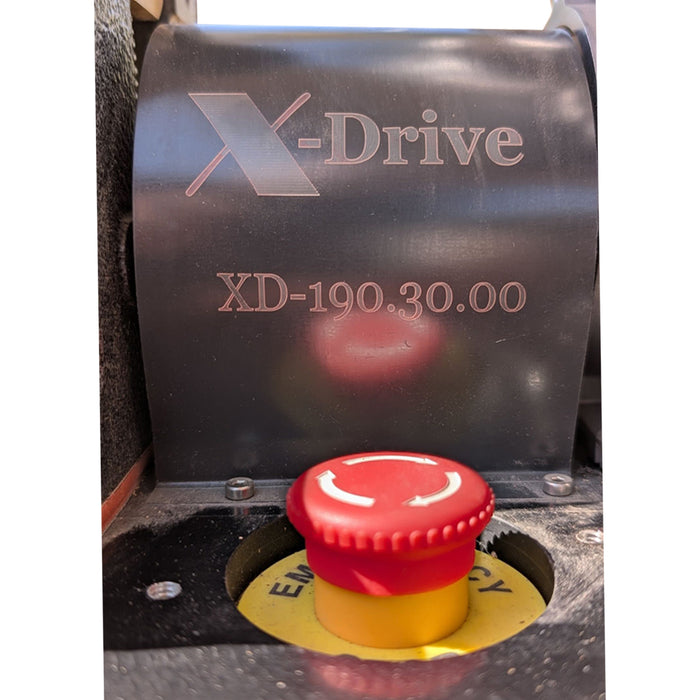

Closeout Used XD190.30.00-120V 160mm Double Combination X-Drive Power Rolling Mill

This is a USED unit, please look carefully at the images provided.

Only 1 Available!

Full 160mm Flat

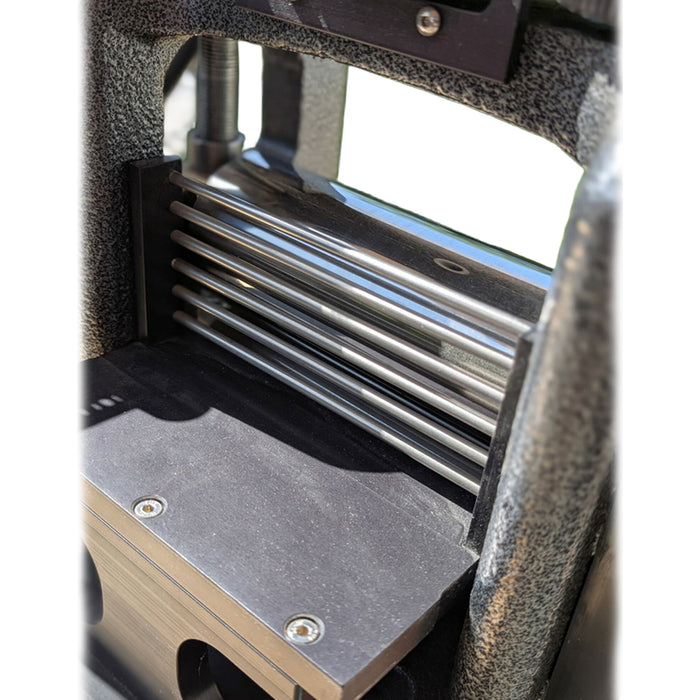

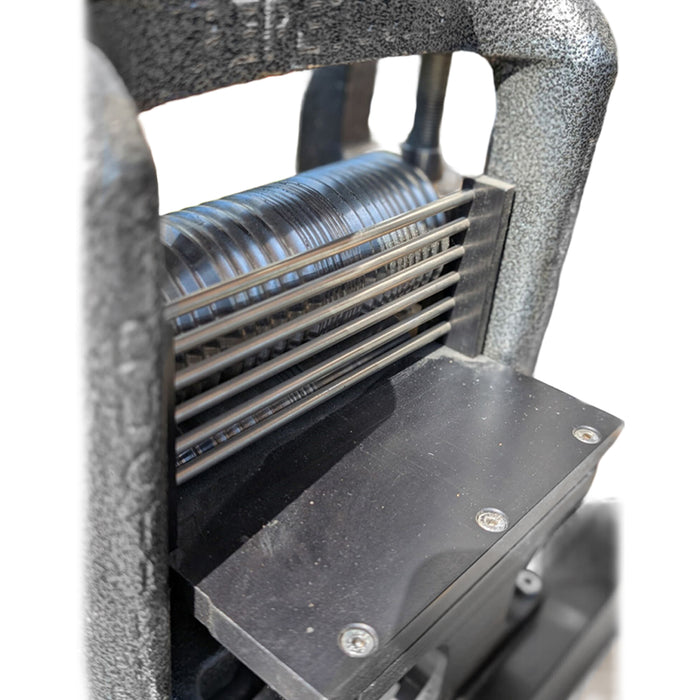

Full 160mm Special All Wire*

*This power mill has the special wire side.  This is a full 160 mm of wire profiles including traditional square wire, low profile wire, half round wire and comfort fit profile.

Combines 2 amazing mills in 1.  The ultimate power rolling mill for shop use. Made in the USA.

Features:

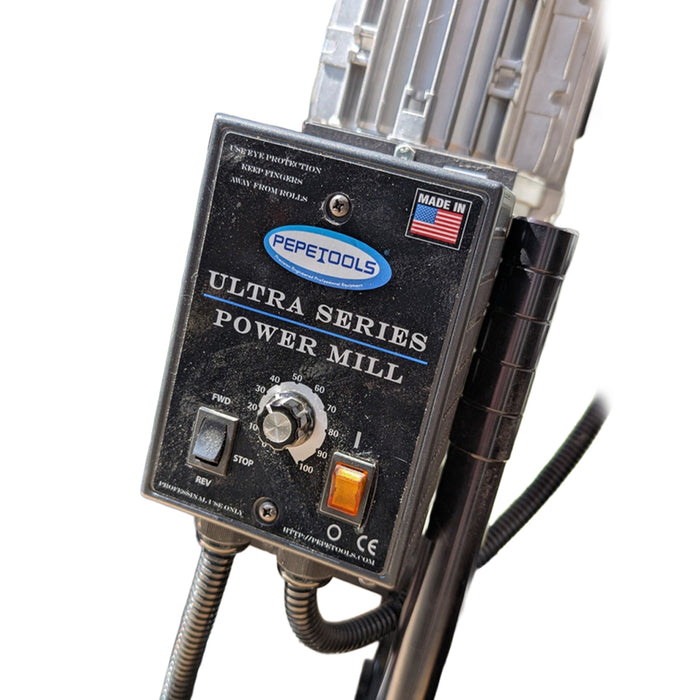

• Forward-Stop-Reverse Modes
• Holds Torque at Zero Speed in Stop Mode
• Smooth motor torque
• Flux Vector Compensation with Static Auto-Tune
• Ride-Through momentary power loss
• Regeneration Protection eliminates tripping
• Overload Protection
• Under voltage and Over voltage Protection

AC Drive System

Variable Frequency Drive

A digital Hybrid AC Drive with Analog Interface

Vented NEMA 1/IP 20 Enclosures

• Industrial Grade-Heavy Duty Worm Gearbox Rated at 12,000 hours continuous duty
• Nominal output torque: 2880 Inch-Lb. (33 Kg/m)
• Output speed 0-12 RPM
• Production Output -MAX 90in/min 7.5Ft/minu2.3m/minute
