Durston 1074 Power Mill-DRM-130 Double Sided-1-1/2HP-110V

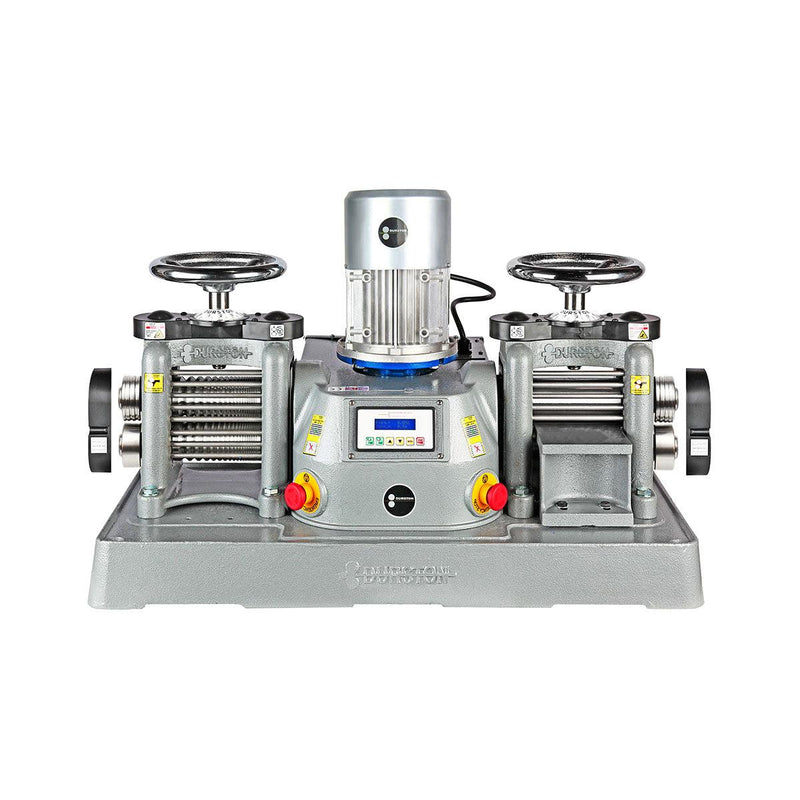

Double Sided DRM-130 Powered Rolling Mill-Full 130mm flat on one side, the other side 130mm wire.

Durston's DRM series of power rolling mills are the top-of-the-line power mills from Durston.  They differ from the TUI line by having cast iron bases and gearbox covers for optimal strength and rigidity.

Durston is the world leader in precision rolling mills, with over 50 years of experience producing rolling mills primarily for the jewelry industry.

Durston’s latest generation of power mills are the highest quality and most durable power rolling mills on the market, featuring attractive design and robust components. All have cast iron bases, cast iron gearbox cover with powerful motors and of course the standard one piece cast iron mill frame incorporating high quality steel rolls which run in heavy duty roller bearings.

The 130mm series Durston bench top power mills feature a powerful 1.5 hp (1.1kw) 110 volt motor matched to a high precision epi-cyclic variable speed gearbox that provide the highest efficiency possible in a space saving vertical motor mount design. Both components are built for production shop use. All the power mills include the new safety features of the emergency stop button, safety bars at front and rear and guards covering the extension rollers at the end of the mills.

Easy to use control featuring forward and reverse buttons with additional buttons to easily increase or decrease roll speed. Speeds can be controlled from 5 to 30 rpm in forward and reverse.

The 130mm series power rolling mills have a maximum operating thickness of 6mm.

Key Features:

• Variable Speed 5-30 rpm
• Powerful enough for continuous operation
• Near silent operation
• Cast Iron frame and gearbox cover
• Easy to read calibrated disc giving exact roll measurement
• Swedish roll steel treated to RC 63/64 hardness
• 1 year factory warranty
• 110V US Version



Aspect	Specification
Motor	1.1Kw (1.5HP) 110V Motor
Roll Size	130 mm x 65 mm
Sheet Thickness Capacity	6 mm
Roller Type	Combination
Roller Length	130mm
Roller Diameter	65 mm
Wire Grooves	19 square groove sizes from 10 mm to 1 mm
Side Extensions	Extension roller "D" grooves: right-hand side, 4mm, 3mm, 2mm and 1.5mm; left-hand side, 8mm, 6mm and 3.5mm
Maximum Wire Capacity	10 mm
Dimensions	32-5/8" x 15-3/8" x 21-1/4" H (830mm x 390mm x 540mm)
Net Weight	396 Lbs. (180kg)
