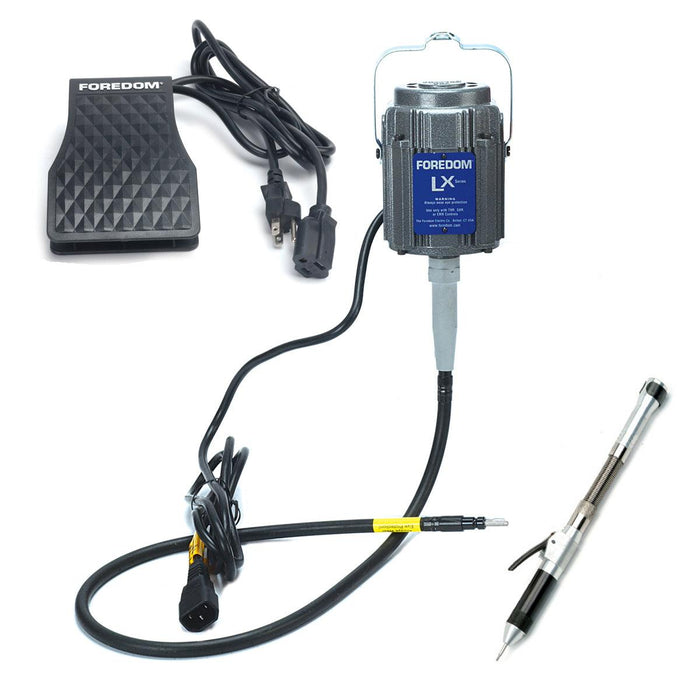

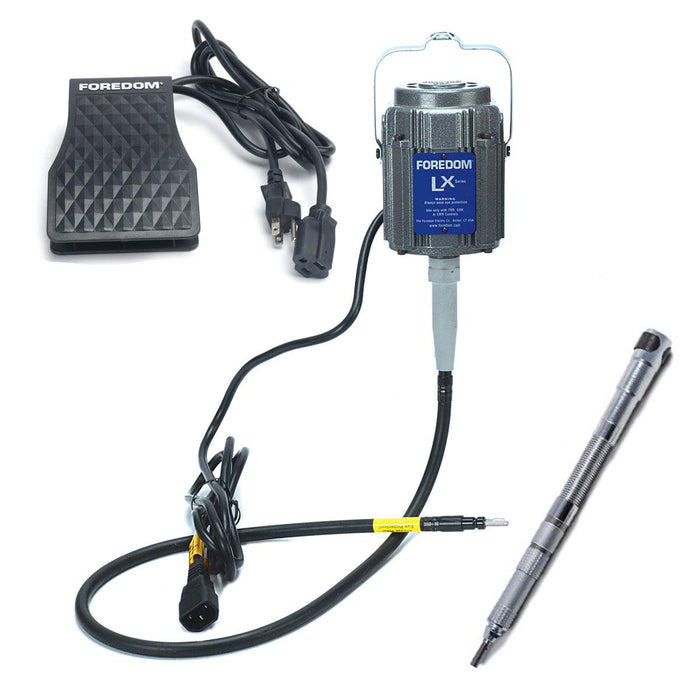

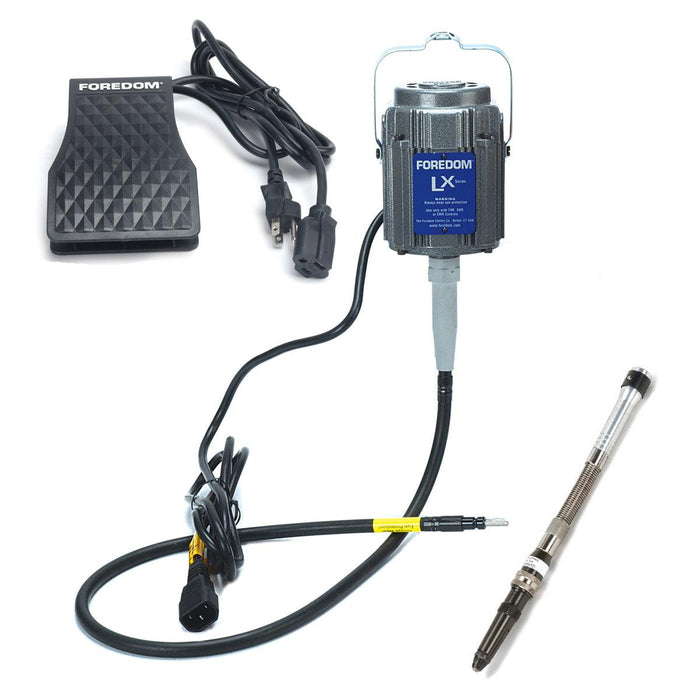

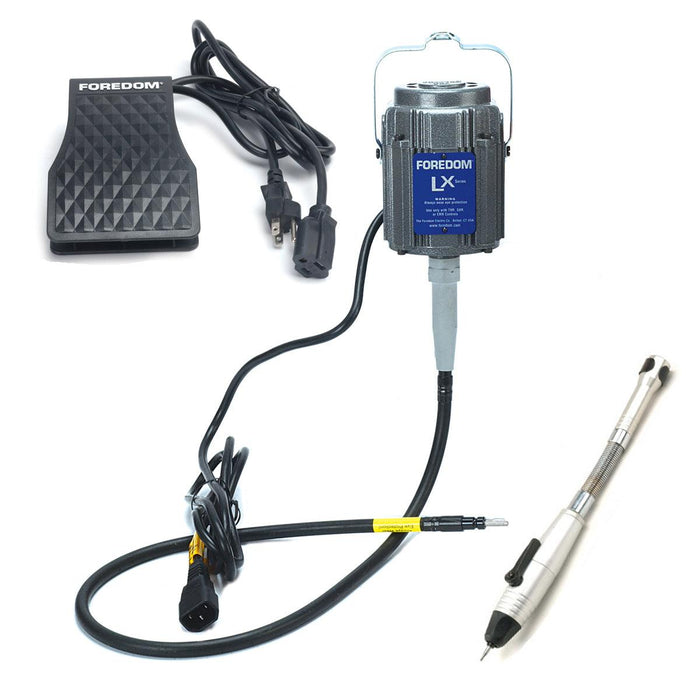

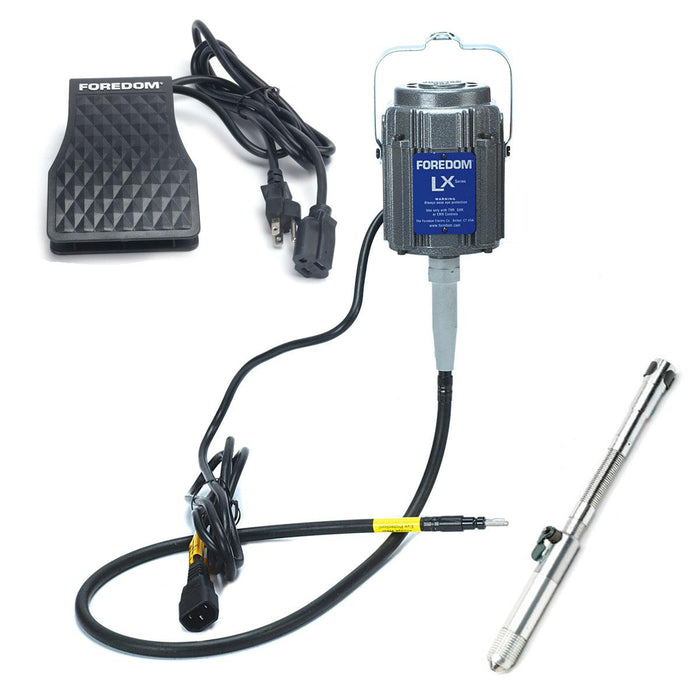

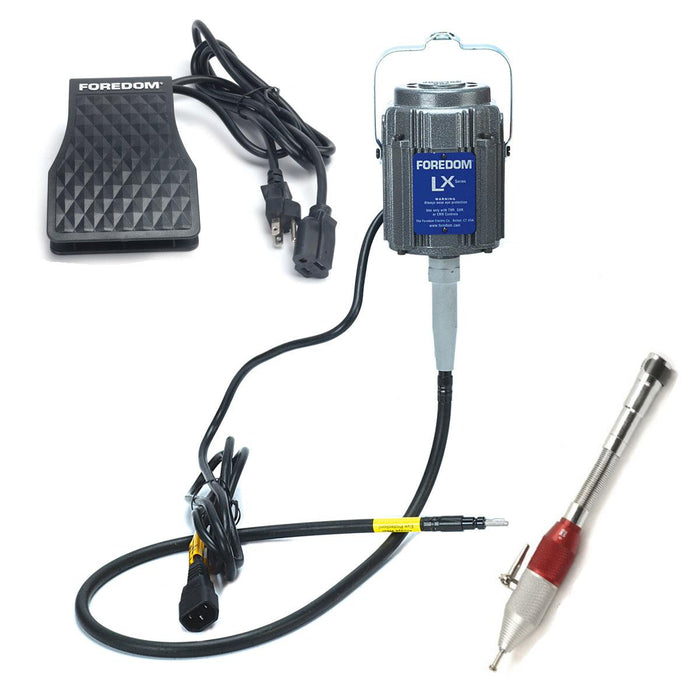

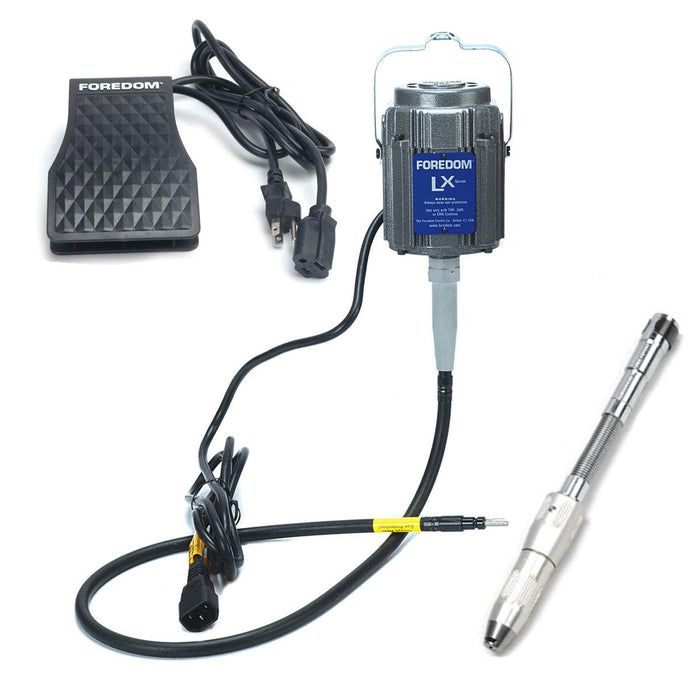

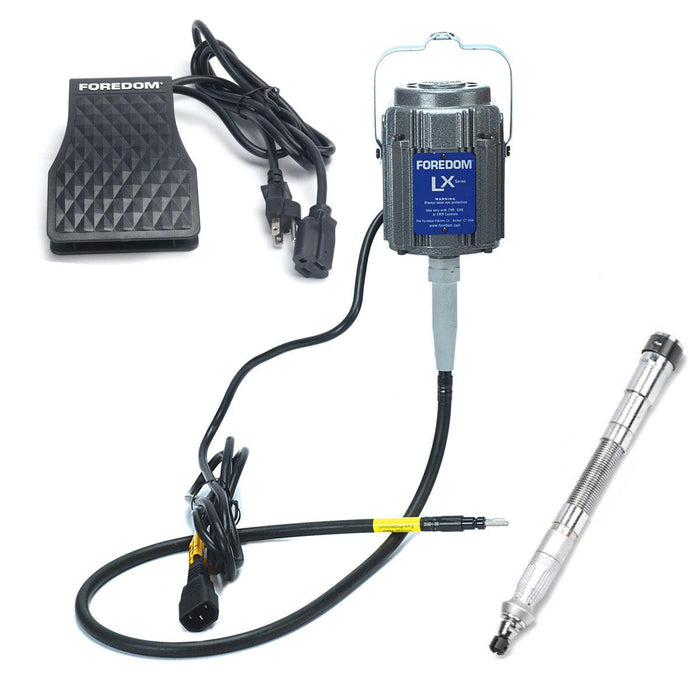

This flex shaft kit combines an LX low-speed motor, an electronic foot control, and your choice of duplex spring handpiece for controlled stone setting and precision bench work. As you ease into the pedal, the handpiece comes up to speed smoothly, letting you feel each cut rather than fight it.
Features
- Complete flex shaft system configured for jewelry stone setting and other detailed bench applications.
- Foot-operated variable speed control keeps both hands free to manage tools and workpieces.
- Separate motor and handpiece layout keeps the working end light and maneuverable at the bench.
- Duplex spring handpiece options provide added flexibility and reach at the work surface.
- Motor maintains steady power under load to help prevent stalling during cutting, drilling, or hammering tasks.
- Speed range is well suited to low-RPM techniques that help extend duplex spring service life.
Specifications
| Specification |
Value |
| System Type |
Flex shaft motor kit with foot control and duplex spring handpiece options |
| Motor Series |
LX low-speed, high-torque flex shaft motor |
| Motor Type |
Permanent magnet, ball bearing flex shaft motor |
| Motor Power |
1/10 HP |
| Maximum Speed |
5,000 RPM |
| Motor Voltage |
115 V |
| Speed Control Model |
C.TXR foot-operated variable speed control |
| Speed Control Housing |
Plastic |
| Recommended Use |
Jewelry stone setting and other low-speed, high-control operations |
| Brand |
Foredom |

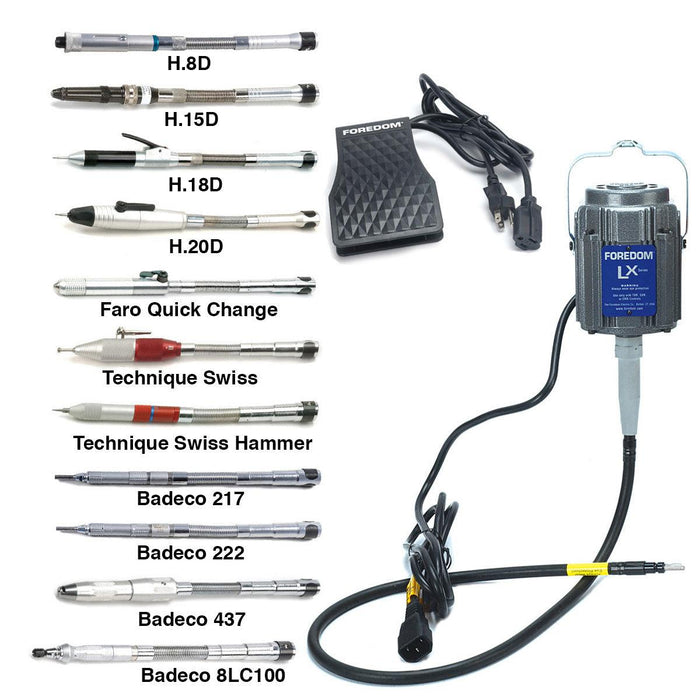

Available Options
| Part # |
Handpiece |
| 134.159-229 |
H.18D |
| 134.159-234 |
H.8D |
| 134.159-235 |
H.15D |
| 134.159-238 |
Faro Quick Change |
| 134.159-671 |
H.20D |
| 134.159-699 |
Technique Swiss |
| 134.159-732 |
Technique Swiss Hammer |
| 134.159-747 |
Badeco 437 |
| 134.159-748 |
Badeco 8LC100 |
| 134.159-751 |
Badeco 222 |
| 134.159-751217 |
Badeco 217 |
What's Included
| Item |
Qty |
| LX 1/10 HP permanent magnet low-speed, high-torque motor, 115 V |
1 |
| C.TXR 115 V plastic housing foot-operated variable speed control |
1 |
| One duplex spring style handpiece (based on option selected) |
1 |
Notes
Free Shipping in the Continental USA. If ordered with non–free-shipping items, you will not be charged shipping on this item, but you will have shipping charges for the other items and your order will ship via ground standard shipping.
Using a duplex spring type handpiece at moderate speeds helps the duplex spring last longer before it requires service.
