Foredom Industrial Flex Shaft Kit

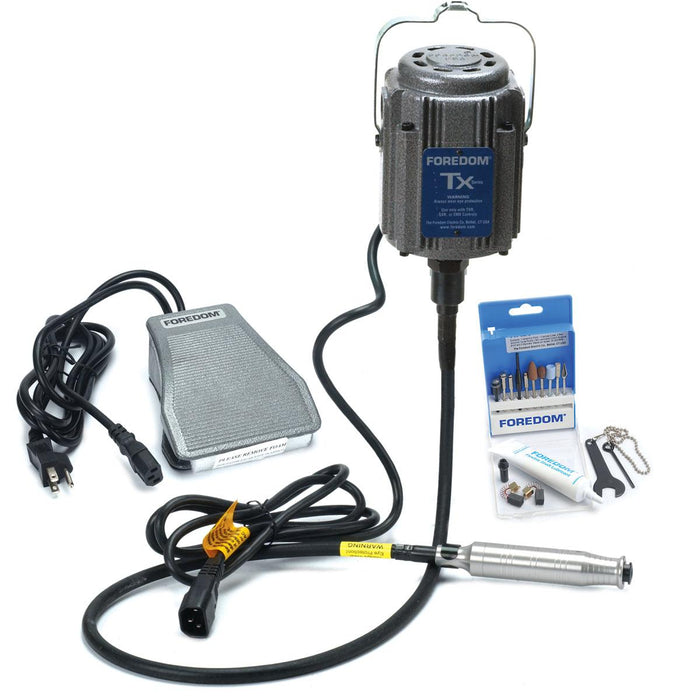

This Kit Includes:
-M.TXH Hi-Torque Motor with Sheath & Industrial Heavy Duty H Square Drive 63-3/4" Length Shaft
-C.SXR Cast Iron Foot Operated Speed Control
-Heavy Duty H.44HT Handpiece (Use H Square Drive Handpieces Only-H.25H, H.28H, H.44HT (included) and H.30H)
-AKHK25 Accessory Kit - 10 pieces
TXH motors are NOT available in 230V.
This is the kit to buy if you want to use a flex shaft for heavy duty grinding, like porting on motorcycle and car heads or finishing large sculptures.
M.TXH Flex Shaft Motor
: A heavy-duty version of Foredom's most powerful motor. The permanent-magnet
M.TXH features the latest in flex shaft technology and delivers more torque throughout the entire speed range than any other flex shaft motor. It is rated at 1/3 hp and achieves a top speed of 15,000 rpm. The motor comes supplied with Foredom's S-10823 63-3/4" long* square drive inner shaft (Otto Frei 134.362B)
and Foredom's S-10801TX 63" long heavy duty protective sheath (Otto Frei 134.372B).
Square drive shaft and heavy duty protective sheaths can ONLY work with Foredom's four square drive handpieces-the H.25H, H.30H, H.44HT and the H.28H. The M.TXH Flex Shaft Motor has Foredom's 2 year factory warranty
C.SXR Speed Control
: is cast iron, painted with a gray powdercoat, and the extra weight provides greater stability. This foot operated speed control has special electronics and is for exclusive use with the M.TXH and other permanent magnet motors. It also carries a 2 year warranty
: This special square drive, collet style handpiece is for exclusive use with our Series TXH, SRH and LXH heavy duty flex shafts. It comes with 3/32", 1/8" and 1/4" collets. The tapered design allows for close and safe work. This handpiece is not
a member of the Foredom system of "quick disconnect" handpieces that require Key Tip style inner shafts.
The standard length Key Tip shaft found on most Foredom's is 39" in length, part number S-93. Other Key Tip shafts available are S-93-43 (46-3/8" in length), S-93-66 (66" in length). You can switch to any matching shaft and sheath combination with your Foredom SR, TX & LX based motor as you wish. Key tip shafts work with key tip handpieces only. Square drive shafts work with square drive handpieces only.
