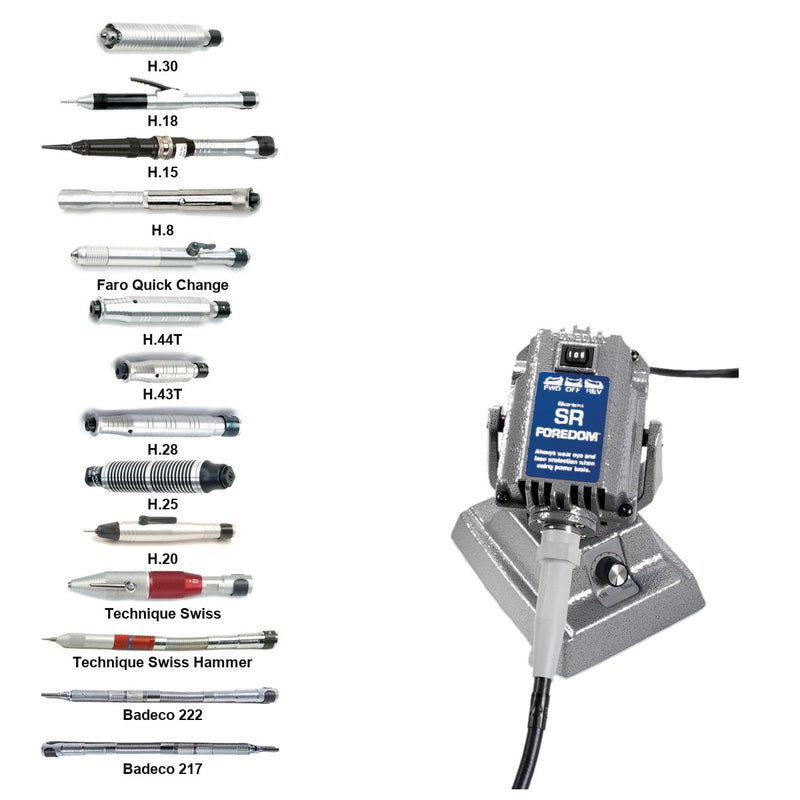

Foredom M.SRM bench motor with built-in dial control and choice of fourteen handpieces
Foredom M.SRM bench motor with built-in dial control, and H.30 handpiece
Foredom M.SRM bench motor with built-in dial control, and H.44T handpiece
Foredom M.SRM bench motor with built-in dial control, and H.28 handpiece

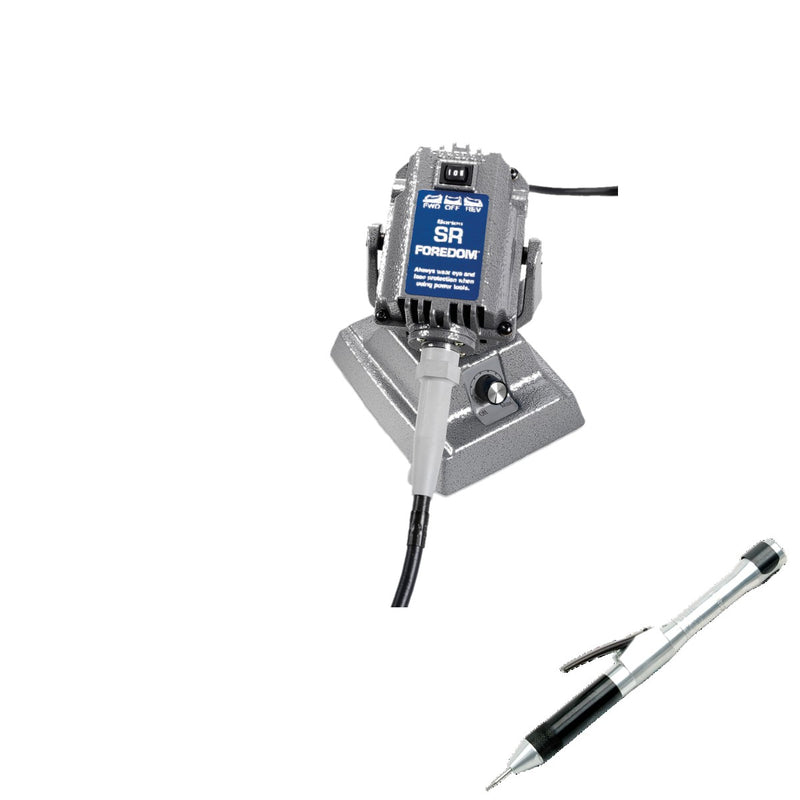

Foredom M.SRM bench motor with built-in dial control, and H.18 handpiece

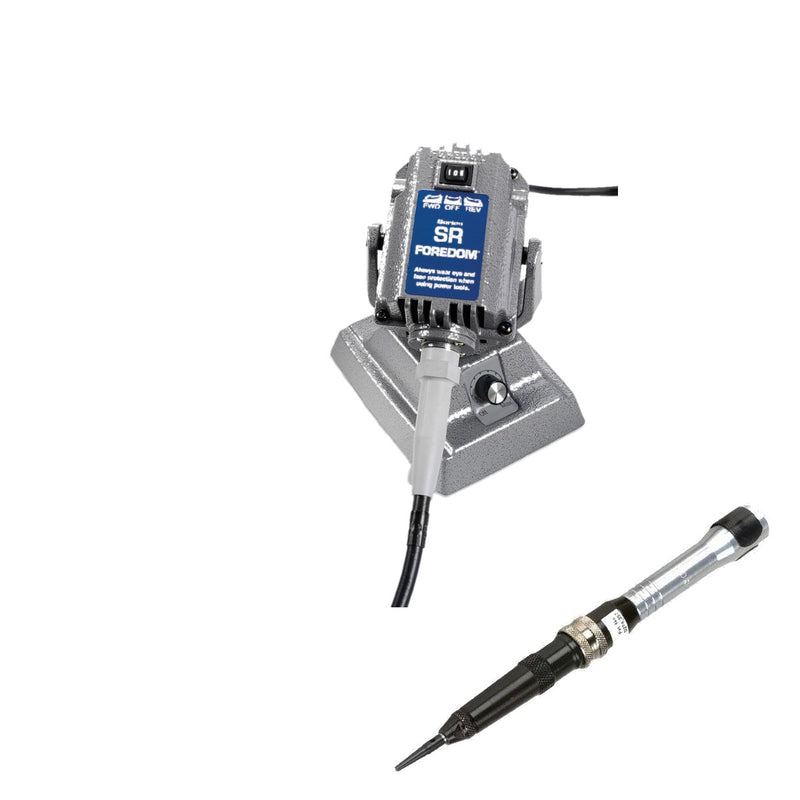

Foredom M.SRM bench motor with built-in dial control, and H.15 handpiece
Foredom M.SRM bench motor with built-in dial control, and H.8 handpiece

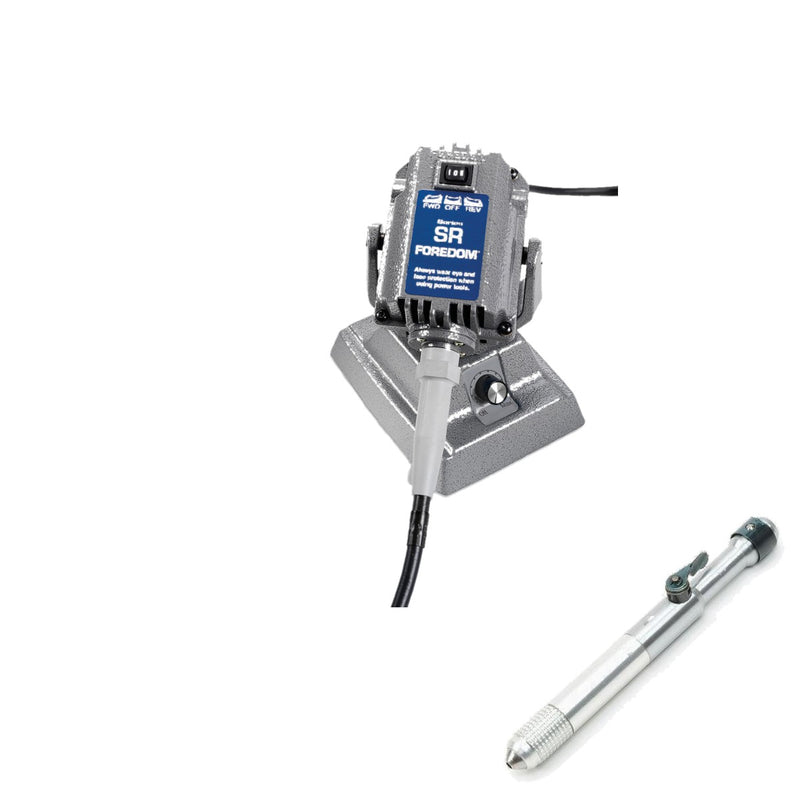

Foredom M.SRM bench motor with built-in dial control, and Faro Quick Change handpiece
Foredom M.SRM bench motor with built-in dial control, and H.43T handpiece

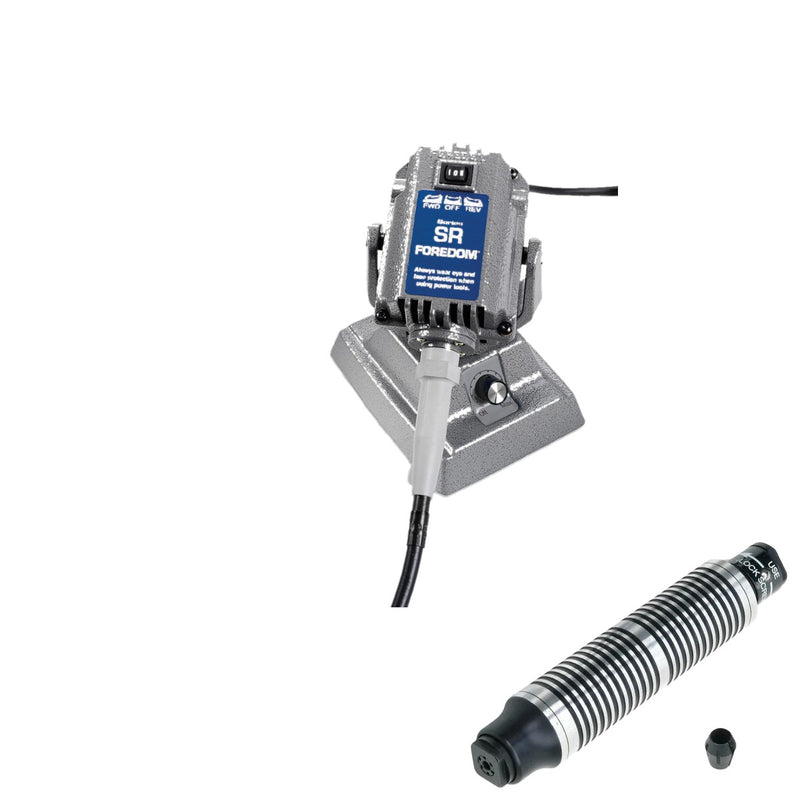

Foredom M.SRM bench motor with built-in dial control, and H.25 handpiece

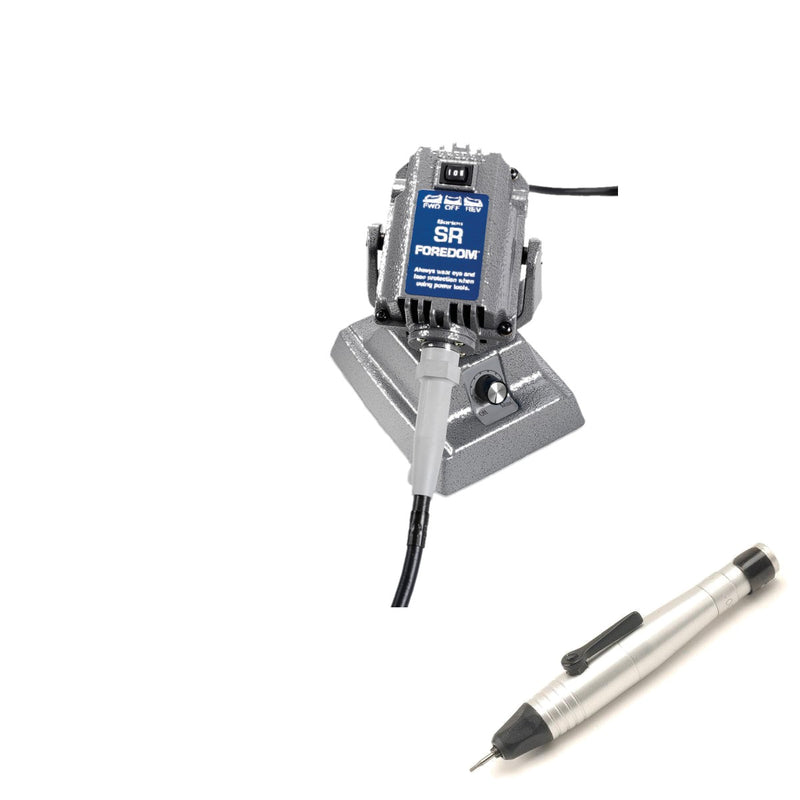

Foredom M.SRM bench motor with built-in dial control, and H.20 handpiece

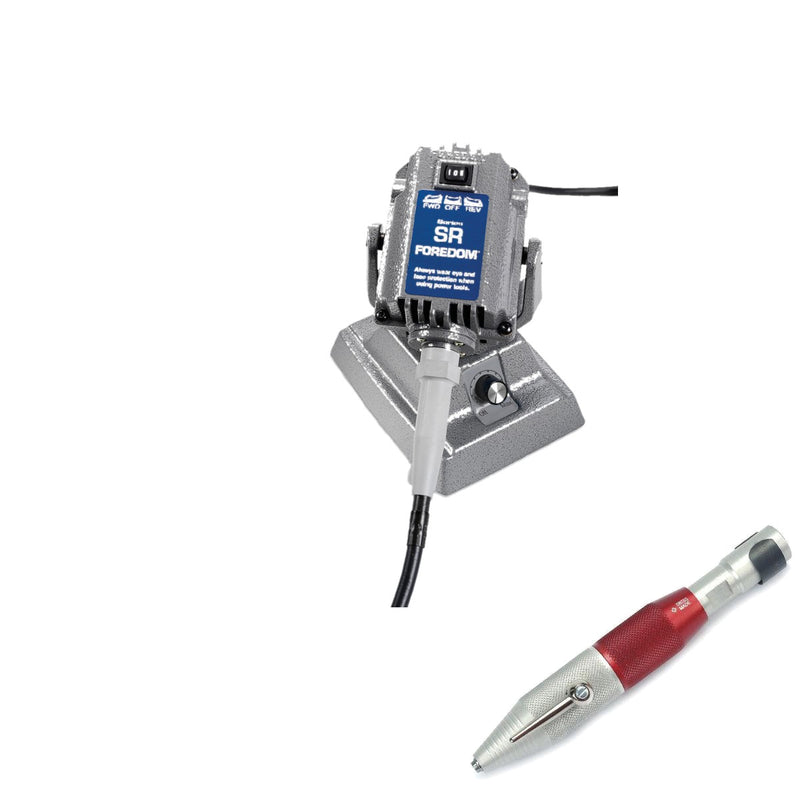

Foredom M.SRM bench motor with built-in dial control, and Technique Swiss handpiece
Foredom M.SRM bench motor with built-in dial control, and Technique Swiss Hammer handpiece
Foredom M.SRM bench motor with built-in dial control, and Badeco 222 handpiece
Foredom M.SRM bench motor with built-in dial control, and Badeco 217 handpiece

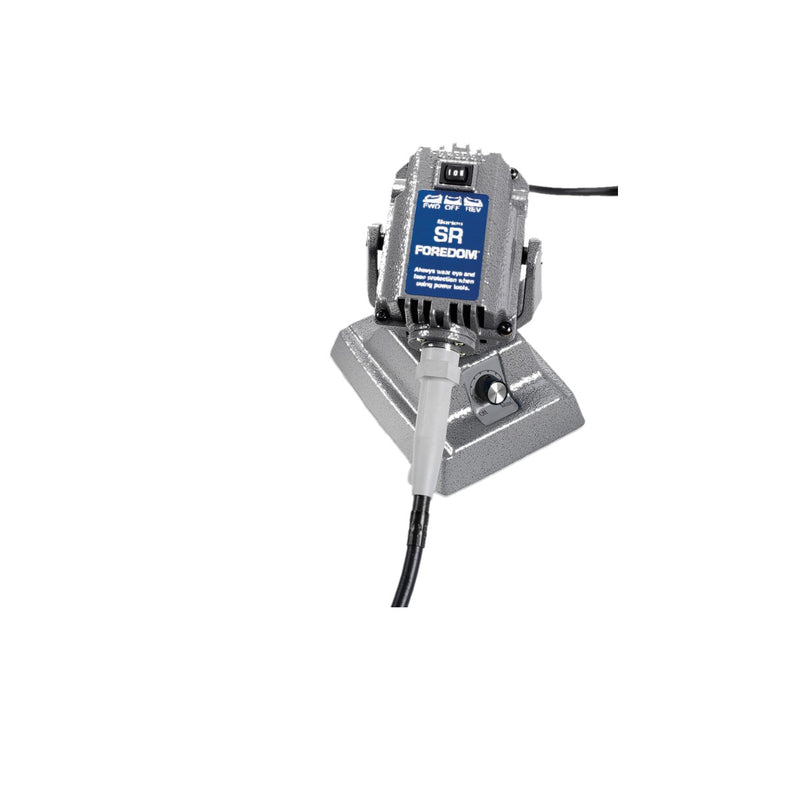

Foredom M.SRM bench motor with built-in dial control, motor only, no handpiece
Foredom M.SRM bench motor with built-in dial control and choice of fourteen handpieces
Foredom M.SRM bench motor with built-in dial control, and H.30 handpiece
Foredom M.SRM bench motor with built-in dial control, and H.44T handpiece
Foredom M.SRM bench motor with built-in dial control, and H.28 handpiece
Foredom M.SRM bench motor with built-in dial control, and H.18 handpiece
Foredom M.SRM bench motor with built-in dial control, and H.15 handpiece
Foredom M.SRM bench motor with built-in dial control, and H.8 handpiece
Foredom M.SRM bench motor with built-in dial control, and Faro Quick Change handpiece
Foredom M.SRM bench motor with built-in dial control, and H.43T handpiece
Foredom M.SRM bench motor with built-in dial control, and H.25 handpiece
Foredom M.SRM bench motor with built-in dial control, and H.20 handpiece
Foredom M.SRM bench motor with built-in dial control, and Technique Swiss handpiece
Foredom M.SRM bench motor with built-in dial control, and Technique Swiss Hammer handpiece
Foredom M.SRM bench motor with built-in dial control, and Badeco 222 handpiece
Foredom M.SRM bench motor with built-in dial control, and Badeco 217 handpiece
Foredom M.SRM bench motor with built-in dial control, motor only, no handpiece
von Foredom

Foredom M.SRM SR Bench Motor with Built-In Speed Control and Handpiece Choice

Part # K.8305 In Stock Weight -- lb / -- g
Limited time deal -15%
$452.72
List Price: $532.62
Select Handpiece: H.30

Description

110V / 120V supply only. This unit is built for standard North American household current (110V / 120V). Running it on 220V / 240V through a voltage converter-transformer voids any warranty the equipment may have. Confirm your outlet voltage before powering on. Learn more

The Foredom M.SRM is the bench-mounted version of the SR flex shaft motor. Instead of hanging from a hanger with a separate control, the motor sits on a cast iron base with the dial speed control built in, so it goes anywhere on the workbench and there is nothing to mount or plug together. You set the working speed on the dial and use the motor's own on/off switch to power up, which brings you back to that same speed time after time. This kit pairs the 115V M.SRM with your choice of professional handpiece, from quick-change and adjustable chuck models for general bench work to hammer handpieces for setting.

The SR motor is the workhorse of the Foredom line: 1/6 HP, ball bearing, reversible, and rated to 18,000 RPM, with a standard 39 inch key-tip flexible shaft that accepts quick-disconnect handpieces from Foredom and other makers. If you choose a hammer handpiece, keep the dial low; hammer handpieces and duplex springs do their best work at moderate speed.

Features

  • 1/6 HP ball bearing SR motor, reversible, up to 18,000 RPM
  • Dial speed control built into the cast iron base, with a separate on/off switch that returns the motor to the set speed
  • Bench mounted: no hanger, no separate foot or dial control to place
  • Fourteen handpiece choices, from quick-change and adjustable chuck to taper head and hammer handpieces, or a motor-only option if you already own one
  • Standard 39 inch key-tip flexible shaft and sheath for quick-disconnect handpieces
  • Reversible motor direction benefits left-handed users, extends abrasive life, aids symmetrical grinding, speeds polishing, and helps back out stuck drill bits
  • 115V operation on a standard North American outlet
  • Two-year warranty on every Foredom Motor

Available Options

Part # Handpiece Handpiece Detail
K.8305 H.30 Foredom H.30 adjustable chuck handpiece
K.8307 H.44T Foredom H.44T taper head handpiece
K.8328 H.28 Foredom H.28 slimline collet handpiece
M.SRM-134.228 H.18 Foredom H.18 quick-change handpiece
M.SRM-134.231 H.15 Foredom H.15 hammer handpiece
M.SRM-134.233 H.8 Foredom H.8 slim handpiece
M.SRM-134.237 Faro Quick Change Faro H.10 quick change handpiece
M.SRM-134.258 H.43T Foredom H.43T short taper head handpiece
M.SRM-134.260 H.25 Foredom H.25 heavy duty handpiece
M.SRM-134.670 H.20 Foredom H.20 quick-change handpiece
M.SRM-134.700 Technique Swiss Technique quick change handpiece, no duplex spring
M.SRM-134.733 Technique Swiss Hammer Technique Swiss made hammer handpiece, no duplex spring
M.SRM-134.811 Badeco 222 Badeco 222 hammer handpiece, no duplex spring
M.SRM-134.811-217 Badeco 217 Badeco 217 hammer handpiece, no duplex spring
M.SRM-NOHP No Handpiece Bench motor only

Notes

  • Caution: When using screw-top mandrels with unmounted polishing wheels, the reverse feature may unscrew the mandrel. Use only pre-mounted polishing wheels when operating in reverse.
  • This is a bench motor with its own control built in. The hang-up M.SR motor with a separate foot or dial control is stocked separately.

Specifications

Brand
Foredom
Part #
K.8305
Type
Rotary Tools
Voltage
110V / 120V
Motor Series
SR flex shaft motor, bench style
Motor Power
1/6 HP
Maximum Speed
Up to 18,000 RPM (set by the built-in dial)
Rotation
Forward and reverse
Bearing Type
Ball bearing motor
Voltage
115V
Plug Style
Standard North American NEMA 5-15
Speed Control
Dial control built into the cast iron base, with separate on/off switch
Mounting
Bench mount on a cast iron base; no hanger needed
Flexible Shaft
Standard 39 inch key-tip shaft and sheath

What's Included

What's Included

Everything in the box.

Component Description
Bench Motor Foredom M.SRM bench motor, 1/6 HP, reversible, up to 18,000 RPM (115V), with the dial speed control built into its cast iron base, plus standard 39 inch key-tip flexible shaft and sheath
Handpiece Foredom H.30 handpiece
California Prop 65 Warning California Prop 65 Warning:
This product can expose you to beryllium, nickel, and lead, which are known to cause cancer and reproductive harm. www.P65warnings.ca.gov.
