New engravers are challenged with understanding and consistently producing accurate sharpening results. Professionals want to save time during the sharpening process to increase profitable moments spent at the bench.

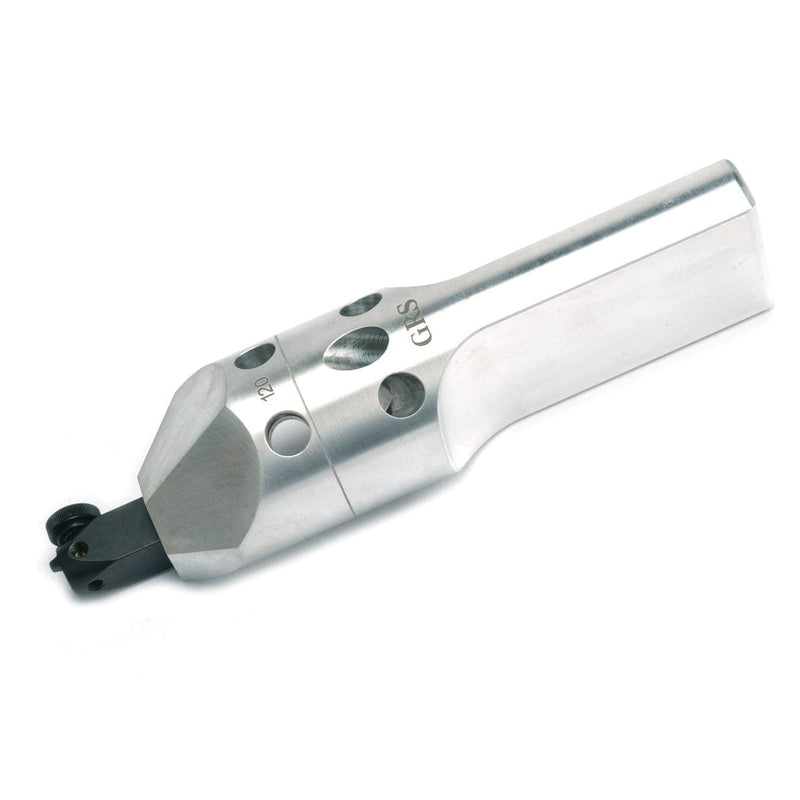

The design of the EasyGraver Sharpening Fixture is based on the standard geometries that we observed in use by hundreds of engraving artists and jewelers throughout the world over many years.
Two separate models are available: 120˚ or 105˚, both for creating V-point gravers. This is the 120o Fixture. For hand engravers and jewelers who currently use other geometries, the time it takes to adjust to these presets is outweighed by the benefits of accuracy and efficiency.
Please note that the Post Assembly 103.502 IS NOT INCLUDED is required to use this tool and must be purchased separately. This is the post assembly and base used with several different GRS Graver Sharpeners and can be purchased separately if needed.
Post positions #1 and #2 are for truing or reshaping the base of the graver for a 120 or a 105 degree V-point. The side post positions, #3 and #4, are then used to sharpen a parallel heel. After the heels are sharpened, the center post position (#5) allows the user to sharpen a face angle and easily adjust the length of the heel.
