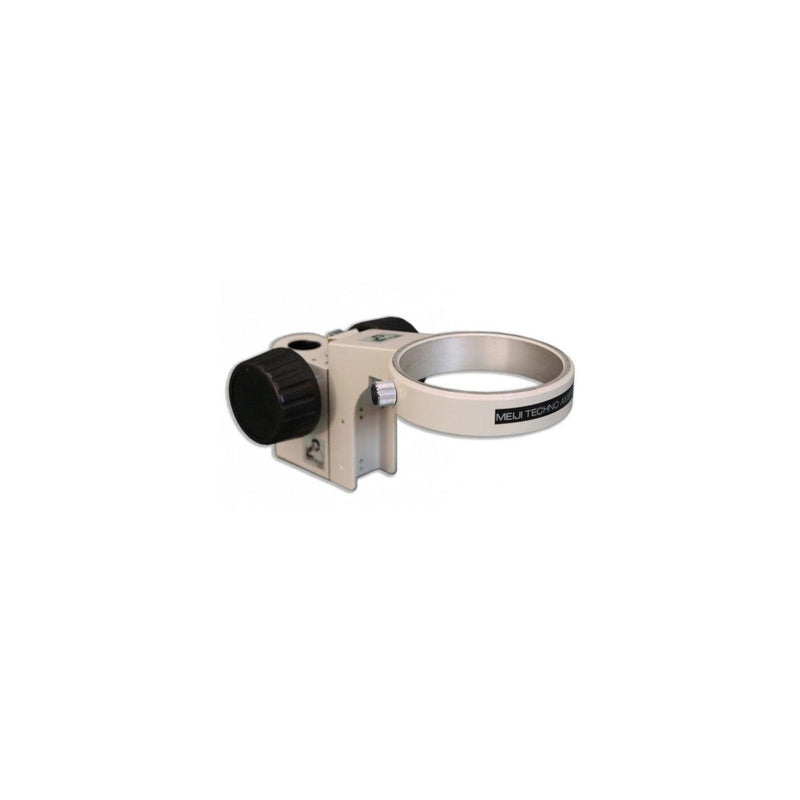

FS Coarse Focus Block/Holder is a tilting focus holder with integral, adjustable illuminator port. Rack and pinion mount allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment. Uses 15.8mm (5/8") diameter, 34.5mm long mounting pin. The 84.2mm diameter opening accepts all EM Series stereo bodies opening accepts all EM Series stereo bodies.
NOTE: Additional items are needed to create a full microscope system.
Focusing holders hold microscopes body and contain the mechanism that raises or lowers the body to focus on the specimen. Complete stands include their own focusing holders. But for other kinds of tasks, however, it may be necessary to mount the microscope body on a boom arm stand or directly onto a machine or some other surface. The focusing holders below offer a range of options for such applications. Made in Japan
EMZ Series zoom stereo microscopes are most the rugged microscopes from Japan and tailored to fit the needs of each and every customer. Modular design enables the user to engineer their own custom solution for virtually any application, selecting components from the widest range bodies, stands, eyepieces, supplementary lenses, illuminators, camera adapters, and accessory components available in the microscope industry today.
Multi-coated optical components, free form chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images, rich in contrast, brightness and correct in their original color. Excellent depth of field and a flat image rendition are also characteristics of the EMZ Series product line.
All-metal aluminum alloy microscope bodies and components with chemical resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship, quality components and materials result in long-lasting, high-performance products.
All EMZ Series zoom stereo microscope bodies feature a compact lightweight design. Every stereo body features adjustment diopter tubes and interpupillary distance adjustment. Observation tubes are inclined at 45°, 60° or 90° for convenient fatigue free viewing depending on the application. A range of fixed of tilting focus blocks are available to mount the microscope body onto existing O.E.M. equipment. A choice of Zoom, Turret or Fixed magnification bodies with various working distances, optional auxiliary objectives and eyepieces, multiple adjustable stands, versatile illumination systems, and auxiliary components allow the end user to design a system to fulfill their specific requirements.
