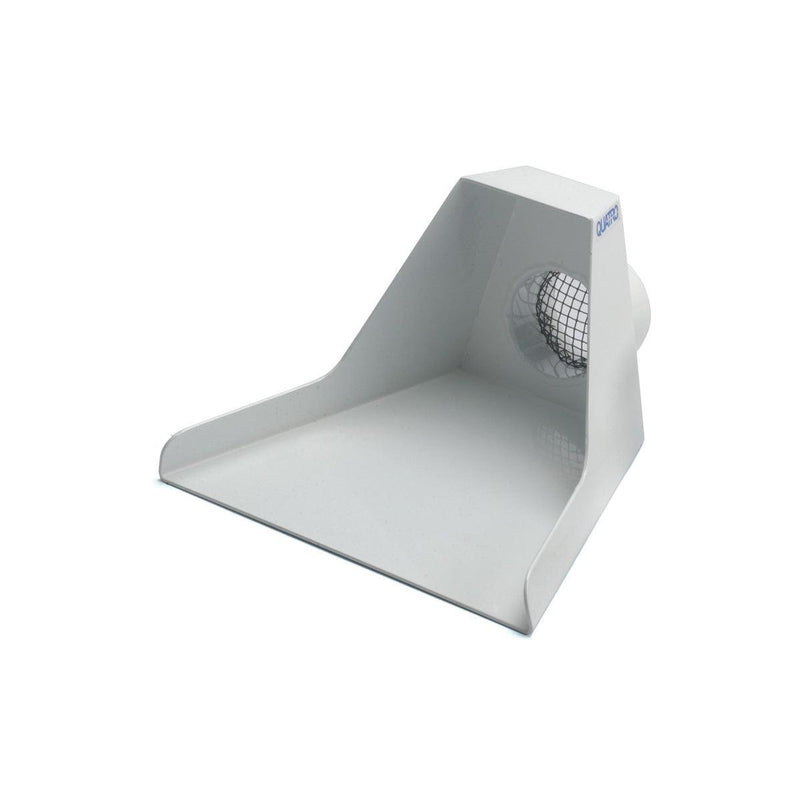

Quatro AA751-ASV Fishmouth With Automatic Start/Stop Valve
This Quatro Fishmouth includes an Automatic Start/Stop Valve (AVS). This device acts like a power switch to turn many Quatro systems* on and off. Image sitting down at your bench and turning your SolderPure or CollectAll on by simply sliding open the gate on the AVS. AVS accessories are meant to be used when you have 2 or more connections (workstations) as they work in series. This allows you to maximize the suction power to the workstation you are using. With one gate open and the other close, the switch keeps the power on. Close both gates and your suction unit turns off.
AVS accessories are hard wired together. Each AVS has a 20 foot cord that terminates with two loose wires, one red, one black. When connecting 2 or more AVS accessories, all the red wires connect to each other and all the black wires connect to each other. These separate wire bundles of red and black are then connected to a Quatro ASV Connector Cable AE750 (not supplied-must be purchased separately). The AE750 Connector Cable has a 9 pin end that plugs into the 9 pin port on certain Quatro dust collectors the have the 9 pin port on the Control Panel (*Quatro SP SolderPure, CA CollectAll, PGR SuperFlow, JTB JetStream Brushless & PS6) The AVS system is not for use with GoldVaults and JetStreams that are not JTB Brushless.
You have to manually open and close the gates to activate the switches so AVS integrated accessories need to be located near the operator to be convenient.
Conventional Workbench Air Attachment
Powder coated heavy duty steel
Wire mesh keeps parts from being drawn in
Connects to your dust collector: 1.5", 2", 2.5" or 3" diameter hose
