Now you can automatically mix and pour your gold investment under vacuum with the St. Louis Investment Mixer. You can mix up to 18 flasks per hour. The most important feature of this unit is that you are mixing and pouring investment under a controlled vacuum environment. This is a real time saver as you will not have separate mixing, pouring and vacuuming operations. Since it is user friendly, anyone can be trained in a few minutes to operate this unit. Simply place your flasks in the enclosed drum under the investment mixing blades. Measure the correct amount of investment and water, then close the mixing chamber and start the vacuum pump (not included). When you have achieved vacuum, turn on the two speed mixing unit and set your timer. These units will reduce casting rejects and produce bubble free castings! Now you are ready to pour your flask. Position your flask under the valve, apply vacuum to the lower chamber and open the valve. As the investment fills the flasks, turn on the vibration table under the flasks and you are done!

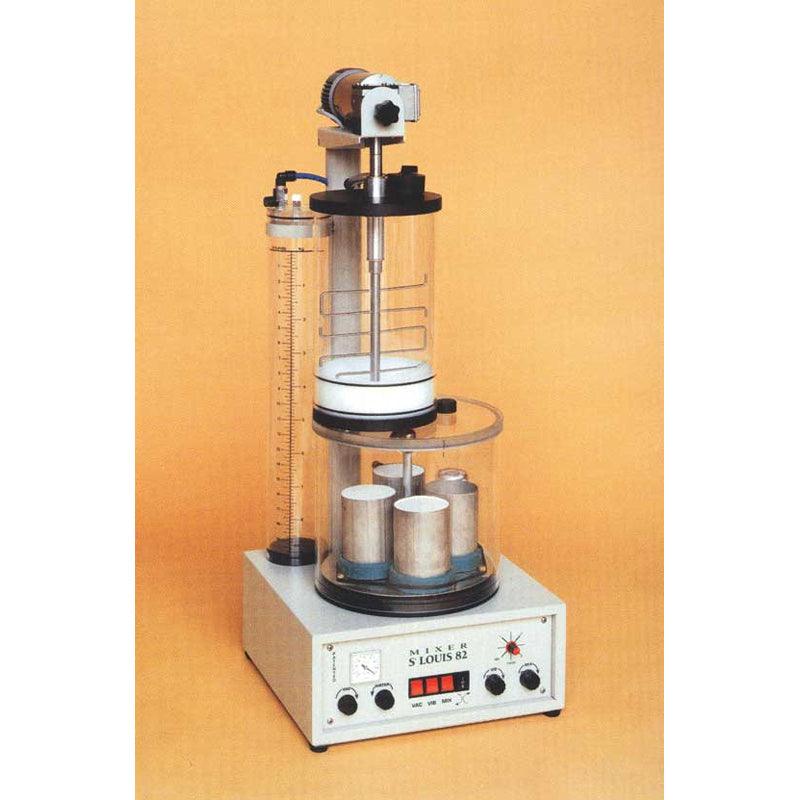

This is the model 82-6 St. Louis Investment Mixer that can mix up to 6 Kg (13.2 lbs.) of investment at one time. Maximum flask size is 90 mm x 160 mm (3-1/2" x 6-1/4"). The flask plate diameter is 280 mm (11")
Weight 97 lbs: (44 Kg)
42 cm x 50 cm x 185 cm (16-1/2" wide x 20" depth x 73" high)
All units: 220V, 1ph50/60cy. Made in Italy.
This item drop ships-Ships Freight Only
