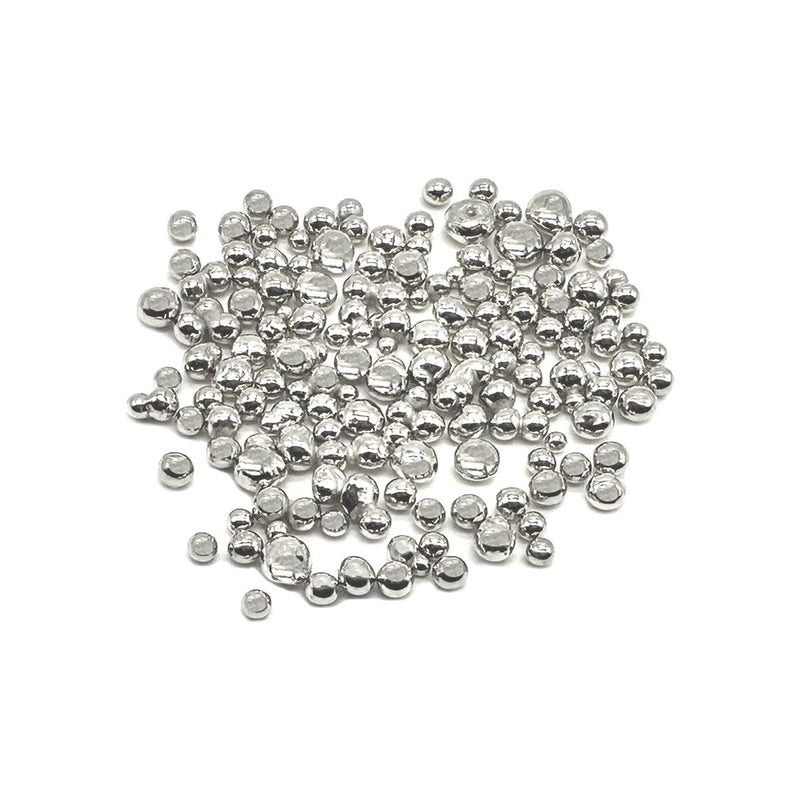

Ultra White 9-18 Stone-In-Place Investment Casting Master Alloy wotj excellent fluidity-Contains No Gold-Per Troy Ounce (20DWT)
Contains:
CU 53%
AG 20%
Zn 10%
Ni 17%
Note: There are proprietary metals in the formulation which are not included in the composition section. May also contain silicon and deoxidizers.
Sold by the troy ounce (20 pennyweights or 31.1 grams)
General Instructions:
• Very little boric acid flux is recommended. Do not use carbon flux such as soda ash, saltpeter etc. No flux needed in bottom pour automatic casting unit. • Flouric based investment removers are the best for silicon oxide invisible coating. Use of aggressive acid causes corrosion and surface damage. • To calculate the weight of the metal needed (in grams), multiply density (gm/cc) with weight of wax (grams) . Add 10% of the total weight for button. • Gypsum bonded investment is recommended. Follow manufacturers instruction for burnout cycle.
You should obtain excellent results by following a few simple instructions.
We do recommend pre-alloying all alloy and fine gold with aggressive stirring & fluxing to assure a uniform mixture.
Step : 1
Pre- Alloying (Fine gold + alloy) Temperature 9K-18K 1050C - 1060C / 1922F - 1940F
Step : 2
Casting Temperature for 10K Alloyed Grain 960C - 980C / 1760F - 1796F
Casting Temperature for 14K Alloyed Grain 985C - 1005C / 1805F - 1841F
Casting Temperature for 18K Alloyed Grain 980C - 1000C / 1796F - 1832F
NOTES: Melt temperature may vary with type of unit. This alloy is designed for casting and fabrication application.
Flask Temperature: Normal recommended temperature in the range of 540 C to 675 C / 1004° F – 1247° F depending on size of flask, karat & type of jewelry.
Quench Time: 15 – 25 minutes.
Investment Removal: Most standard investment removers will successfully remove the investment powder. Use of aggressive acids causes stress corrosion and surface damage and is therefore not recommended.
Removal: We recommend a 60% fresh - 40% scrap mix. White gold alloy has about 1/3 the reusability of yellow gold alloys.
