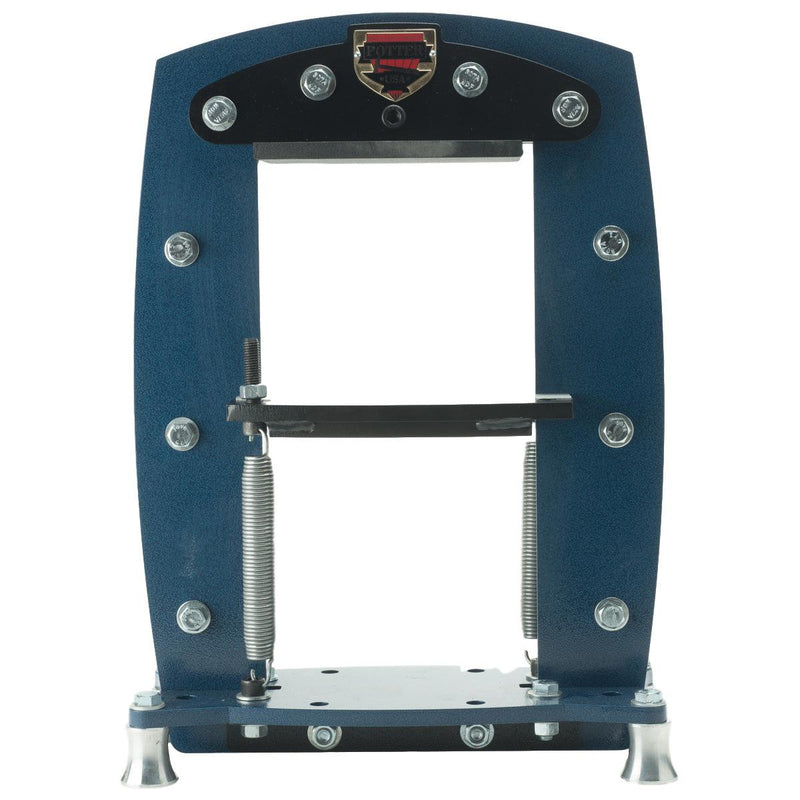

20 Ton Hydraulic Jewelry Press Frame

Part # 025.703
Sold out
Original price $1,450.00 - Original price $1,450.00
Original price
$1,450.00 - $1,450.00
Current price $1,450.00
Out of stock

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

Product Details

The Potter USA Press has been designed to safely and efficiently form metal in a jewelry studio environment. It has many features including its 1/2 inch steel plate construction, with only two critical welds on the entire press, which make it extremely strong and rigid.

The 1 inch upper platen and 1 inch fully-machined lower platen resist flexing and distortion under the most extreme use.

Overall dimensions: 23" High by 19" Wide by 10" Deep. Weighs 87 lbs. Shipping weight is more.

See All Press Accessories

The frame has a lifetime warranty. Should it ever be damaged or malfunction in anyway, the frame will be repaired or replaced.

Press is made of 1/2" thick steel plate. It has been professionally welded and has been tested to far exceed the 20 ton rating.

This is a Press Frame Only-Sold without a hydraulic jack. 20 ton jacks can be purchased at any good sized hardware store. The frame will fit a Harbour Freight 20 ton jack and other 20 ton jacks on the market. With a standard height jack, you will have 7" of space between the platens. With a low profile 20 ton jack, you can get up to 9" of space between the platens, enough space to do deep draw work.


  • Affordable
  • Highly compact
  • Bench mounted
  • Very easy to use
  • Many accessories available
  • Works with other press manufacturer's accessories
  • 1 inch tooling hole in upper platen provides you with the ability to use a variety of accessories, i.e. forming tools, radius pushers, convex and concave and synclastic forming tools, silhouette dies, pancake dies and platen extenders.
  • Ships completely assembled. (Other manufacturers use up to 5 boxes and require assembly by the customer).
  • Comes with a mounting plate that has magnets for easy switching between tasks.
