134.772MX-2

Badeco MX-2 Revolt STRONG Micromotor

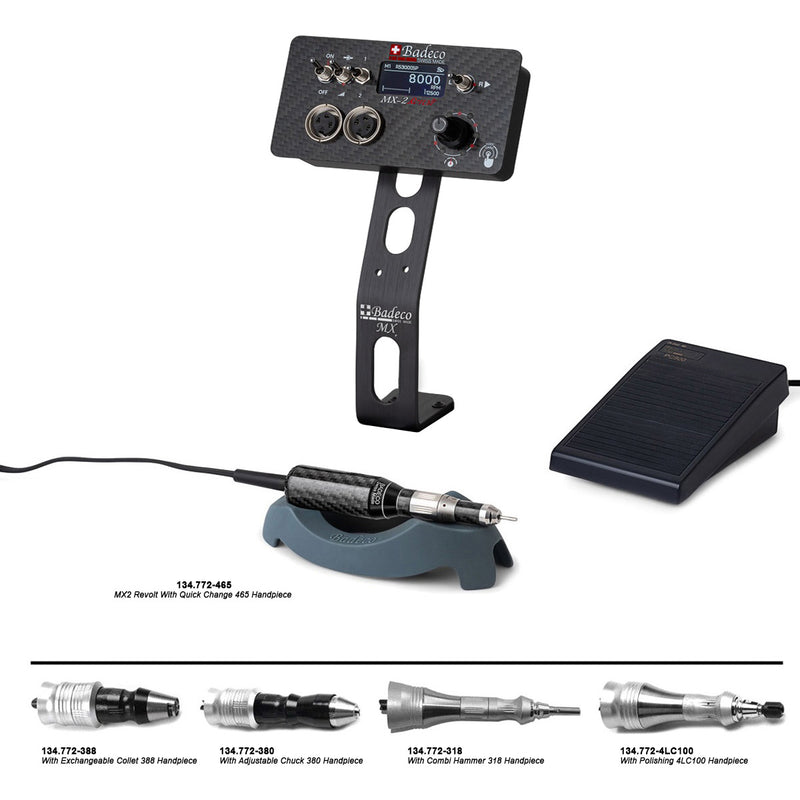

The Swiss-made MX-2 Revolt features an OLED real-speed display and two motor outputs so you can run two motor/handpiece combinations. Otto Frei supplies this set with a STRONG RS2000 carbon micromotor and your choice of handpiece below. You can add a second motor/handpiece (RS2000 or RS3000SP nano with its matching handpieces) as needed.

Select a handpiece

• 134.772-465 — New Carbon Quick-Change 465 HP : Lightweight, secure ¼-turn quick-change with 3/32" collet.* Change tools without stopping the motor.
• 134.772-388 — Exchangeable Collet 388 HP : Standard 3/32" collet; optional sizes: 0.55, 0.80, 1.05, 1.55, 2.05, 2.35, 2.55, 3.05, 3.2 mm (1/8").
• 134.772-380 — Adjustable Chuck 380 HP : Adjustable chuck, 0.05 mm to 4.5 mm max opening.
• 134.772-318 — Combi Hammer 318 HP : Pro stone-setter’s hammer; uses the same 19 tips as the Badeco 222 flex-shaft hammer. Medium–hard, adjustable stroke; single or continuous mode via control-box switch.
• 134.772-4LC100 — Polishing 4LC100 HP : Micro-filer for fine details in tight areas; controlled back-and-forth stroke with speed adjustment; 360° rotating head for smooth tool contact.

What’s included

• MX-2 Revolt controller with real carbon front panel, OLED RPM display, and dual motor sockets
• STRONG RS2000 high-torque micromotor (2,000–20,000 rpm)
• Selected handpiece (from the options above)
• PC800 variable-speed foot control (replaces PC200)
• MX screw-on stand and ASF-021 bench support

Why it’s great

• Precise, steady speed control (forward/reverse); remembers last speed and pedal/manual mode
• High torque at low speeds—ideal for drilling/setting in platinum and high-karat white gold
• Compatible with RS3000SP and RS3000V nano-motors for ultrafine work

* The 465’s collet is extremely precise and intended for equally precise shanks from Busch, Brasseler (Fox Germany, Panther, Komet) and Dentsply Maillefer (Otto Frei Swiss brand). U.S.-made HSS burs may vary in shank diameter and can underperform in the 465.

Warranty & Service

Two-year factory warranty (parts & labor). Service is performed by the factory in Geneva, Switzerland:
8 rue de la Coulouvrenière, CH-1204 Genève. For repairs, see your warranty card, email info@badeco.com
