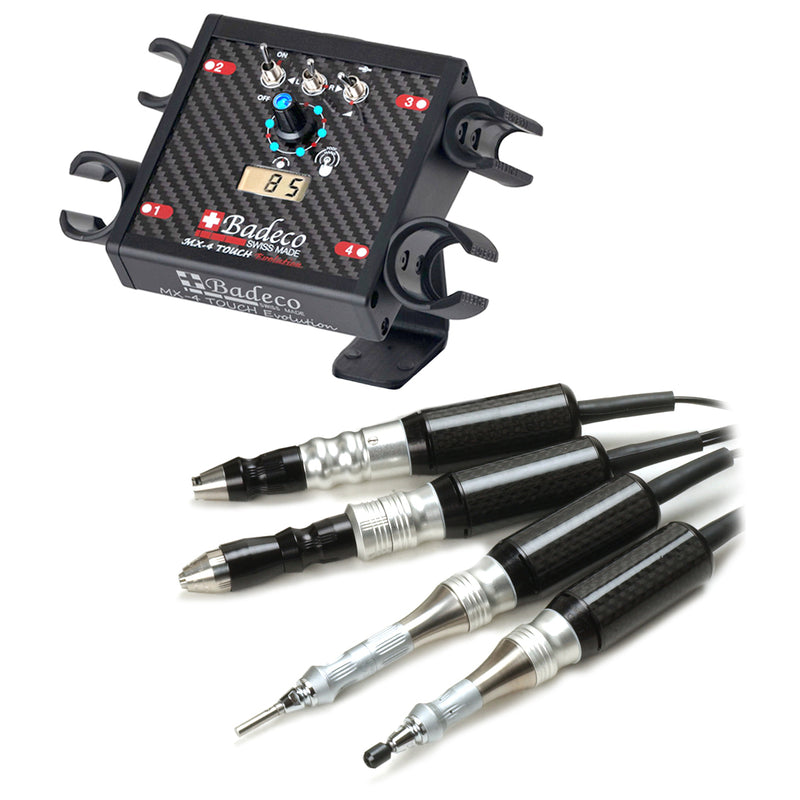

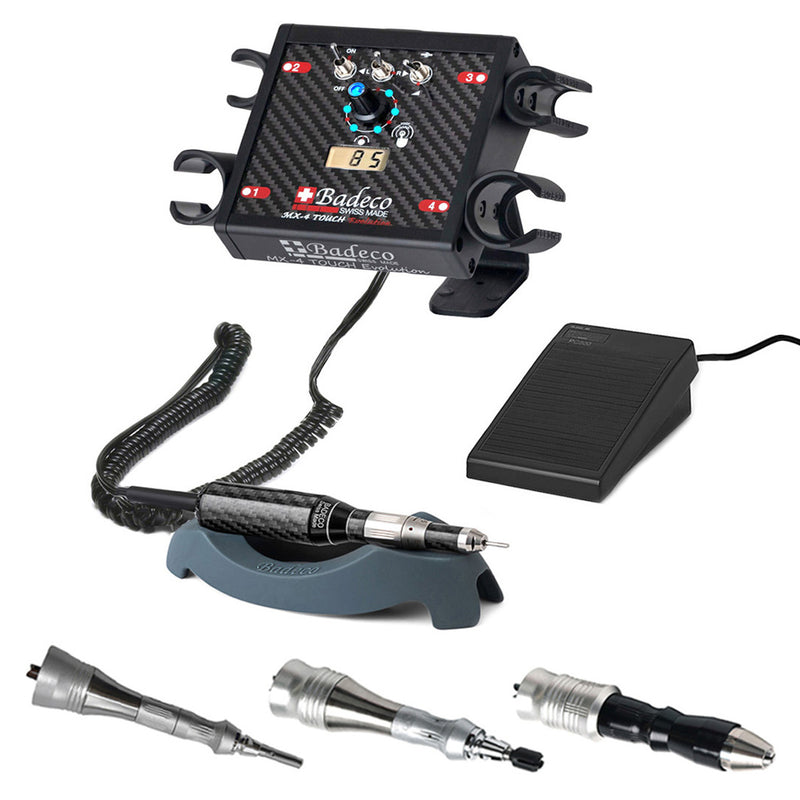

Badeco MX-4 Touch Evolution Micromotor with 4 Handpieces

Part # 134.746
Original price $6,450.00 - Original price $6,450.00
Original price
$6,450.00
$6,450.00 - $6,450.00
Current price $6,450.00
by Badeco

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

Product Details

This is the MX-4 Touch Evolution Version 2* complete kit with 4 RS2000 micromotors, 4 handpieces, HP465, HP318, HP380 & HP4LC100 and a  PC800 Variable Speed Foot Control.

To create your own MX-4 Touch Evolution kit, purchase the 134.746-450 single handpiece kit and add the combination of handpieces and micromotors that you like.

The Badeco MX-4 Touch Evolution brings all the power tools a jeweler needs at hand for instant use. Simply remove one handpiece and the control unit senses which handpiece to power. Replaces the need to have multiple flex shaft motors and foot controls cluttering up the bench.

The Badeco MX-4 Touch Evolution Dual Voltage 115/230V micromotor has been designed for use in the jewelry and watchmaking industries of Switzerland, the number one producer of super-premium jewelry and watches for the world. What separates this micromotor apart from all others is the quality, precision and reliability of the power box, motor and of course, the handpiece, and the single most important part of a micromotor. The Badeco Carbon Series Micromotor is a remarkable piece of Swiss engineering, giving you unstoppable torque at the lowest speed, the kind of low end power that jewelers need for drilling and stone setting.

The Badeco MX-4 Touch Evolution 4 handpiece kit includes:
  • Badeco New Carbon Quick Change 465 HP: The ultimate quick change handpiece with 3/32" collet.* The New Badeco 465 is lightweight yet solid, fitting perfectly in the hand allowing for continuous stress free work. To open the quick change collet all that is required is a simple 1/4 turn of the handpiece making for rapid tool change without the need of a lever or a wrench. This new version allows for tool changing without having to stop the motor. The 1/4 turn to close the collet produces a very secure grip that firmly closes on the bur or drill being used.  As sold with all Badeco Quick Change kits as of January 2023. For more information on the New 465 Badeco Handpiece, see part number 134.738-465 link below.
  • Badeco 318 Combi Hammer Handpiece - The 318 Combi is a hammer handpiece that produces impact strokes rated from medium to hard. The "Combi" name refers to the 2 different ways this handpiece can be used. When the left side toggle switch on the control box is set to hand use the strokes on the 318 are constant to the speed you choose on the center speed control dial. When you switch the left side toggle to foot control the 318 will give you a single stroke every time you touch the foot control. Whichever mode you choose you can control the strength of the impact strokes by twisting the impact controller ring on the 318 handpiece itself.
  • Badeco 4LC100 Polishing/Filing Handpiece - Badeco 4LC100 micro filer handpiece that for polishing the finest details in hard to reach spaces. Use this tool with a wide range of ceramic files or the new mini files custom made by Glardon-Vallorbe that fit right into this handpiece.
  • Badeco 380 Adjustable Chuck Handpiece - (0.05mm to 4.5mm max opening) quick change handpiece. This marvel of Swiss engineering has an adjustable chuck that will allow you to use any shank size tools from as small as 0.05mm diameter all the way up to 4.5mm diameter without having to change collets.
  • Badeco RS2000 Micromotors - To fully enjoy the labor saving efficiency of the Badeco system you will need micromotors to power each handpiece. The Badeco RS2000 carbon fiber micromotors connect to the back of the control box and then are threaded onto the handpieces. These carbon fiber micromotors are designed for reliability and efficiency producing speeds from 2,000 rpm to 20,000 rpm with 50% more torque at all speeds than other brands of micromotors.
  • Badeco Foot Control PC800 - The Badeco foot control will work as a variable speed control or as a set point control. Choose which mode of operation by toggle switch on control box.
  • Mounting Hardware - Use this hardware to mount the control box on your workbench.

The Badeco MX-4 Touch Evolution control box with handpiece holders activates the single handpiece that you remove from the individual holders. If more than 1 handpiece is removed from the holders the power is stopped. If you wish to operate with empty holders simply block off the photo cell in the unused holder with black tape.

The control box allows for a variety of operating modes:

  • You can set the speed manually using the center speed control dial.
  • The far left toggle switch allows you to run manually by hand (handpiece speed controlled only by the center speed dial) or by foot control (handpiece speed controlled by foot control).
  • The center toggle switch allows you to operate in forward (right rotation) or reverse (left rotation).
  • The far right toggle switch controls how the foot pedal is operated. When the far left toggle switch is positioned down for foot control and the center speed control is in any position but off, the far right toggle switch allows for either set speed control or variable speed control.

*Version 2 features a re-designed control box with new 6 prong connector for the PC200 or PC800 foot controls. Previous versions had 7 prong connectors for use with the PC100 or PC750 foot controls.

**The collet on the Badeco 465 is extremely precise and is made to use with equally precise shank size burs from Busch, Brasseler (branded as Fox Germany, Panther or Komet) and Dentsply Maillefer (Otto Frei Swiss brand). American made HSS burs will not give good results in the Badeco 465 handpiece as their shanks are not as uniformly precise in size.

Badeco MX-4 Touch Evolution Micromotors have a 2 year from date of purchase factory warranty covering parts and labor.  All service is performed by the factory in Geneva, Switzerland.  The address is:
8 rue de la Coulouvreniere - CH - 1204 Geneve. For further information on repairs please reference your factory warranty card included with your purchase or email the factory at info@badeco.com or visit the factory website at www.badeco.com.
