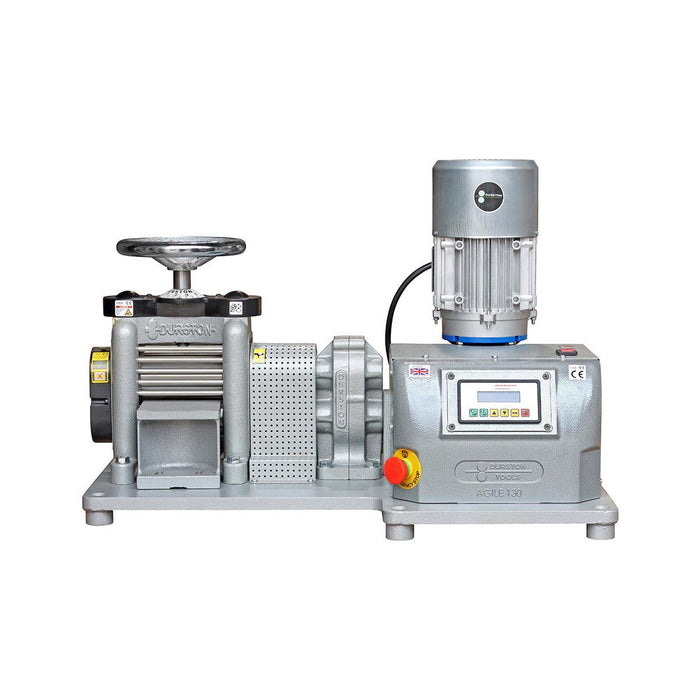

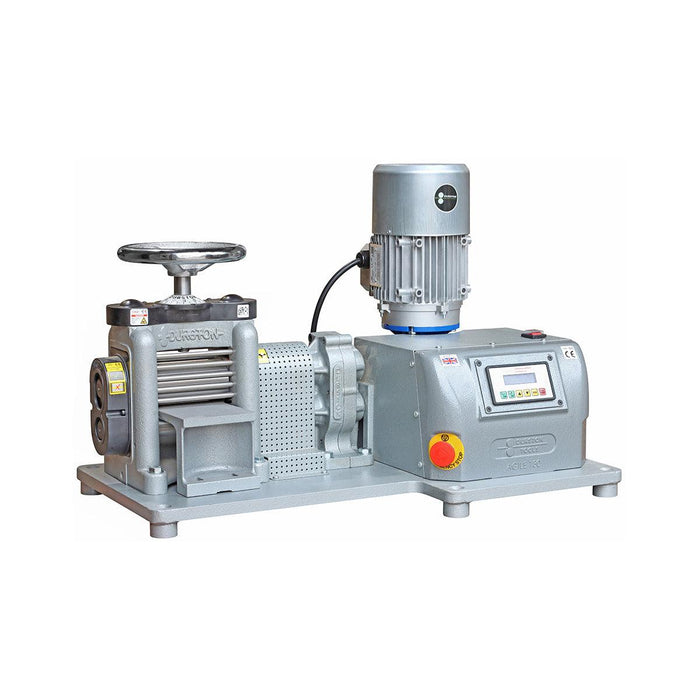

Durston 1086 Power TUI C130 Single Sided 130mm Combo & 10mm Roll Gap Rolling Mill

The TUI C130 10mm Roll Gap from Durston has been made specifically to roll thicker flat material up to 10mm thick and 130mm wide. Part of the TUI Range that has been developed to give the same quality and output you expect from Durston tools. Same components are used from the Core DRM range, such as the actual mills, rolls and casting gears. The cost savings are made by replacing the cast iron plate and main guard with steel instead and by having one central emergency stop button.

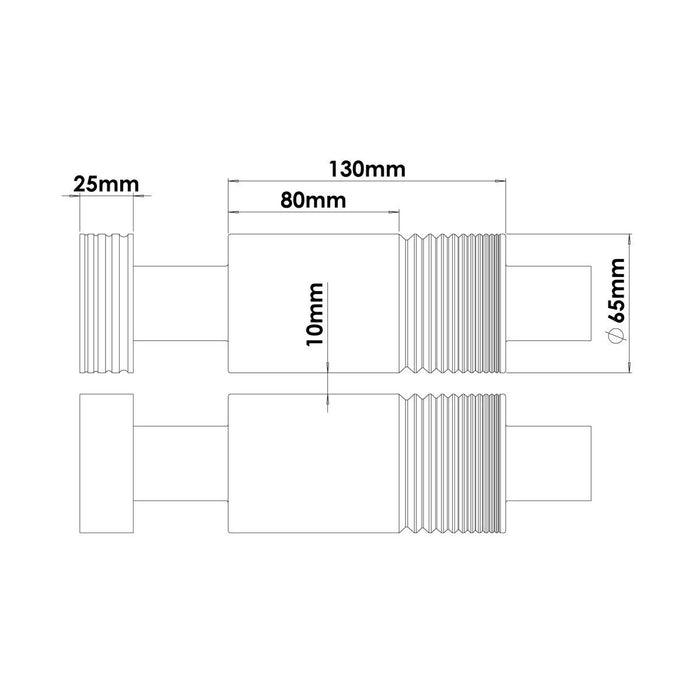

As with all Durston tools powered mills, the TUI C130 10mm has variable speeds, as standard, in forward and reverse plus two sets of extension rollers securely stored behind black guards. The rolls themselves are 130mm flat rolls for sheet rolling to 10mm to create a perfect finish every time. The 1.1KW motor provides consistent power through the lifetime of the mill. Digitally controlled variable speeds from 5 to 20 RPM means you have complete control over each roll and the side extensions provide for half-rounds of 4, 3, 2, 1.5mm for additional versatility.



Aspect	Specification
Sheet Thickness Capacity	10 mm
Roller Type	Combination
Roller Length	130mm
Side Extensions	Half-rounds: 4, 3, 2, 1.5mm
Range	TUI
Dimensions	32-5/8" x 15-3/8" x 21-1/4" H (830mm x 390mm x 540mm)
Net Weight	400Lbs. (200kg)
