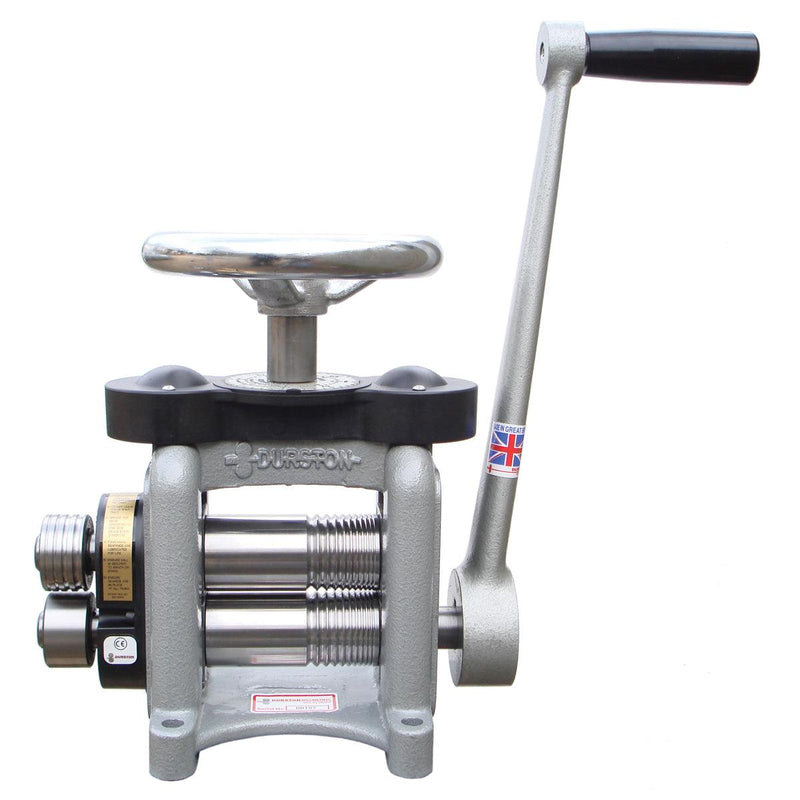

Durston 1003 C100-9 Mini Combo Mini Rolling Mill with Extension Rolls

This Durston rolling mill is a 100mm mini-mill with 9 grooves of wires. It is a direct drive mill without a reduction gear. This mill is a workhorse for small busy shops that need a versatile mill. The extension rollers are designed to reduce (not make) half round wire for ring sizing. So no need to stock every size gold 1/2 round wire you can just reduce half round or take round wire and roll it into half round stock.

Aspect	Specification
Roll Size	100 mm x 45 mm
Sheet Thickness Capacity	5 mm
Roller Type	Round
Roller Width	100 mm (70 mm Flat / 30 mm Wire)
Roller Diameter	45 mm
Roller Dimensions	40 mm Sheet and 40 mm Wire
Wire Grooves	9 sizes range from 6.5 mm to 1 mm
Gear Ratio	Direct Drive gearbox
Side Extensions	Four half-rounds: 4, 3, 2 and 1.5 mm
Maximum Wire Capacity	6.5 mm
Dimensions	11" L x 6-3/4" W x 10-3/4" H (280mm x 170mm x 270mm)
Net Weight	34 Lbs. (15.5kg)
