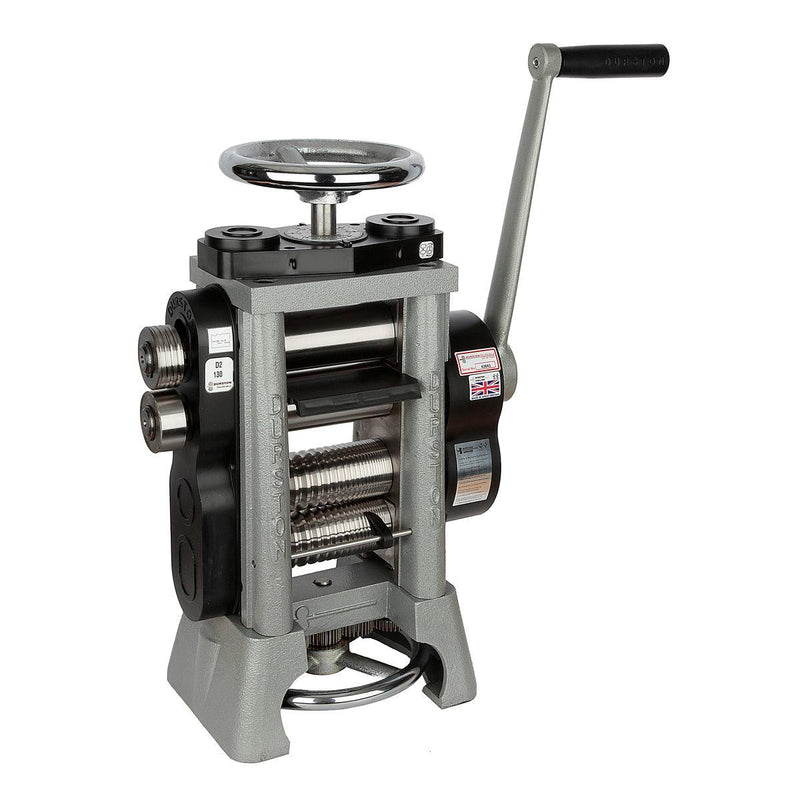

Durston 1051 Double D2 130mm Rolling Mill

The Durston Double D2-130 mm is the first choice for busy shops and schools that need a compact but complete flat and wire mill. Both the upper flat rolls and the lower square wire rolls are set in high quality maintenance free bearings that are guaranteed for life. Massive hand-wheel style adjusters are another example of the outstanding quality and attention to detail that are the hallmarks of Durston rolling mills.

The lower wire rolls have a groove indicator to help remind you which groove you've been in and the upper flat rolls have a calibrated disc that shows the roll gap in millimetres and inches down to .001" (.025 mm).

Aspect	Specification
Roll Size	130 mm x 60 mm (5-1/8" x 2-3/8")
Sheet Thickness Capacity	6 mm
Roller Type	Combination
Roller Length	130 mm
Roller Diameter	60 mm
Wire Grooves	19 square sizes range from 10 mm to 1 mm
Gear Ratio	7-to-1 and 3.5-to-1 gearbox
Side Extensions	Four half-round "D" shapes: 4, 3, 2 and 1.5 mm
Maximum Wire Capacity	10 mm
Dimensions	16-1/2" L x 8-3/4" W x 22-1/4" H (420 mm x 220 mm x 565 mm)
Net Weight	163 Lbs. (74kg)
