Durston 1090 TUI 130 Double Sided Power Rolling Mill-130mm Flat & 130mm Wire 110V

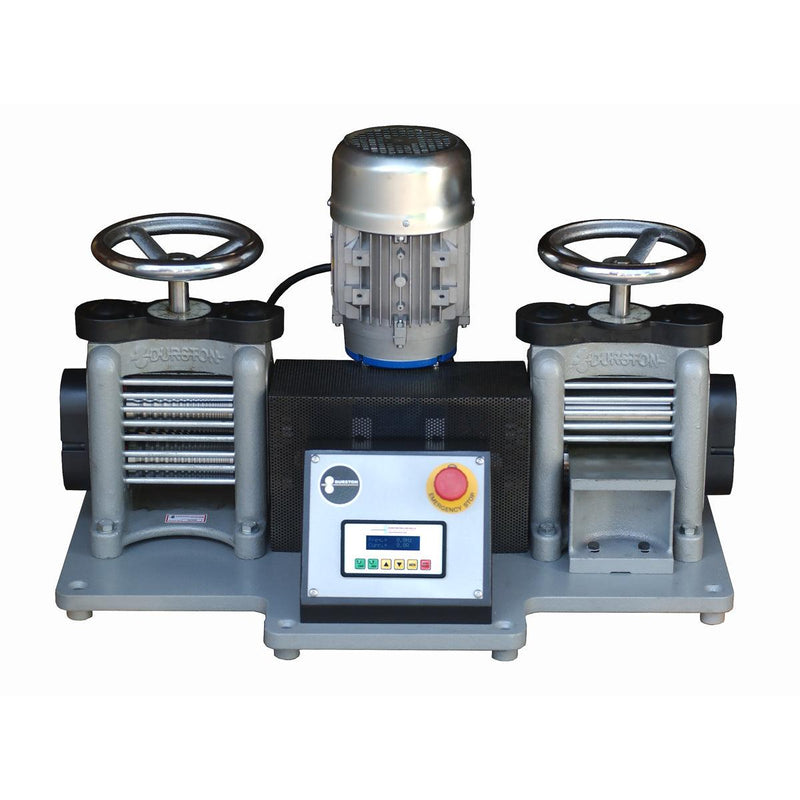

The Durston DRM-130 is a double-sided powered rolling mill built for serious production work. One side features a full 130 mm flat roll for sheet reduction; the other carries a dedicated 130 mm wire roll with 19 square groove sizes ranging from 1 mm to 10 mm. The cast iron base and gearbox cover provide the strength and rigidity needed for demanding studio and production environments, while high-quality Swedish roll steel — heat-treated to RC 63/64 — runs in heavy-duty roller bearings for long-lasting precision.

Power comes from a 1.5 hp (1.1 kW) 110 V motor paired with a precision epicyclic variable-speed gearbox, delivering smooth, near-silent operation across a 5–30 rpm speed range in both forward and reverse. Side extension rollers add quick half-round profiling capability without a tool change.

Features

• Full 130 mm flat roll on one side; dedicated 130 mm wire roll on the other
• 19 square wire groove sizes from 1 mm to 10 mm
• Side extension rollers: right side 4, 3, 2, 1.5 mm "D" grooves; left side 8, 6, 3.5 mm "D" grooves
• Maximum sheet operating thickness: 6 mm
• Maximum wire capacity: 10 mm
• Swedish roll steel heat-treated to RC 63/64
• Cast iron frame and gearbox cover for strength and rigidity
• Precision epicyclic variable-speed gearbox — smooth, near-silent power
• Forward/reverse operation with simple speed up/down controls
• Variable speed: 5–30 rpm (forward and reverse)

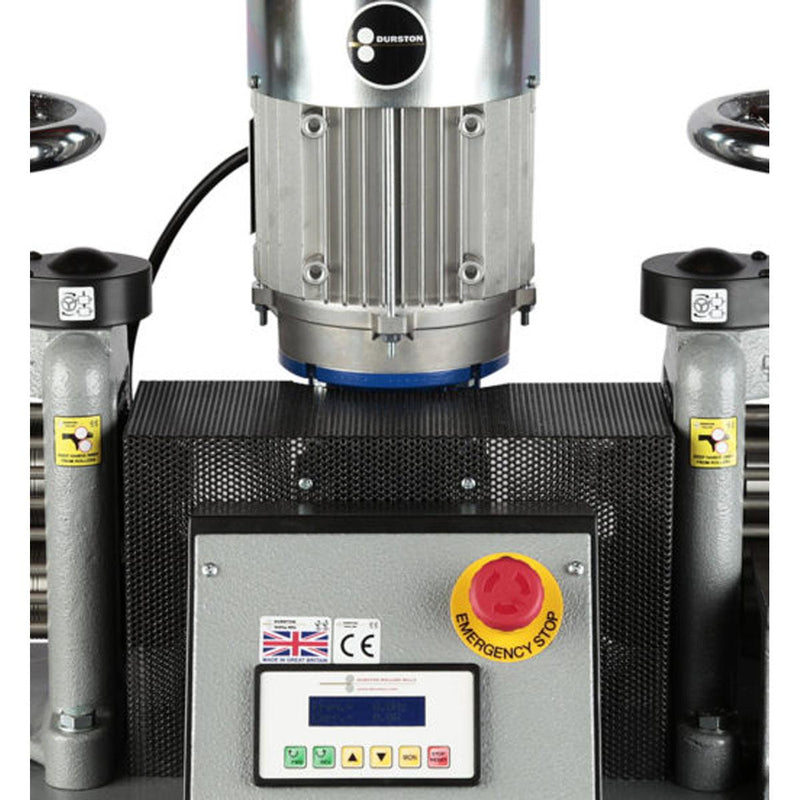

• Emergency stop button, front and rear safety bars, guarded extension rollers
• Easy-to-read calibrated disc for exact roll-gap measurement
• 110 V US version; 1-year factory warranty

Specifications

Notes

For inside financing on Durston power mills, contact Wyatt Frei at 800-772-3456 x107 or [email protected].
