E. C. Muller Straight Liner Gravers - Otto Frei

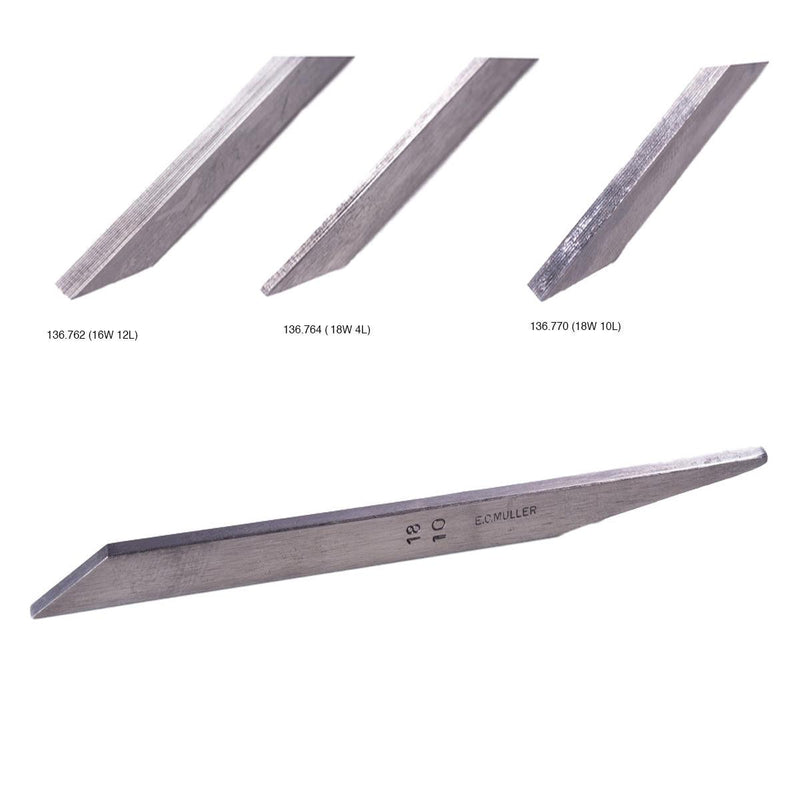

E. C. Muller Straight Liner Gravers

Part # 136.704
$25.55 - $34.75
$27.95
$25.55 - $34.75
$27.95
Availability:
6 in stock, ready to be shipped
Availability:
2 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
7 in stock, ready to be shipped
Availability:
Out of stock
Availability:
Out of stock
Availability:
Only 1 left!
Availability:
13 in stock, ready to be shipped
Availability:
12 in stock, ready to be shipped
Availability:
12 in stock, ready to be shipped
Availability:
12 in stock, ready to be shipped
Availability:
12 in stock, ready to be shipped
Availability:
6 in stock, ready to be shipped
Availability:
6 in stock, ready to be shipped
Availability:
4 in stock, ready to be shipped
Availability:
7 in stock, ready to be shipped
Availability:
11 in stock, ready to be shipped
Availability:
4 in stock, ready to be shipped
Availability:
11 in stock, ready to be shipped
Availability:
2 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
12 in stock, ready to be shipped
by Muller
Select Size: 8W 4L

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

Product Details

Understanding Liner Gravers
Defined by widths of cutting edges and number of lines graver will cut at one stroke. The “width” refers to the size of the lines and the space between them, not just how wide (true width) the markings a graver will make is. To determine the true width of a liner graver, use the width chart to find the size of the distance between lines and multiply by the number of lines.

The first number is the width number, the second number the distance between the lines

6 .080mm, 8 .100mm, 10 .125mm, 12  .150mm, 16 .200mm, 18 .227mm, 20 .250mm

For Example-a 10 x 12 liner graver will be 1.5mm "true width"  (12 lines x .125mm = 1.50mm) a 20 x 20 liner will be 5.0mm "true width" (20 lines x .250mm = 5.00mm.

Please note-"true width" refers to the width of the cut the graver makes in your metal, not the width of the graver itself.  Measurement are approximate.  We are dealing with an ancient system here.

Choose from the following sizes:

  • 136.684  6W 4L
  • 136.704  8W 4L
  • 136.710  8W 10L
  • 136.716  10W 6L
  • 136.718  10W 8L
  • 136.721  10W 10L
  • 136.728  12W 8L
  • 136.730  12W 10L
  • 136.736  12W 16L
  • 136.748  14W 8L
  • 136.750  14W 10L
  • 136.756  16W 6L
  • 136.758  16W 8L
  • 136.760  16W 10L
  • 136.762  16W 12L
  • 136.764  18W 4L
  • 136.766  18W 6L
  • 136.768  18W 8L
  • 136.770  18W 10L
  • 136.780  20W 10L
