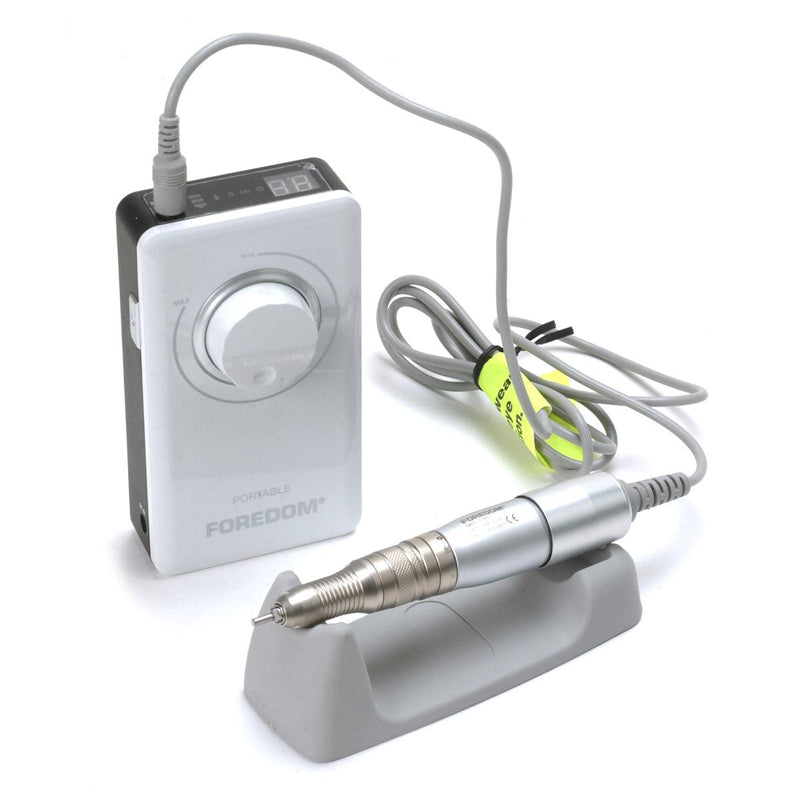

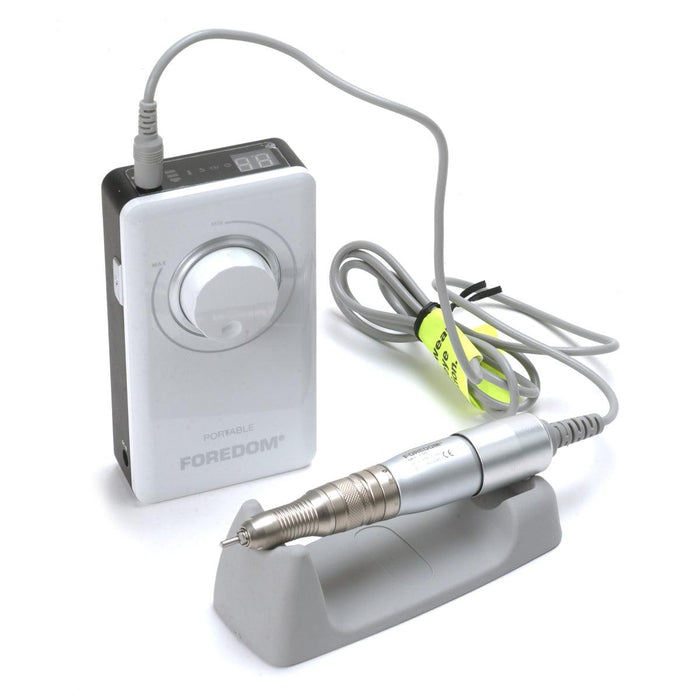

Foredom K.1030 Portable Rotary Micromotor Kit

Part # 134.545
Original price $407.39 - Original price $407.39
Original price
$407.39
$407.39 - $407.39
Current price $407.39
Availability:
In stock
Availability:
In stock
Availability:
In stock
by Foredom
Type: USA/North America

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

Product Details

*Machines are identical expect for plug type. Micromotor is dual voltage, 110V/230V.

Outstanding Foredom Quality In a Portable Lightweight Power Tool-Up to 5 Hours of Continuous Use Dual Voltage Adaptor 110/120 or 220/240

The Foredom K.1030 Portable Micromotor allows you to take your power tool anywhere at any time. Perfect for craft fairs or for any application that isn't convenient to do at your bench. Imagine being able to take your bulky plug-in flex shaft anywhere you want. Now you can with the new Foredom K.1030 Portable Micromotor!

Choose from 3 Different Charger Plug Types*:

  • 134.545 USA-North American Plug
  • 134.545-230V-AU Australian Plug
  • 134.545-230V-CE Continental Europe Plug

The micromotor handpiece is small and lightweight but has plenty of power with speeds from 0 to 30,000 rpm for fine detailing, polishing and even grinding on metal, wood, glass and many other materials. Its fan cooled, brush type continuous duty motor runs cool and vibration-free. It has permanently lubricated, shielded ball bearings that require no additional lubrication.

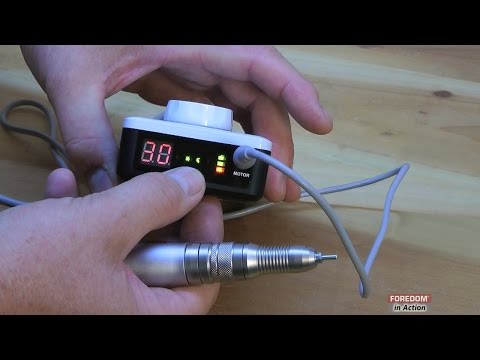

Control unit with built-in rechargeable Li-ion battery features a digital RPM display at the top that makes it easy to monitor speed as you work.

Run time is approximately 5 hours, depending on how long the micromotor is in continuous use when in battery mode, or plug it in for day-long use. Battery charge time is 3 hours.

Tool changes are quick and easy with a simple twist of the front section of the handpiece. The handpiece has a twist release rotary type collet for easy changes of 3/32″ shank burs. Optional 1/8" collets are available separately (see part number 134.538 below). Collets can be installed and changed. The high-speed rotary handpiece has a slender, contoured grip for precise and high speed work.

Foredom imports this micromotor kit but insists on strict quality control, testing every unit to make insure these micromotors will work as they should. The Foredom brand name means you can trust these machines to deliver outstanding performance right out of the box and beyond.

The Foredom K.1030 portable micromotor will run in standard forward or reverse direction.

The Foredom K.1030 Portable Micromotor has a Two Year Foredom Limited Factory Warranty

Kit Includes:
  • HP4-310 Control Box
  • H.MH-130 with 3/32" (2.35mm) collet installed
  • HP8-306 Charger/Adapter
  • HP4-933 Handpiece Cradle
  • HP8-163 Spare pair of motor brushes
  • Collet Changing Wrenches HP4-993
  • Plug for Optional Foot Controls*

Product Details:

HP4-310 Control Unit with Built-in Rechargeable Battery
Specifications:
2-3⁄4″ Wide, 1-1⁄4″ Deep, 5-1⁄4″ Tall, 9.77 oz. Output: DC 12V/1.2A
Front:  Speed Control Dial
Top:  Handpiece Connector Port, 2-Digit RPM Display, LED Indicator Lights: Optional On/Off Foot Switch in use, Rotational Direction, Battery Charging, and Overload Protection Circuitry
Side Panels: On/Off Button, Adapter/Charger Connector Port, Forward/Reverse Button, Port for optional* (see part number 134.531, Foredom HP4-927) Foot Switch Connector Port, Button to activate optional* On/Off Foot Switch Button

Handpiece (Motor)
Specifications
: 5″ Long, 1/2″ Diameter at grip, 7/8″ at motor, 6.46 oz/183g, Cord Length: 59″DC12V/1.2A, 4.11 in.- oz or 29mNm or 25W Max Torque or Watt Output
The Handpiece is small and lightweight yet has plenty of power for fine detailing, polishing and even grinding on metal, wood, glass and many other materials. Its fan cooled, brush type continuous duty motor runs cool and vibration-free. It has permanently lubricated, shielded ball bearings that require no additional lubrication. The handpiece has a twist release rotary type collet for easy changes of 3/32″ or 1/8″ shank burs, depending on collet installed.

HP8-B1800 Rechargeable Lithium Ion Battery:
Specifications: 14.8v – 1,800mAh
Charging Time: 3 hours, Working Time: 5 hours

HP8-306 Charger/Adapter:
Specifications: Input: 110-240 Volt, 50/60hz, Output: DC18V/1.8A

*Optional Foot Controls Available (see below):

134.531 On/Off Type (sorry-no variable speed foot control is available for the Foredom K.1030).



California Prop 65 Warning:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
