Ships Free-Foredom K.1053 Dual Handpiece Kit-Brushless 3/32" (2.35mm) Collet Rotary & Hammer Handpiece 115V

Part # K.1053
Save 15% Save 15%
Original price $1,674.75
Original price $1,674.75 - Original price $1,674.75
Original price $1,674.75
Current price $1,423.54
$1,423.54 - $1,423.54
Current price $1,423.54
In stock
by Foredom

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

Product Details

Free Shipping in the Continental USA. If ordered with non free shipping items you won't be charged shipping on this item, but you will have shipping charges for the other items and your order will ship ground standard shipping.

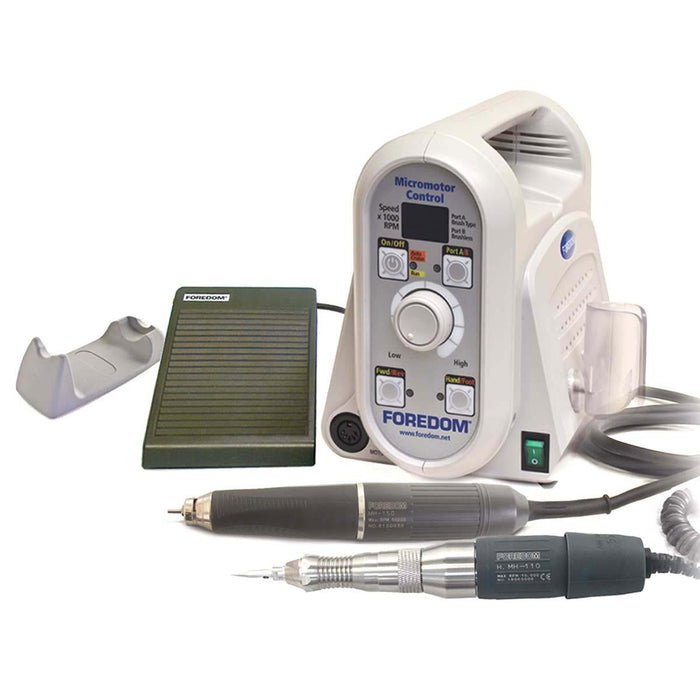

Foredom K.1053 Dual Handpiece Kit comes with 2 handpieces. Brushless rotary handpiece connects to port in the back of the control box. It runs virtually vibration free with high torque throughout the entire speed range of 1,000-50,000 rpm. Brush type hammer handpiece operates at 1,000-2,500 strokes per minute. Connects to port in front of the control box. Control box with digital display, variable speed foot pedal, 2 handpiece cradles and an extra fuse also included.

Product Features:

-Brushless motor design carbon brushes NEVER need changing.
-Maximum Torque or Watts Output 10 oz. in or 70mNm or 230W. Powerful even at minimum speeds.
-Sealed housing eliminates dust noise and vibration.

Additional port for Brush Type Micromotor Handpiece:
Brushless micromotor is excellent for usage at high, medium and low speeds.

  • High Speed provides smooth, clean and sharp detailing in metal and wood. It's also great for bright-cutting, grinding, finishing, texturing and polishing. You never need to change the brushes on this handpiece.
  • Medium Speed it is ideal for effortless and fast stock removal in wood, diestone or acrylics.
  • Low Speed offers extra control and power for stone setting and milling.

HP4-817 Control Box and Front Panel LED

  • 50/60 Hz, 100VA, 5.4" wide, 9.1 deep, 7" high.
  • Dial speed control sets precise speed and torque.
  • Digital display for precise speed and torque settings: Auto cruise, Forward or Reverse rotation, Dial or Foot speed control.
  • Built in overload protection.
  • Brushless micromotor handpiece connects to port on back side of control box.
  • Brush type handpiece connects to port in front.

H.MH-150 Brushless Handpiece/Motor

  • 6.3" Long, 1.06" motor diameter, .75" grip diameter, 8.4 oz./237.7grams, 115 Volt.
  • Ergonomic and brushless with long-lasting ceramic ball bearings.
  • Bur changes are quick and easy with a simple twist of the front section of the Handpiece.
  • Comes with either 2.35mm (3/32") collet installed.

H.MH-110 Brush Type Hammer Handpiece/Motor

  • 6-1/4" overall length, 9/16" grip diameter, 13oz./369grams, 1.5amps (115V).
  • Ideal for stone setting applications and engraving techniques.
  • Slender contoured grip and impact adjustment ring for precise hammering work.
  • Operates from 0-2,500 strokes per minute. The force of the impact of the H.MH-110 reciprocating handpiece can be adjusted from light to full by turning the metal ring while the motor is off or running.
  • The speed of the hammer action can also be varied from 0-2,500 strokes per minute with the dial on the control unit.
  • Used with the supplied Graver Holder, the handpiece becomes a precision power engraver - no need for an air compressor or a flexible shaft drive.

Handpiece Accessories:

  • 3-Anvil Points with Threaded Shanks (HP10177)
  • 1-Graver Holder with Allen Key (HPH8-214). Screws into the front end of the handpiece and converts it into a power engraving tool. Comes with 5/64" Allen key (graver not included).
  • 1-5mm Open End Wrench, handpiece Cradle (HP4-933), Spare Motor Brushes (HP4-163), 2 Pins used to tighten Anvil Points.

HP7-7060 Foot Speed Control

  • Variable speed foot control works with control box HP4-717. Varies speed from 1,000 - 50,000 RPM.
