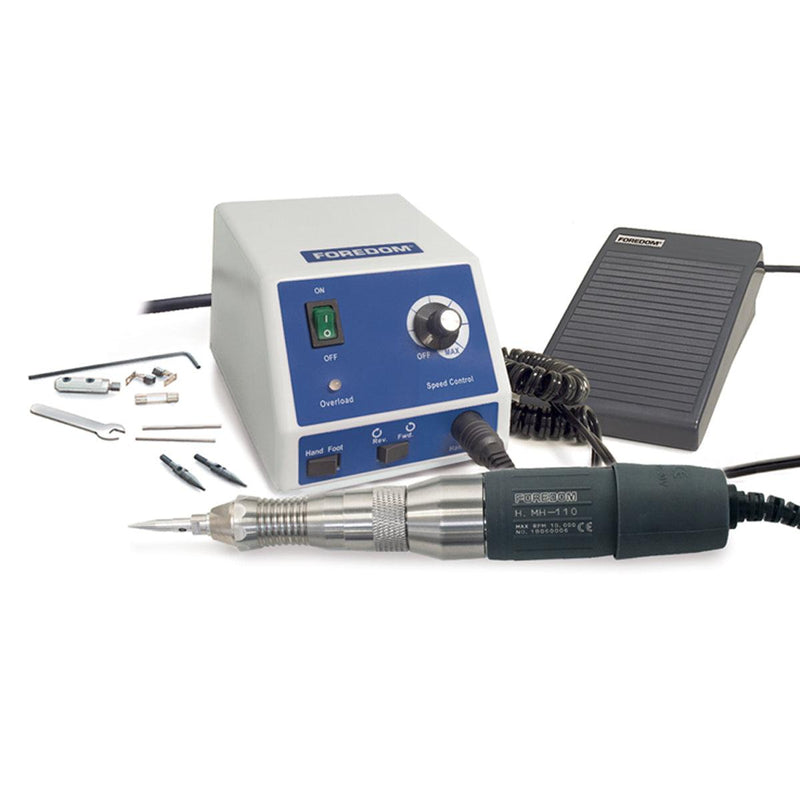

Foredom K.1080 Hammer Micromotor Kit-Ships Free

The Foredom K.1080 Adjustable Reciprocating Hammer Kit combines precision control and power for stone setting, engraving, and metal texturing. Featuring the H.MH-110 Hammer Handpiece and HP4-960 variable speed foot control, this dual-voltage micromotor system offers smooth, adjustable impact and stroke speed up to 2,500 strokes per minute. Designed for professional setters and engravers, it delivers quiet, vibration-free performance—no flexible shaft or air compressor required.

Key Features

• Adjustable reciprocating hammer action for precision stone setting, channel work, and engraving.
• Impact force control ring adjusts hammer strength from light to full power—on or off.
• Variable stroke speed: 0–2,500 strokes/minute with control dial; up to 5,000 RPM capability.
• Hammer action engages only under light pressure, allowing precise tool placement without marking the surface.
• Dual voltage (110/120 or 220/240V) with switchable power input for worldwide use.
• Includes HP4-960 Variable Speed Foot Control for brush-type motors.
• Outstanding Foredom quality—each unit tested for consistent performance and durability.

Specifications

Accessories Included

• Adapter for threaded anvil point (installed) — HPH8-32
• (3) Threaded anvil points — HP10177
• Graver holder — HPH8-214 (converts handpiece into a power engraver)
• Hex key (5/64") and 2 pins for tightening anvil points
• Open-end wrench (5 mm)
• Extra pair of motor brushes (HP4-163)

Performance & Operation

• Impact Control: Adjust force by rotating the knurled impact ring; test on similar metal for desired results.
• Forward-only operation: Always operate in forward mode to prevent damage to the handpiece.
• Brush maintenance: Replace carbon brushes when worn below 2 mm (~200 hours typical use).
• No lubrication required: Permanently lubricated bearings; do not oil.

Applications

• Stone setting and channel setting in gold, silver, and platinum.
• Engraving and stippling with optional graver holder.
• Metal texturing, beading, and forming fine detail work.

Safety & Care

• Always wear eye protection and avoid loose clothing or jewelry during use.
• Operate in a clean, dry environment; never immerse the handpiece in liquid.
• Do not run in reverse; doing so can permanently damage the handpiece.
• Use overload protection: if the red overload light activates, switch off, correct the condition, and restart after a brief pause.

What’s in the Box

• H.MH-110 Adjustable Reciprocating Hammer Handpiece
• HP4-960 Variable Speed Foot Control
• Three anvil points, graver holder, wrench, hex key, and pins
• Extra motor brushes
• Instruction manuals (H.MH-110 and K.1080)

Additional Information

For engraving use, install the included graver holder and adjust stroke speed between 1,000–2,500 spm for best control. Compatible with optional Foredom AK101 6-Piece Anvil Point Kit for varied textures and setting applications.
