Foredom K.TXH440 Industrial Flex Shaft Kit with Hanger

Part # 134.194HA
Save 15% Save 15%
Original price $656.29
Original price $656.29 - Original price $656.29
Original price $656.29
Current price $557.85
$557.85 - $557.85
Current price $557.85
by Foredom

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

Product Details

Free Shipping in the Continental USA. If ordered with non free shipping items you won't be charged shipping on this item, but you will have shipping charges for the other items and your order will ship ground standard shipping.

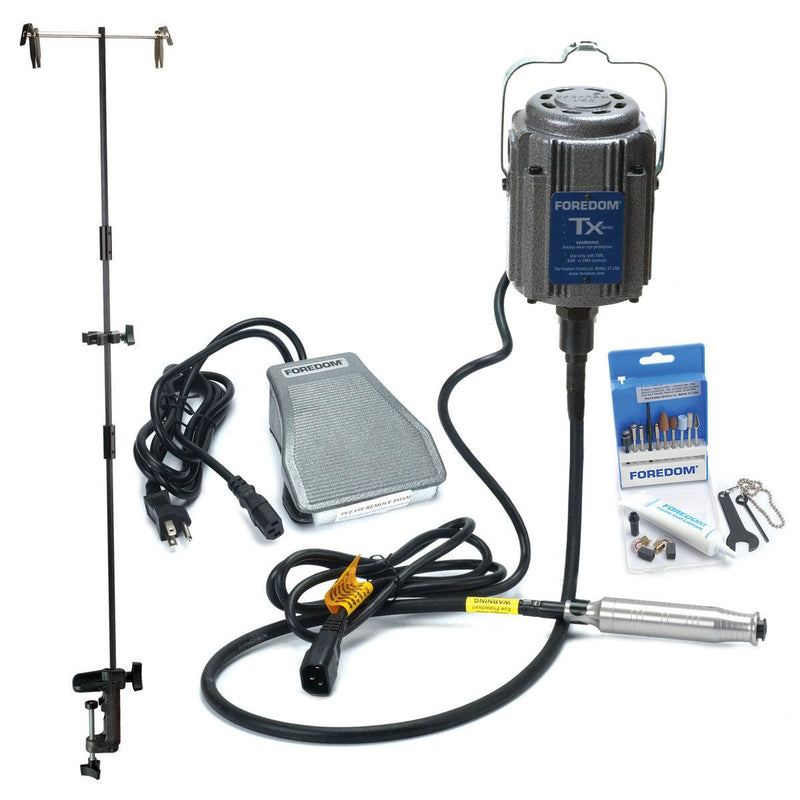

Foredom Industrial Flex Shaft Kit with Hanger

This Kit Includes:
- M.TXH Hi-Torque Motor with Sheath & Industrial Heavy Duty H Square Drive Shaft
- C.SXR Cast Iron Foot Operated Speed Control
- Heavy Duty H.44HT Handpiece (Use H Square Drive Handpieces Only-25H, 28H, 44HT (included) and 30H)

- MAMH-1 double flex shaft motor hanger with mounting clamp
- AKHK25 Accessory Kit - 10 pieces

TXH motors are NOT available in 230V.

This is the kit to buy if you want to use a flex shaft for heavy duty grinding, like porting on motorcycle and car heads or finishing large sculptures.

M.TXH Flex Shaft Motor: A heavy-duty version of Foredom's most powerful motor. The permanent-magnet M.TXH features the latest in flex shaft technology and delivers more torque throughout the entire speed range than any other flex shaft motor. It is rated at 1/3 hp and achieves a top speed of 15,000 rpm. The motor comes supplied with Foredom's S-10823 63-3/4" long* square drive inner shaft (Otto Frei 134.362B) and Foredom's S-10801TX 63" long heavy duty protective sheath (Otto Frei 134.372B). Square drive shaft and heavy duty protective sheaths can ONLY work with Foredom's four square drive handpieces-the H.25H, H.30H, H.44HT and the H.28H. The M.TXH Flex Shaft Motor has Foredom's 2 year factory warranty.

C.SXR Speed Control: is cast iron, painted with a gray powdercoat, and the extra weight provides greater stability. This foot operated speed control has special electronics and is for exclusive use with the M.TXH and other permanent magnet motors. It also carries a 2 year warranty.

H.44HT Handpiece: This special square drive, collet style handpiece is for exclusive use with our Series TXH, SRH and LXH heavy duty flex shafts. It comes with 3/32", 1/8" and 1/4" collets. The tapered design allows for close and safe work. This handpiece is not a member of the Foredom system of "quick disconnect" handpieces that require Key Tip style inner shafts.

The standard length Key Tip shaft found on most Foredom's is 39" in length, part number S-93. Other Key Tip shafts available are S-93-43 (46-3/8" in length), S-93-66 (66" in length). You can switch to any matching shaft and sheath combination with your Foredom SR, TX & LX based motor as you wish. Key tip shafts work with key tip handpieces only. Square drive shafts work with square drive handpieces only.



California Prop 65 Warning:
This product can expose you to chemicals including Acrylonitrile, Beryllium, Carbon Black, Lead, and Butadiene, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
