230V export version. For use in countries where 230V is standard. Sold with a North American 3-prong plug. If your local outlet requires a different plug, you will need to source an adapter locally.

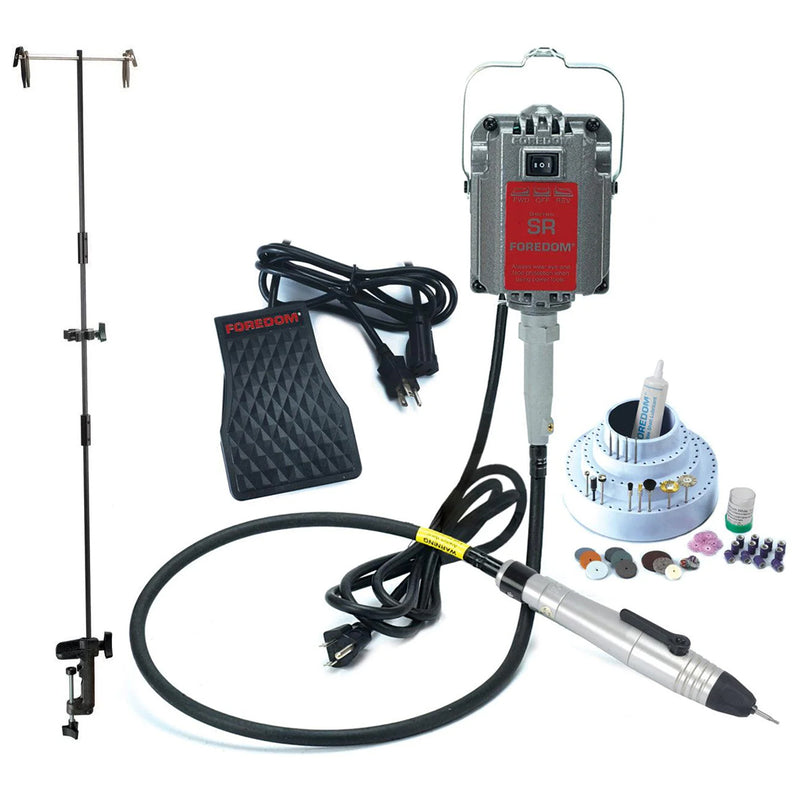

The Foredom K.2221-2 Flex Shaft Kit with Hanger is a complete professional rotary system built around the SR Series motor, designed for jewelers, metalsmiths, and craftspeople working in 230V environments. This kit pairs a powerful, reversible motor with a lever-style quick-change handpiece, a foot-speed controller, and a 43-piece accessory kit — everything needed to get to work right away.
The Foredom M.SR motor delivers 1/6 HP and runs up to 18,000 RPM, providing ample power to work through nearly any material without stalling under normal load. The motor uses ball bearings for smooth, reliable operation and connects via a Key Tip flexible shaft and matching sheath, compatible with a wide variety of Foredom and other manufacturers' Quick Disconnect (QD) USA-type handpieces. The motor can also be converted to Heavy Duty Square Drive or European standard Slip Joint use by fitting the appropriate shafts and sheaths (sold separately). Longer Key Tip shaft and sheath combinations — 43‑5/8" and 63‑1/4" lengths — are also available separately.
Features
-
Reversible motor: Run the motor forward or in reverse for expanded versatility.
- Reverse operation gives left-handed users greater control of cutting tools.
- Reverse keeps dust and debris directed away from right-handed users.
- Alternating motor direction extends the life of certain abrasives.
- Reverse aids symmetrical grinding and carving techniques.
- Reverse makes it easier to back out stuck drill bits.
- Alternating direction speeds up and simplifies metal polishing.
-
Foredom H.20 Lever-Style Handpiece: Fixed 3/32" collet opens and closes with a simple turn of the lever — no tools required.
- Compatible with 3/32" shank diameter burs and bits only.
- Quick-change design saves significant time when switching between burs and tools on the job.
- Includes the Foredom AK11 43-piece accessory kit with rotating bur and tool holder.
- Every Foredom motor includes a two-year warranty.
Caution: When using screw-top mandrels with unmounted polishing wheels, the reverse feature may unscrew the mandrel screw. Use only pre-mounted polishing wheels that are permanently mounted on mandrels when operating in reverse.
Specifications
| Motor Model |
Foredom M.SR |
| Motor Power |
1/6 HP |
| Maximum Speed |
18,000 RPM |
| Motor Type |
Ball bearing, reversible |
| Voltage |
230V |
| Plug Type |
North American 3-prong (adapter may be required) |
| Speed Control |
Foredom C.FCT-2 Foot Speed Control (230V) |
| Handpiece |
Foredom H.20 Lever-Style Quick Change |
| Collet Size |
Fixed 3/32" |
| Shank Compatibility |
3/32" diameter burs and bits only |
| Shaft Type |
Key Tip flexible shaft with matching sheath |
| Motor Warranty |
Two years |
What's Included
- Foredom M.SR 1/6 HP Reversible Motor (230V)
- Foredom C.FCT-2 Foot Speed Control (230V)
- Foredom H.20 Lever-Style Handpiece with fixed 3/32" collet
- Key Tip flexible shaft and matching sheath
- Foredom AK11 43-piece accessory kit with rotating bur and tool holder
- Hanger
