Foredom K.2272 Flex Shaft Kit-115V - Otto Frei

Foredom K.2272 Flex Shaft Kit-115V

Part # 134.205

Single unit weight: -- lbs / -- kg

Save 15% Save 15%
$546.36 - $546.36
$546.36
$464.41
$464.41 - $464.41
$464.41
by Foredom

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

Product Details

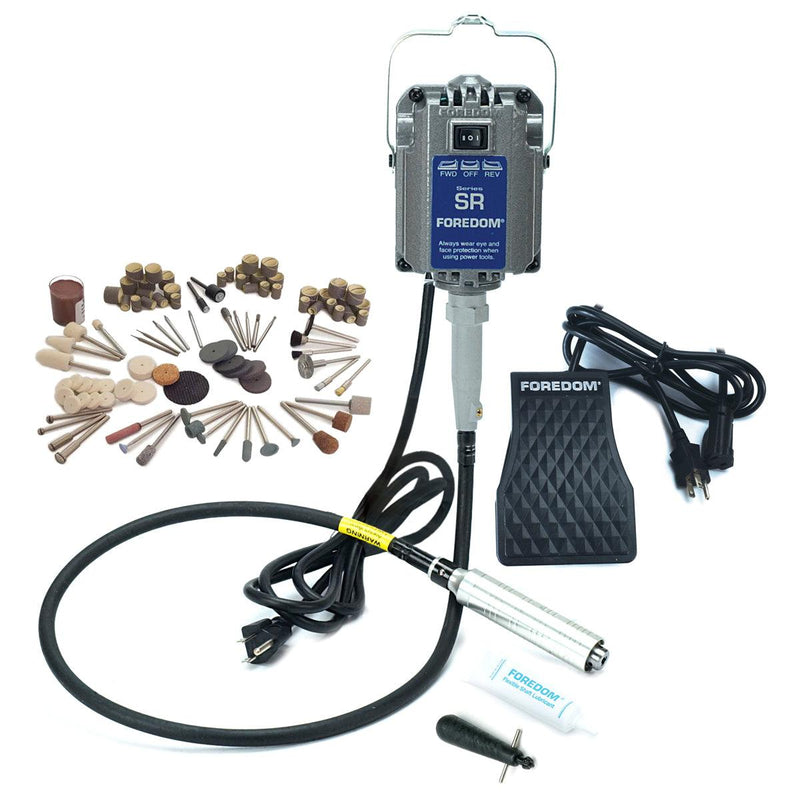

The Foredom K.2272 is a 115V flex shaft kit built around the reversible 1/6 HP M.SR motor with foot speed control and the versatile H.30 adjustable-chuck handpiece. It adds Foredom’s AK21 88-piece accessory assortment for grinding, shaping, and polishing. A practical upgrade from light-duty rotary tools, the SR motor delivers up to 18,000 RPM under normal load.

Key Features

  • Reversible 1/6 HP M.SR motor (up to 18,000 RPM) for forward/reverse operation
  • FCT foot-operated speed control for variable RPM
  • H.30 handpiece with adjustable Jacobs-style chuck (0–5/32" / 0–3.9 mm)
  • AK21 88-piece accessory kit for polishing and finishing
  • Standard flexible shaft and sheath for #30/H.30 style quick-disconnect handpieces
  • Two-year warranty on the SR motor (per Foredom)

What’s Included

Motor M.SR, 1/6 HP, reversible, max 18,000 RPM (115V)
Speed Control Foredom FCT foot control (115V)
Handpiece Foredom H.30 adjustable-chuck handpiece, 0–5/32" (0–3.9 mm)
Accessory Kit Foredom AK21 88-piece polishing/abrasive kit
Shaft & Sheath Standard SR-series flexible shaft and sheath (quick-disconnect compatible)

Specifications

Voltage 115V (North America)
Horsepower 1/6 HP
Speed Range 0–18,000 RPM (variable, foot control)
Direction Forward / Reverse
Collet/Chuck Capacity H.30 adjustable chuck: 0–5/32" (0–3.9 mm)
Warranty 2 years on SR motor (manufacturer)

Compatibility & Applications

  • Accepts most Foredom quick-disconnect handpieces compatible with SR-series shafts.
  • General jewelry/metals work: drilling, grinding, shaping, texturing, and polishing.

Notes & Safety

  • Reverse use: When using screw-top mandrels with unmounted wheels, reverse can loosen the screw. Use permanently mounted wheels in reverse.
  • Ships 115V configuration for USA/Canada/Mexico.
  • Ground shipping in the continental USA at no charge for this item when purchased alone; other items in the same order may incur standard ground shipping.
California Prop 65 Warning California Prop 65 Warning:
Cancer and Reproductive Harm. www.P65warnings.ca.gov.
