Foredom S-77 Standard Outer Sheath 36-1/4

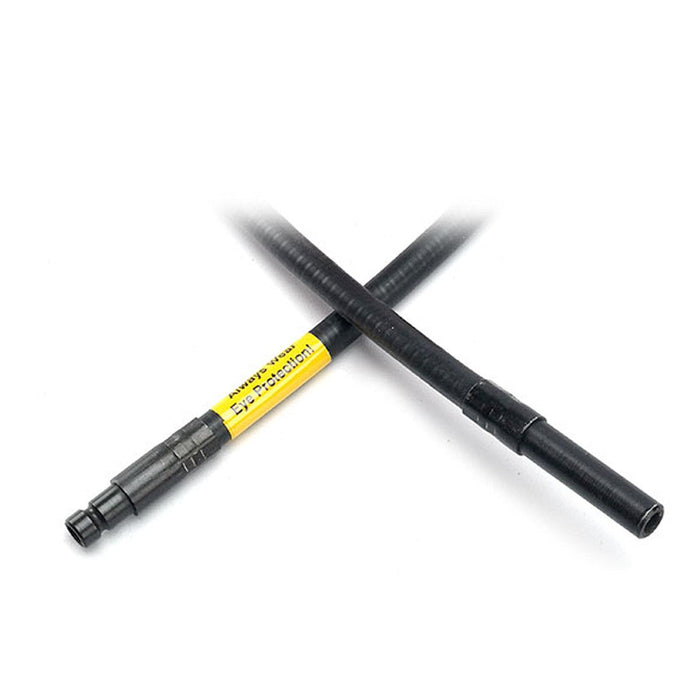

The Foredom S-77 Standard Outer Sheath is the most common outer sheath Foredom manufactures, measuring 36-1/4" in length. This is the standard sheath supplied with Foredom Series SR, TX, and LX motors, and is also compatible with several discontinued motor series. It forms the outer housing of the flexible shaft assembly and is designed to work with Foredom inner shafts S-93 and S-93-NC (Non-Conductive).

Also available in a Neoprene version (S-77N), which offers greater flexibility for applications where a softer, more pliable sheath is preferred.

Need a longer reach? Foredom's optional 63-1/4" outer sheath S-77-66 is available for SR, TX, and LX series motors and pairs with optional inner shafts S-93-66 or S-93-66NC.

Features

• Standard outer sheath supplied on Foredom Series SR, TX, and LX motors
• Compatible with discontinued Series SR (1/8 HP), S, CC, R, K, 900, and 990 motors
• Designed to pair with inner shafts S-93 and S-93-NC (Non-Conductive)
• Most common outer sheath in the Foredom lineup — ideal replacement or spare
• Also available in a Neoprene version (S-77N) for added flexibility
• Optional 63-1/4" length available as S-77-66 for extended reach applications

Specifications

Notes

• Does not fit the L, H, PG, EE, or F Series motors.
• For a more flexible option, see the Neoprene version: S-77N (part 134.373).
• For extended reach on SR, TX, or LX series motors, the 63-1/4" sheath S-77-66 (part 134.370-66) pairs with inner shafts S-93-66 or S-93-66NC.
