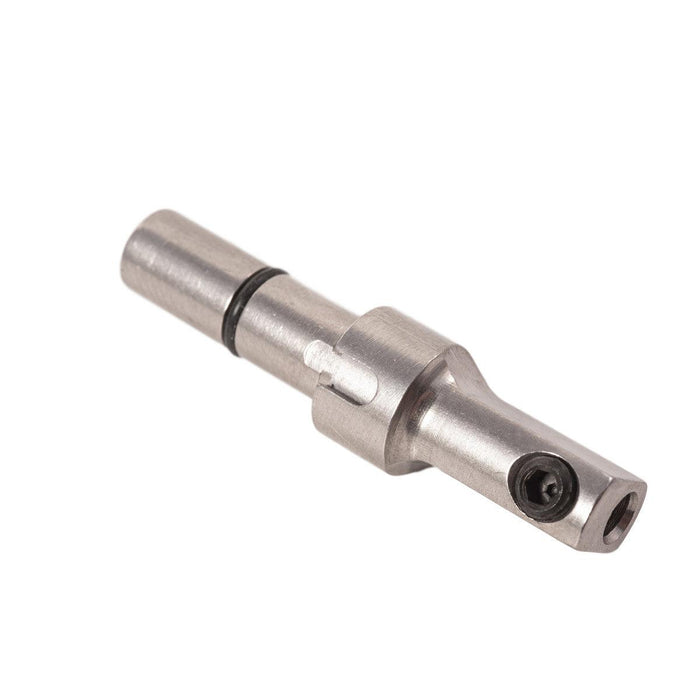

Fox QC-L3 Quick Change Long Tool Holder With 1/8" (3.17mm) Hole

This American made quick charge tool holder is made from solid billet aluminium.  They are used with the Fox Quick Change Graver Handles, available in either Pear Shape (136.610) or Round Shape (136.612).  See links below.

This is the Fox QC-S3 Quick Change Long Tool Holder With 1/8" (3.17 mm) Hole.  The Long Holder is 40 mm total length, with 20 mm extending from the Graver Handle when installed.  A key slot keeps the tool holder from rotating on the Graver Handle and a small O-ring on the tool holders 1/4" diameter shank makes for a snug fit.  Tools are kept in place by a single hex nut which uses a 2 mm (5/64") hex key, they same key that is used for the GRS QC Tool Holders. Also available in short and extra long versions and in short, long and extra long versions with 3/32" (2.38 mm) holes. Hex key is not supplied and are available separately.
