Glardon-Vallorbe Half-Round Escapement Files - LE3008

Part # LE3008-40-2 16 In Stock Weight -- lb -- g
Current price $25.85
Volume pricing
Total qty Discount Per unit You save
1 – 2 $25.85
3 – 5 5% off $24.56 $1.29
6 – 11 10% off $23.26 $2.59
12 + 20% off $20.68 $5.17
Add 2 more for 5% off, saves another $1.29 each.
GV - Length & Cut (Escapement): 40-2

Description

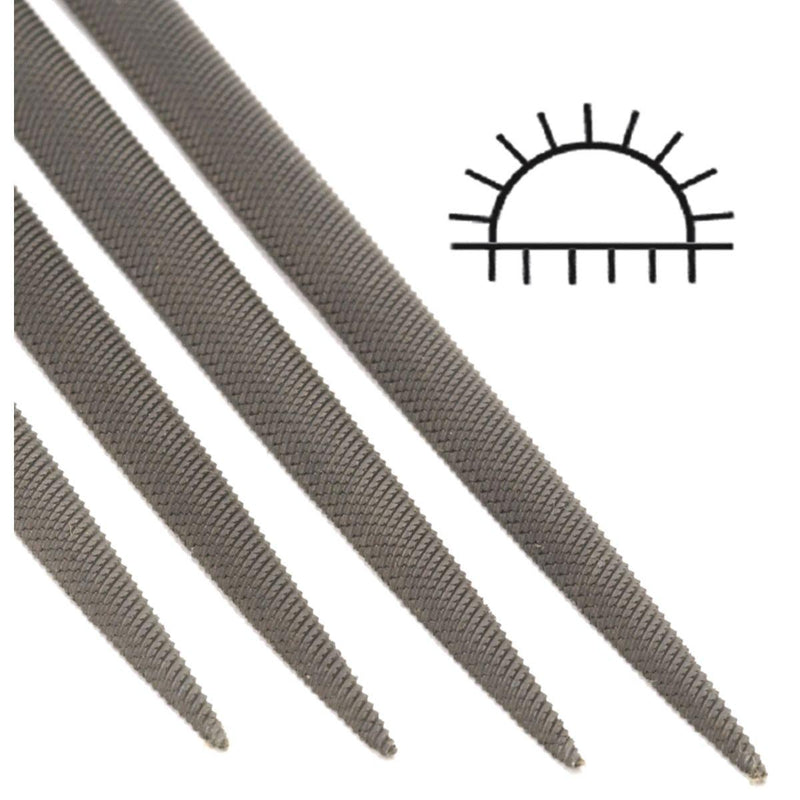

Glardon-Vallorbe Half-Round Escapement Files (LE3008) are Swiss-made precision files designed for watchmakers, jewelers, and metalsmiths demanding the highest level of accuracy and finish. Also known as watchmakers files, these half-round files are tapered in both width and thickness, coming to a rounded point at the tip, and are cut on both sides for versatile material removal. The square handle provides a secure, controlled grip during fine detail work.

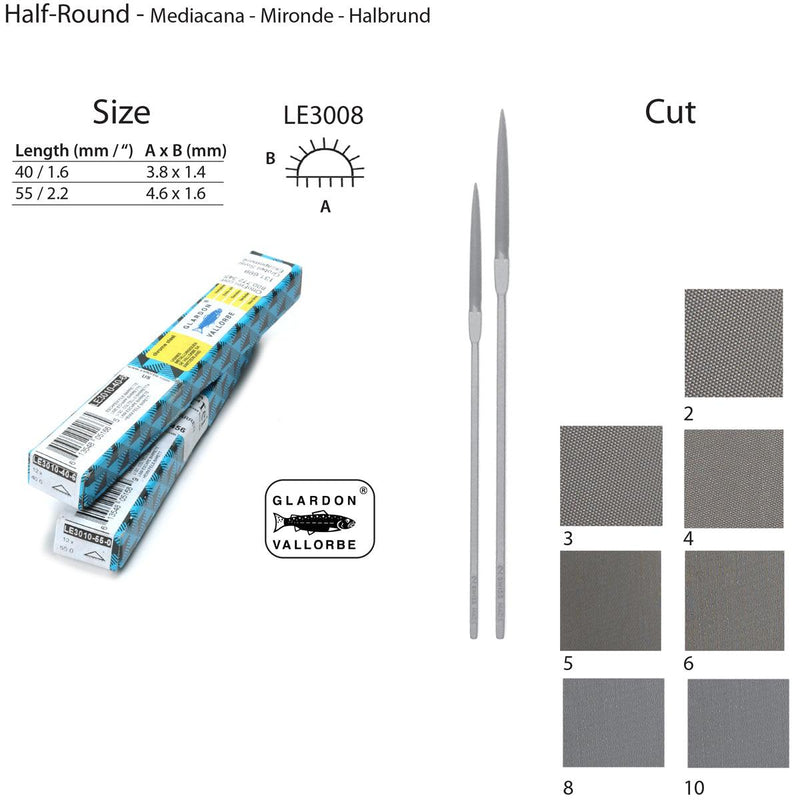

Escapement file lengths are measured from the tip to the end of the cut β€” the tang is not included in this measurement. Dimensions given are at the thickest point. These files are identified internationally as Half Round – Mediacana – Mironde – Halbrund.

Manufactured using a combination of machine cutting and hand craftsmanship, Glardon-Vallorbe files are produced from the finest heat-tempered, chrome alloy steel. They are graded by cut number: the higher the number, the finer the cut. Cut grades range from #2 (Medium) through #10 (XXXFine), allowing professionals to select the precise tooth geometry required for each task.

Features

  • Half-round profile tapered in width and thickness to a rounded tip
  • Cut on both the flat and rounded sides
  • Square handle for secure grip and control
  • Graded cut system: higher number = finer cut (#2 coarsest, #10 finest)
  • Length measured tip to end of cut β€” tang not included
  • Made from heat-tempered, chrome alloy steel
  • Swiss Made to precise production standards
  • Available in two cut lengths and six cut grades

Specifications

Series LE3008
File Type Half-Round Escapement (Watchmakers) File
Profile Tapered in width and thickness, cut on both sides, rounded tip
Handle Style Square
Material Heat-tempered, chrome alloy steel
Origin Swiss Made
Length Measurement Tip to end of cut (tang not included)
40mm Cut Length Dimensions 3.8mm wide Γ— 1.4mm thick (at thickest point)
55mm Cut Length Dimensions 4.6mm wide Γ— 1.6mm thick (at thickest point)
Cut Grades Available #2 Medium, #3, #4 Fine, #5 Med-Fine, #6 XFine, #8 XXFine, #10 XXXFine

Available Options

Part # Cut Length Cut # Cut Description
LE3008-40-2 40mm / 1.6" #2 Medium
LE3008-40-4 40mm / 1.6" #4 Fine
LE3008-40-6 40mm / 1.6" #6 XFine
LE3008-40-8 40mm / 1.6" #8 XXFine
LE3008-55-2 55mm / 2.2" #2 Medium
LE3008-55-3 55mm / 2.2" #3 β€”
LE3008-55-4 55mm / 2.2" #4 Fine
LE3008-55-5 55mm / 2.2" #5 Med-Fine
LE3008-55-6 55mm / 2.2" #6 XFine
LE3008-55-8 55mm / 2.2" #8 XXFine
LE3008-55-10 55mm / 2.2" #10 XXXFine

Specifications

Brand
Glardon-Vallorbe
Part #
LE3008-40-2
Type
Files
Country of Origin
Switzerland
Dimensions
7 in x 0.1 in x 0.1 in
Series
LE3008
File Type
Half-Round Escapement (Watchmakers) File
Profile
Tapered in width and thickness, cut on both sides, rounded tip
Handle Style
Square
Material
Heat-tempered, chrome alloy steel
Length Measurement
Tip to end of cut (tang not included)
40mm Cut Length Dimensions
3.8mm wide Γ— 1.4mm thick (at thickest point)
55mm Cut Length Dimensions
4.6mm wide Γ— 1.6mm thick (at thickest point)
Cut Grades Available
#2 Medium, #3, #4 Fine, #5 Med-Fine, #6 XFine, #8 XXFine, #10 XXXFine
