Glardon-Vallorbe Joint Round Edge Precision Files - LP1170/LP1171

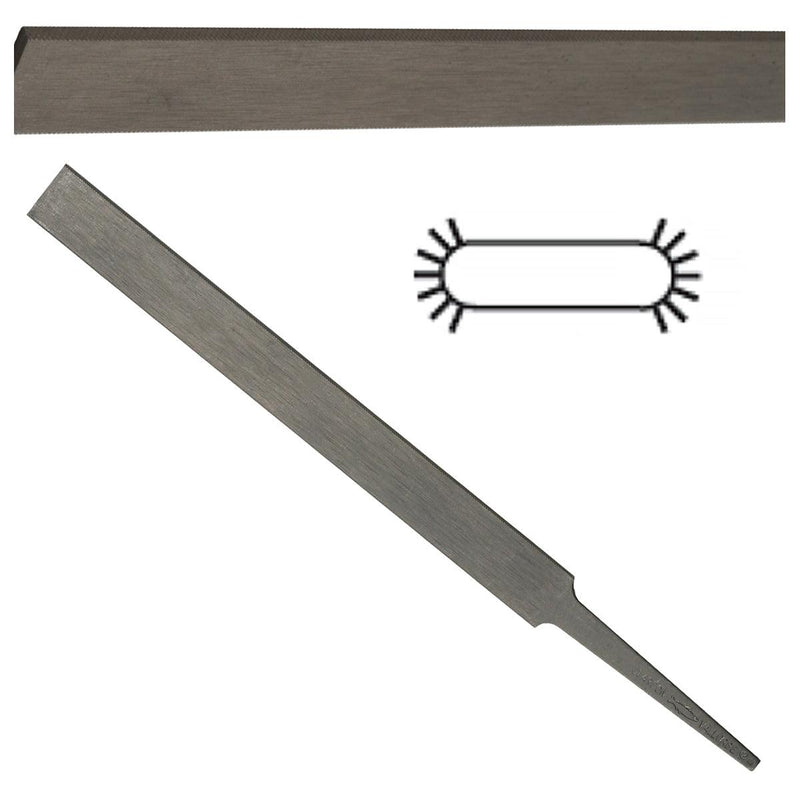

LP1170 and LP1171 Joint Round Edge files from Glardon-Vallorbe are parallel in width and thickness, with rounded edges. These files are cut on the edges only. They are used for getting into thin narrow spaces where they will file depth wise but not any wider than you want. Jewelers need them for fabricating joints, hinges and tubing. Also used in guitar repair and servicing as bridge & nut slotting files.

Joint Round Edge files (Chenier files) are only made in cut 2 medium. The cut length is 100 mm (4") by 10 mm (0.39") width. Choose from a variety of thicknesses, from 0.3 mm (0.012") to 2.0 mm (5/64" or 0.079") thick. Overall length including tang is 5-5/8". Can be used with file handles 137.781 (Vallorbe Blue Plastic Size #1) & 137.815-34 (Vallorbe Condor 3-4 mm).

How to read the factory part numbers for Joint Round Edge Files

4-2-0.3 translates into: 4 (Inches)-2 (Cut)-0.3 mm (Thickness)

Things you should know about ordering hand files:

Glardon-Vallorbe Swiss Made Precision Files are measured from the point where the teeth begin to the end of the file. A 6" half-round ring file will measure 8-1/2" long from tip to end of tang, but it is called a 6" file.

Glardon-Vallorbe Swiss Made Precision Files are graded with a number from 00 for coarsest to 6 for finest. Remember, the higher the number the finer the cut.

*Factory Gauge number given is closest British Wire Gauge/Stubs Wire Gauge (BWG/SWG) and not the American Standard B&S Gauge.  Metric size given is accurate.

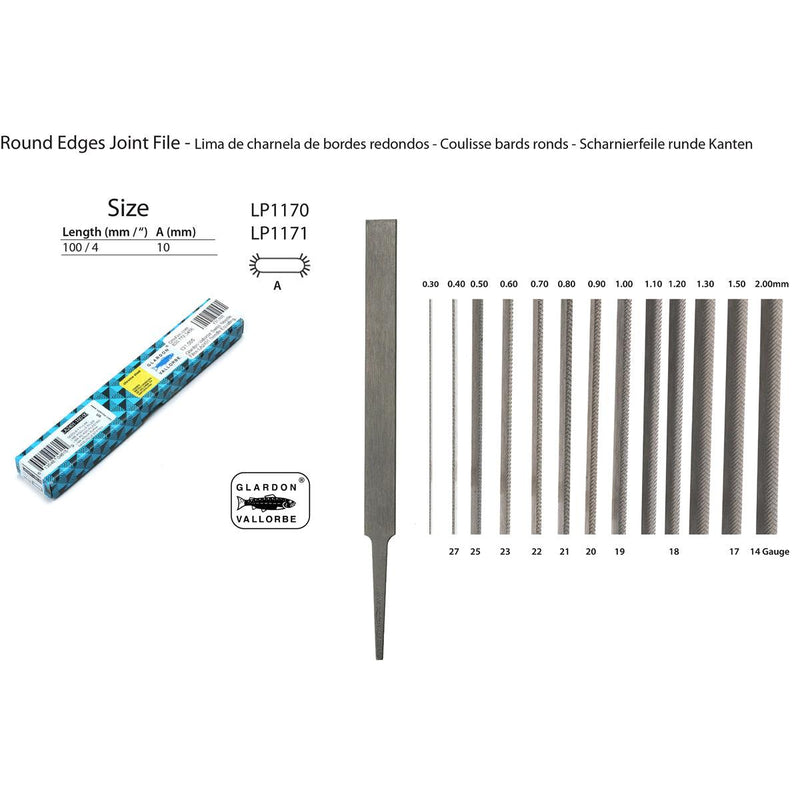

Part No.	Legacy Part No.	Thickness (mm)	Gauge(SWG)*
LP1170-2-0.3	131.169.5	0.30	N/A
LP1170-2-0.4	131.169	0.40	27
LP1170-2-0.5	131.168	0.50	25
LP1170-2-0.6	131.167	0.60	23
LP1171-2-0.7	131.166	0.70	22
LP1171-2-0.8	131.165	0.80	21
LP1171-2-0.9	131.164	0.90	20
LP1171-2-1.0	131.163	1.00	19
LP1171-2-1.1	131.162.5	1.10	N/A
LP1171-2-1.2	131.162	1.20	18
LP1171-2-1.5	131.161	1.50	17
LP1171-2-2.0	131.160	2.00	14

Glardon-Vallorbe Swiss Made Precision Files-The world's standard for quality and performance!

Glardon-Vallorbe Swiss Made Precision Files are manufactured to precise production standards, using a combination of machine cutting and hand craftsmanship to produce the most accurate, best cutting, and longest-lasting files in the world. They are made of the finest heat-tempered, chrome alloy steel and have the "right" feel, action and balanced desired by all true craftsmen.

Glardon-Vallorbe Swiss Made Precision Files deliver superior performance on all metals. Simply the best you can buy! Formerly distributed by Grobet USA under the brand name Grobet Swiss.

*Factory Gauge number given is closest British Wire Gauge/Stubs Wire Gauge (BWG/SWG) and not the American Standard B&S Gauge.  Metric size given is accurate.
