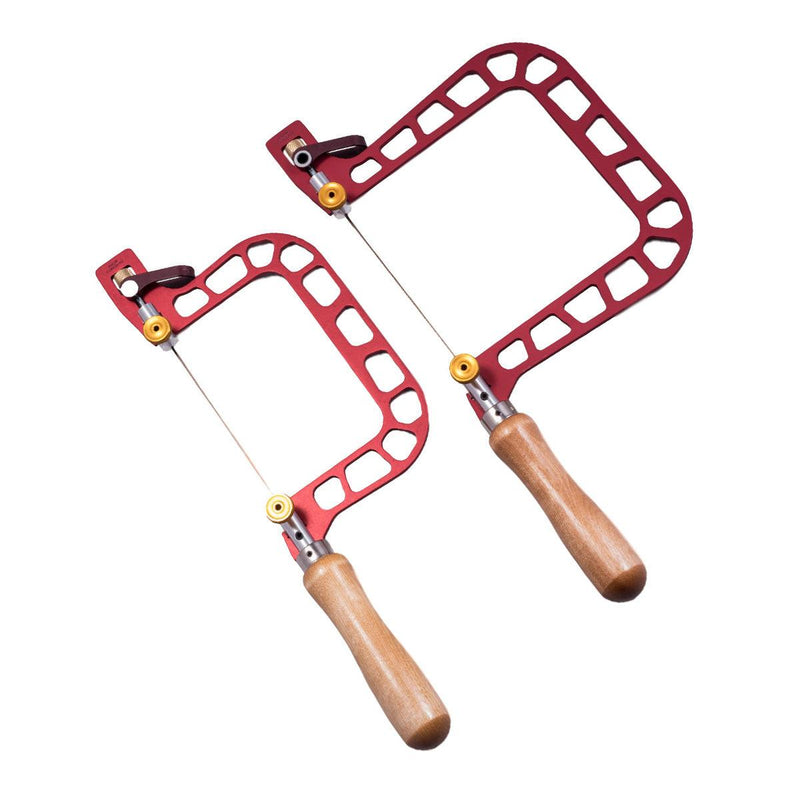

Knew Concepts Cam Tension Jewelers Precision Sawframes

Original Knew Concepts precision saw frames with the cam-lever tensioning system for ultra-fast, repeatable blade changes. Set your preferred blade tension once with the fine knob, then flip the lever forward to release and back to return to the same tension. The rigid, heat-treated aluminum truss frame minimizes flex to reduce blade breakage and improve tracking on intricate pierce work.

Choose Your Throat Depth

Key Features

• Cam-lever quick tension—rapid, repetitive blade swaps without losing your fine setting.
• Fine tension knob—dial in the blade “ping,” then use the lever for on/off tensioning.
• Rigid, lightweight frame—heat-treated aluminum minimizes flex and hand fatigue.
• Lever-activated blade holders at both ends for quick, secure clamping.
• Accepts standard un-pinned jeweler’s blades (approx. 5-1/8" length), including spiral blades.
• Reversible clamp knobs accommodate right- or left-handed users.

How to Tension & Install Blades

1. Loosen both blade clamps; insert the blade with teeth pointing down and out.
2. Close the cam lever to tension; fine-tune with the knob until the blade “sings.”
3. For the next blade, flip the lever forward/back—no re-tuning needed unless blade size/length changes.

Fret vs. Coping (Blade Compatibility)

• Fret/Jeweler’s saws use shorter, un-pinned blades for tight turns and precision in metal or wood.
• Coping saws are larger and use pinned blades only—coping blades do not fit fret/jeweler’s frames.

Why Blade Tension Matters

Any frame saw exists to hold a fine, toothed “wire” tight and straight. Proper tension keeps the teeth cutting where you aim, not where material grain or burrs try to pull the blade—improving control, cut quality, and blade life.

Setup Tips & Troubleshooting

• If the lever resists closing, don’t force it—back off the fine knob slightly, then close.
• Blade slipping? Clean the clamp faces and re-align the anvil screw so the blade seats straight.
• Hands sensitive to small knobs? A slip-on foam grip (optional accessory) can increase handle diameter without weight.
• End of day: you can leave the blade taut, but flipping the lever to slacken for storage is quick and gentle on blades.

What’s Included

• Knew Concepts cam-lever saw frame in selected throat depth
• Instruction sheet (lever-tension version)

Also Consider

Need deeper reach? Knew Concepts offers 8" Mk IV heavy-duty frames (sold separately) with reinforced geometry for reduced flex at greater throat depth.
