Knew Concepts Heavy Duty Steel Bench Pin Riser-10 Lbs.

Knew Concepts Heavy Duty Steel Bench Pin Riser-10 Lbs.

Part # 149.672

Single unit weight: -- lbs / -- kg

Sold out
$215.00 - $215.00
$215.00
$215.00 - $215.00
$215.00
Availability:
Out of stock
by Knew Concepts

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

Product Details

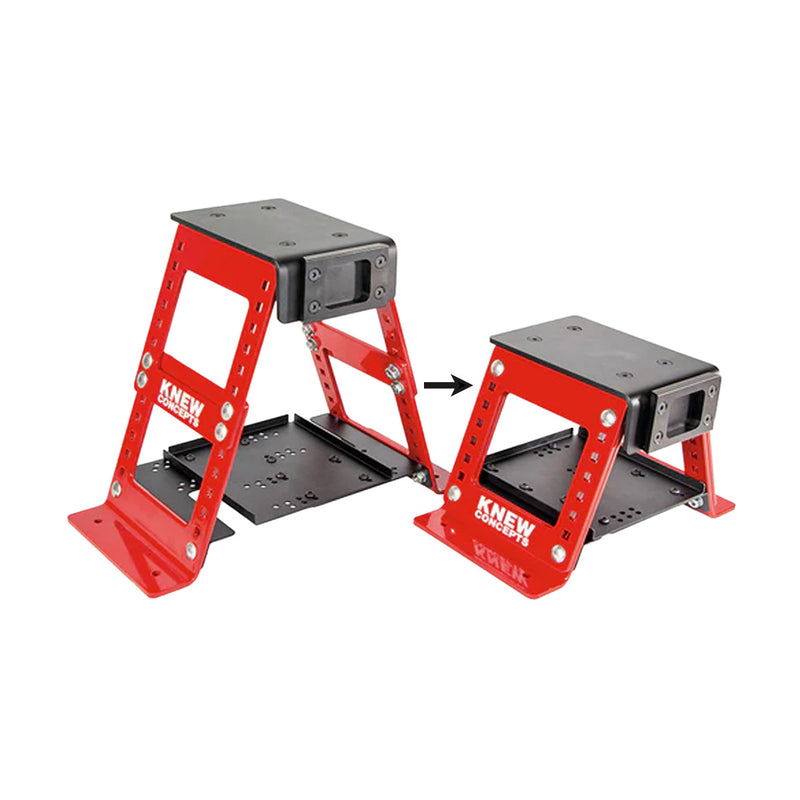

This heavy duty steel bench pin riser lifts your dovetail bench pin up to a true jewelry-bench height, so you can saw, file, and set with your work near eye level instead of hunched over a low table. Designed by a working jewelry instructor for real classroom conditions, it turns any standard table into a rock-solid, ergonomic bench in seconds.

Features

  • Adjustable riser that raises dovetail-mounted bench pins and fixtures from approximately 6.5" to 10.25" above the tabletop.
  • Height adjusts in precise 1/2" increments so you can dial in a comfortable, ergonomic working position.
  • Built from 3/16" solid steel panels for exceptional rigidity, eliminating flex, wobble, and shifting during sawing and setting.
  • Secures to the table by screws for a permanent station or by C-clamps for a removable, portable setup (C-clamps not included).
  • Ideal for turning standard-height classroom, studio, or household tables into professional-quality jewelry workstations.
  • Helps reduce neck and back strain caused by working at a too-low bench pin, supporting healthier long-term bench habits.
  • Designed around real classroom needs by a jewelry instructor who needed stable dovetail mounts on non-adjustable school tables.
  • Compatible with standard dovetail system tools, including GRS BenchMate® tools and other dovetail-fitting fixtures.

Specifications

Detail Value
Product Type Heavy duty steel bench pin riser
Height Range Above Table 6.5"–10.25" (approx. 165–260 mm)
Height Adjustment Increments 1/2" (approx. 12.7 mm)
Main Panel Thickness 3/16" (approx. 4.8 mm) steel
Approximate Weight 10 lb (approx. 4.5 kg)
Mounting Options Screw-down or C-clamp (C-clamps not included)
Bench Pin Interface Standard dovetail mount for dovetail system tools
Typical Use Raising bench pins on standard-height tables in studios, schools, and home workshops
Brand Knew Concepts

What's Included

Item Description Qty
Heavy duty bench pin riser Steel riser with adjustable height and dovetail mounting face 1

Compatibility

System Details
Dovetail tools Compatible with Knew Concepts dovetail mount tools and fixtures
GRS BenchMate® Accepts GRS BenchMate® tools and other standard dovetail-fitting tools
Work Surfaces Standard-height tables and benches in studios, classrooms, and home environments

The Backstory:

This riser grew out of a real classroom problem: Brian, the designer behind Knew Concepts, teaches jewelry at a college where the studio only has fixed-height tables that are far too low for serious bench work. Homemade towers helped with height but could not mount modern dovetail fixtures. The solution was a purpose-built steel tower that accepts dovetail tools, is strong enough for daily student abuse, and clamps on or off quickly so shared tables stay flexible.

Notes

Clamp or screw the riser securely to your table before use, then adjust the height so your bench pin sits near chest level for comfortable sawing and setting. Because table thickness and edges vary, choose C-clamps locally that match your specific setup for the most secure hold.
