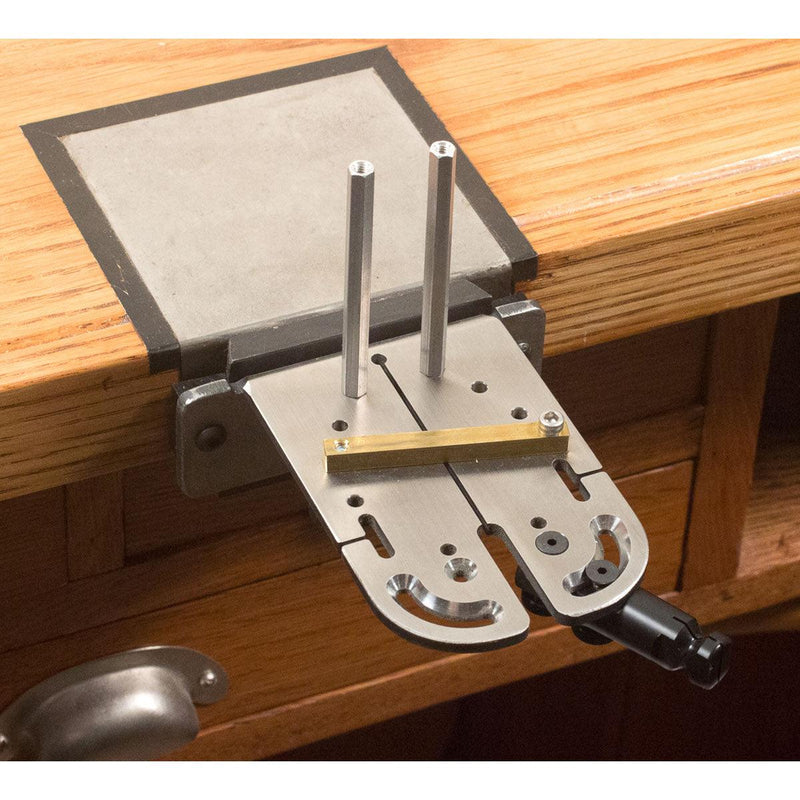

Knew Concepts Stainless Steel Bench Pin

The Knew Concepts Stainless Steel Bench Pin gives jewelers a rigid, low-profile platform for precise sawing, drilling, and filing. Machined from a solid 3/16" stainless plate, it resists bounce while staying thin enough not to interfere with your full stroke—and won’t contaminate sweeps if you nick it. Fits the standard GRS-style dovetail mount or pairs perfectly with the Knew Concepts Dovetail Bench Clamp for portable use.*

Key Features

• Rigid stainless construction: 3/16" thick for excellent support with minimal vibration*
• GRS-style dovetail compatible: mounts to common jeweler’s dovetail plates*
• Adjustable Delrin ring hook: set the angle for right- or left-handed use; reversible and replaceable*
• Brass angle fence: guides cuts and filing at 0–60° in 15° increments for precise sizing and trimming*
• Guide posts (2): align a #30 handpiece for fast, perpendicular drilling*
• Piercing-optimized openings: narrow slots support the workpiece close to the cut to reduce blade breakage*
• Made in the USA*

What’s Included

Use Tips

• For piercing, keep the cut close to a support wall to reduce blade breakage*
• Adjust the brass fence angle quickly using the indexed holes for repeatable results*
• Position guide posts to suit the clearance of your handpiece and workpiece*

*For full setup, adjustment, and maintenance instructions, download the owner’s manual from the “Downloads” tab on this page.
