Matched Hardwood Dapping Die & Punch Set

Wood Dapping Die & Punch Set With 10 hemispheres Plus 10 Matching Punches

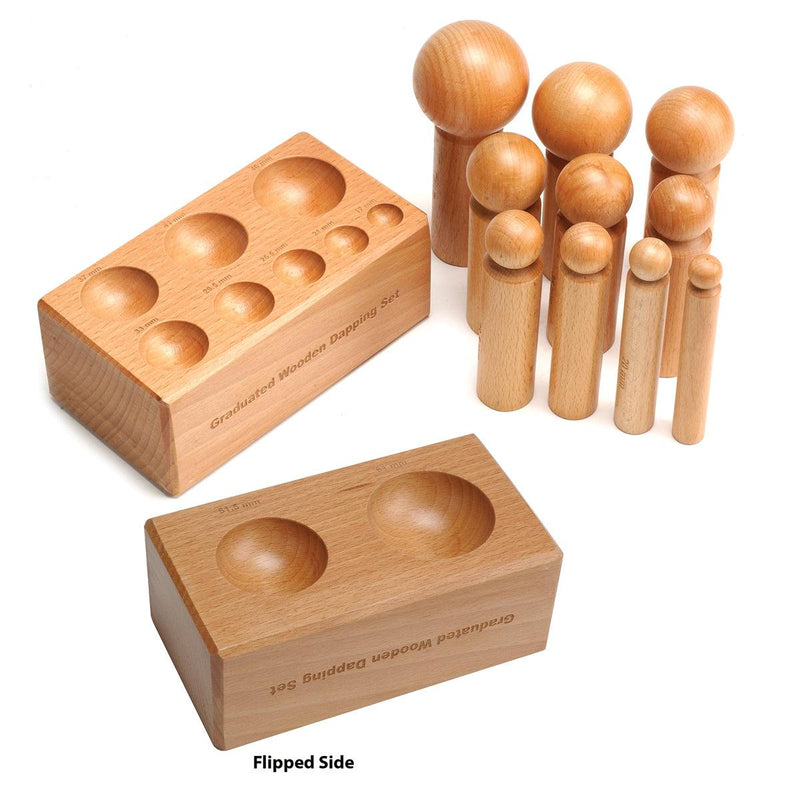

This nicely made and finished matched dapping die & punch set includes a wood dapping block with 10 hemispheres and 10 matching wood punches. The dimensions of the hemispherical depressions are marked in metric sizes 17mm, 22mm, 25.5mm, 29.5mm, 33mm, 37mm, 41mm, 46mm, 51.5mm and 61mm. There are 8 depressions on one side of the wood dapping block and 2 depressions on the flip side of the block. Each depression has a matching round wood dap that is slighlty smaller in diameter than the depresssion they match with. The punches are marked 16mm, 20mm, 24.5mm, 28.5mm, 32mm, 36mm, 40mm, 45mm, 50.5mm & 60mm. The range of the depressions are from approximately 5/8" to 2-3/8". The wood dapping block is made from a solid piece of wood and measures 7" long by 3-3/4" wide by 2-3/4" tall. Made in India.

Punch / Depression Metric to Fractional Inch Conversion:

• Punch 16mm 5/8"/ Depression 17mm
• Punch 20mm 13/16"/ Depression 21mm
• Punch 24.5mm 1"/ Depression 25.5mm
• Punch 28.5mm 1-1/8"/ Depression 29.5mm
• Punch 32.5mm 1-1/4"/ Depression 33mm
• Punch 36mm 1-3/8" / Depression 37mm
• Punch 40mm 1-1/2"/ Depression 41mm
• Punch 45mm 1-3/4"/ Depression 46mm
• Punch 50.5mm 2"/ Depression 51.5mm
• Punch 60mm 2-3/8"/ depression 61mm

Metric measurements given are exact, inch measurements given are approximate.
