Otto Frei TAIG Micro Lathe II-Completely Assembled & Pre-Wired

Part # 141.100

Single unit weight: -- lbs / -- kg

$825.00 - $825.00
$825.00
$825.00 - $825.00
$825.00
by TAIG Tools

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

Product Details

The Otto Frei TAIG Micro Lathe II arrives fully assembled and pre-wired for fast setup. Built on TAIG’s rugged, low-runout platform, it handles both controlled fine cuts and confident material removal in small metals. Includes motor, mounting board, workholding, and starter tooling—ideal for jewelry, modelmaking, and precision bench work.

Key Features

  • Ready to run: factory-assembled lathe with pre-wired 1/4 HP motor (115 V).
  • Precision control: overall working accuracy to 0.0005"; cross slide dial graduations 0.001".
  • 6-step V-belt drive: broad speed selection with stable torque.
  • Quick setup & versatility: adjustable tool post for chamfering, boring, and general turning.
  • Includes workholding & tooling: 3-jaw chuck, tailstock drill chuck, arbor, belt, and HSS tool set.
  • 1-year warranty on parts and labor.

Specifications

Working Accuracy 0.0005 in (0.013 mm)
Cross Slide Dial Graduation 0.001 in (0.025 mm)
Drive 6-step V-belt
Motor 1/4 HP, 1725 rpm, 115 V
Dimensions (on board) 18" W × 12" D × 7" H (457 × 305 × 178 mm)
Shipping Weight 20 lb (9.1 kg)
Swing Over Bed 4-1/2" (114.3 mm); Optional riser to 6" (152.4 mm)
Swing Over Cross Slide 2-3/8" (60.3 mm); Optional 3-7/8" (98.4 mm)
Bed Length / Width 15" (381 mm) / 2-5/16" (58.7 mm)
Distance Between Centers 9-3/4" (247.7 mm)
Carriage Travel / Cross Slide Travel 9" (228.6 mm) / 1-3/4" (44.5 mm)
Overall Lathe Length 16-1/2" (419.1 mm)
Tool Bit Size 1/4" (6.35 mm)
Tailstock Drill Chuck Capacity 0–1/4" (0–6.35 mm)
Spindle Nose / Through Hole 3/4"-16; 0.343" (8.71 mm) bore
Spindle Bearings Sealed precision ball bearings
Max Recommended Spindle Speed 7,000 rpm

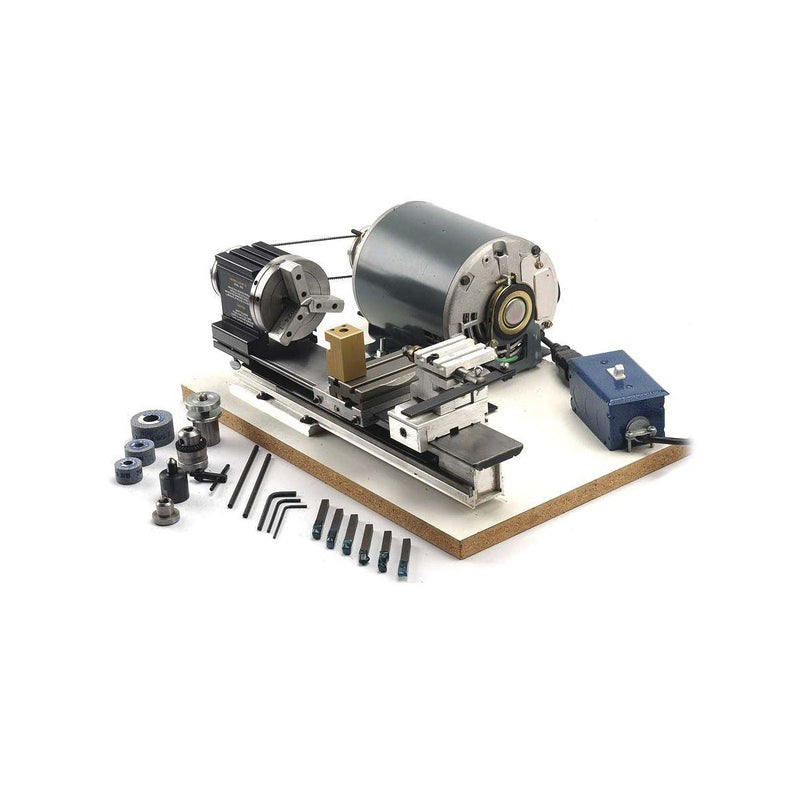

What’s Included

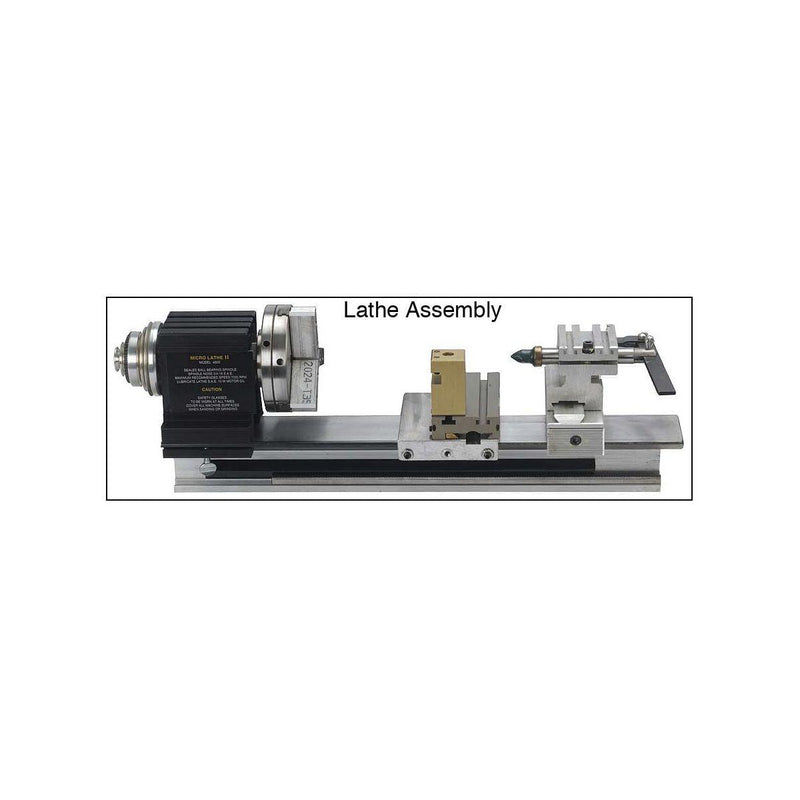

Completely Assembled Lathe TAIG 1017ER basic unit with tool post, 15" bed (factory assembled)
Drilling Tailstock TAIG 1150 tailstock with lever & dead center (for drill chuck)
Mounting Board TAIG 1023 mounting board
Motor Mount TAIG 1022 motor bracket with hardware
Motor 1/4 HP, 1725 rpm, 115 V
Pulleys & Belt Two 6-step pulleys with 3M-500 belt
3-Jaw Chuck (3-1/4") Steel body 3-jaw chuck
Drill Chuck Arbor 3/8-24 thread mount arbor
Tailstock Drill Chuck 0–1/4" Jacobs-style chuck (3/8"-24)
Bonus Tool Bit Set 6-piece HSS set (left, right, round nose, boring bar, cutoff, 45° chamfer)
Bonus Grinding Arbor Arbor screws directly to spindle
Bonus Grinding Wheels Grinding wheel set
Bonus Replacement Belt Gates polyurethane V-belt (large)

Related Option

Notes

  • 115 V model as supplied. Verify voltage and plug type for your location.
  • Optional riser and swing-increasing accessories are available separately.
