Otto Frei TAIG Micro Lathe II Kit-Basic Mechanical & Wiring Skills Required for Assembly - Otto Frei
Otto Frei TAIG Micro Lathe II Kit-Basic Mechanical & Wiring Skills Required for Assembly - Otto Frei

Otto Frei TAIG Micro Lathe II Kit-Basic Mechanical & Wiring Skills Required for Assembly

Part # 141.105

Single unit weight: -- lbs / -- kg

$745.00 - $745.00
$745.00
$745.00
$745.00 - $745.00
$745.00
Availability:
In stock
by TAIG Tools

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

Product Details

This TAIG Micro Lathe II kit includes the same core components as our fully assembled 141.100 lathe—packed as a cost-saving kit for customers comfortable with basic assembly and light wiring. You will wire the motor to the on/off switch and mount components to the pre-drilled board. A setup video is available, and our repair department can answer questions.

Key Features

  • DIY savings: build the system yourself and save over our pre-assembled package.
  • Precision platform: overall working accuracy to 0.0005"; cross slide dial graduations 0.001".
  • 6-step V-belt drive: broad speed selection with stable torque.
  • Includes motor, workholding & starter tooling for immediate use after assembly.
  • 1-year warranty on parts and labor.

Specifications

Working Accuracy 0.0005 in (0.013 mm)
Cross Slide Dial Graduation 0.001 in (0.025 mm)
Drive 6-step V-belt
Motor 1/4 HP, 1725 rpm, 115 V
Dimensions (on board) 18" W × 12" D × 7" H (457 × 305 × 178 mm)
Shipping Weight 20 lb (9.1 kg)
Swing Over Bed 4-1/2" (114.3 mm) — optional riser to 6" (152.4 mm)
Swing Over Cross Slide 2-3/8" (60.3 mm) — optional 3-7/8" (98.4 mm)
Bed Length / Width 15" (381 mm) / 2-5/16" (58.7 mm)
Distance Between Centers 9-3/4" (247.7 mm)
Carriage Travel / Cross Slide Travel 9" (228.6 mm) / 1-3/4" (44.5 mm)
Overall Lathe Length 16-1/2" (419.1 mm)
Tool Bit Size 1/4" (6.35 mm)
Tailstock Drill Chuck Capacity 0–1/4" (0–6.35 mm)
Spindle Nose / Through Hole 3/4"-16; 0.343" (8.71 mm) bore
Spindle Bearings Sealed precision ball bearings
Max Recommended Spindle Speed 7,000 rpm

What’s Included

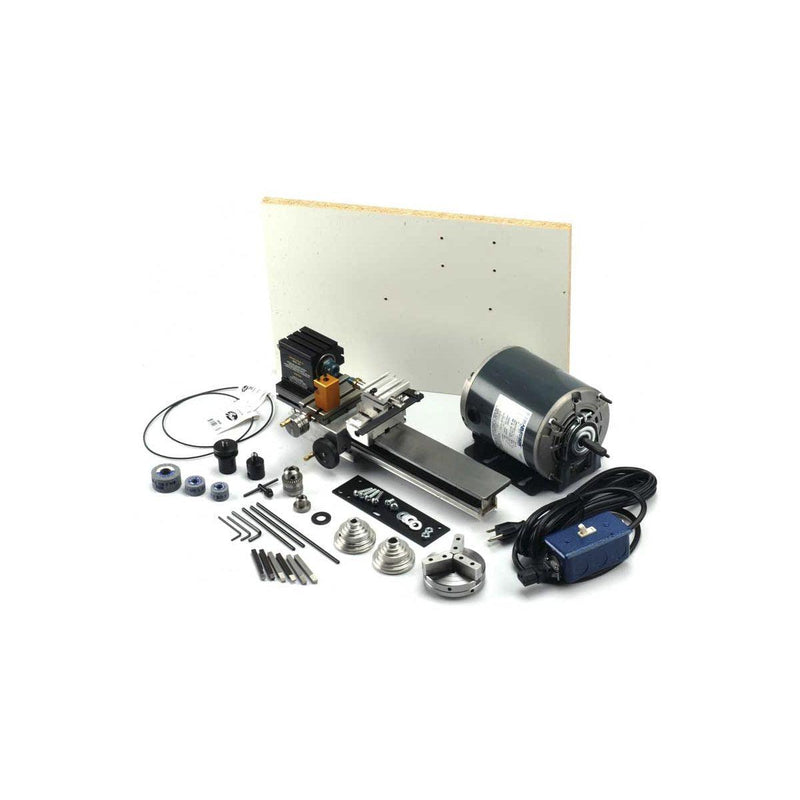

Basic Lathe Unit TAIG 1017ER with tool post, 15" bed (factory assembled sub-unit)
Drilling Tailstock TAIG 1150 lever tailstock with dead center (for drill chuck) — 141.150
Mounting Board TAIG 1023 mounting board — 141.023
Motor Mount TAIG 1022 motor bracket with hardware — 141.022
Motor 1/4 HP, 1725 rpm, 115 V — 141.021W
Pulleys & Belt Two 6-step pulleys with 3M-500 belt — 141.162
3-Jaw Chuck (3-1/4") Steel body 3-jaw chuck — 141.050
Drill Chuck Arbor Arbor (3/8"-24) for tailstock drill chuck — 141.140
Tailstock Drill Chuck 0–1/4" Jacobs-style drill chuck (3/8"-24) — 141.091
Bonus Tool Bit Set 6-piece HSS tool set — 141.095
Bonus Grinding Arbor Grinding wheel arbor (spindle mount) — 141.120
Bonus Grinding Wheels Grinding wheel set — 141.122
Bonus Replacement Belt Gates polyurethane V-belt (large) — 141.160

Assembly Notes

  • Board is pre-drilled; mounting screws are user-supplied.
  • Requires basic wiring of the motor to the on/off switch and mechanical mounting of components.
  • Setup video available; Otto Frei repair department can assist with questions.
