Paragon Express Large Burnout Kiln With Programmer-120V or 220V

Part # 122.112
Original price $2,788.70 - Original price $2,788.70
Original price
$2,788.70 - $2,788.70
Current price $2,788.70
In stock
Only 1 left!
by Paragon
Select Voltage: 240V

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

Product Details

Chamber Dimensions are 13” W by 13” D by 9” H

Choose from 2 voltages:

  • 122.110  120V
  • 122.112  220V-240V

New-watch an instructional video on the use of the Xpress Programmer

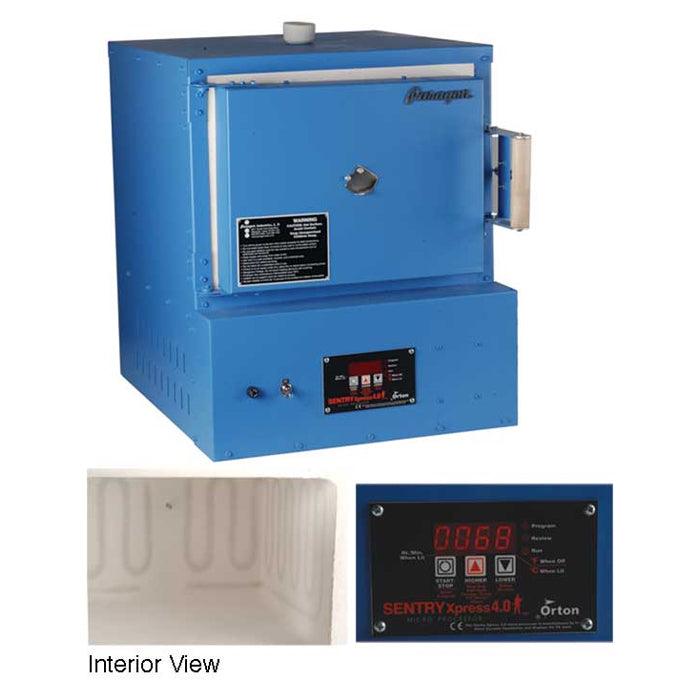

The Paragon Xpress Large Programmable Kiln is built for the casting shop that needs a larger wax burnout kiln. It features an efficient ceramic fiber chamber that measures 13” wide by 13” deep by 9” high and a built-in Sentry Xpress 3 key controller that can store up to four distinct 8 stage burnout programs. The ceramic fiber chamber means this kiln doesn’t waste energy heating up your shop, and the controller means you can set it and forget it while enjoying perfect burnouts.

The Paragon Xpress Programmable Kiln Features:

  • On/off safety switch
  • One piece ceramic fiber chamber with embedded elements
  • Door opens 180 degrees for easy loading
  • Vent hole and steel cover in the top and door
  • Tightly sealing door with a heavy spring latch
  • Built in multi-stage programmer (see details below)
  • Maximum temperature 1700° F. (926° C)
  • Chamber dimensions-13” W x 13” D x 9” H
  • Cabinet dimensions-17-3/8” W x 16”D x 17” H
  • 120V/60H-draws 20 Amps or 240V
  • Actual weight 90lbs.
  • Ships truck freight only - Crate 44" L x 28" W x 34" H
  • Requires NEMA 5-20R receptacle outlets

Features of the Sentry Xpress 3-key Controllerbr>

  • Design programs with up to 8 segments (steps) in Ramp-Hold mode.
  • Fire to a single temperature at a single speed in the simplified Single Speed mode.
  • Ramp-Hold mode can store 4 programs.
  • Skip a segment in Ramp-Hold during firing without having to stop the kiln to reprogram.
  • Change the target temperature in Ramp-Hold during firing without having to stop the kiln to reprogram.
  • Hold (soak) the temperature in both Single Speed and Ramp-Hold. Experiment with Hold to improve color saturation of china paints.
  • Add Hold Time during firing without having to stop the kiln to reprogram.
  • Control both heating and cooling in Ramp-Hold.
  • Program Review lets you check the program you are about to fire.
  • Program the Temperature Alarm to sound when the kiln reaches a specific temperature. Use this to remind yourself to check on the kiln.
  • Temperature display throughout firing and cooling in your choice of °F or °C
  • Thermocouple Offset adjusts the thermocouple readout.
  • Set the Delay to turn on the kiln later to suit your schedule.
  • Error Messages report mechanical problems such as a disconnected thermocouple, stuck relay or broken element.
  • 12 Month Warranty
  • LED Lights show whether you are in program, review, or firing mode.
  • To see an owners manual for the programmer click here
