Paragon Guillotine Style Circulating Kiln - Otto Frei

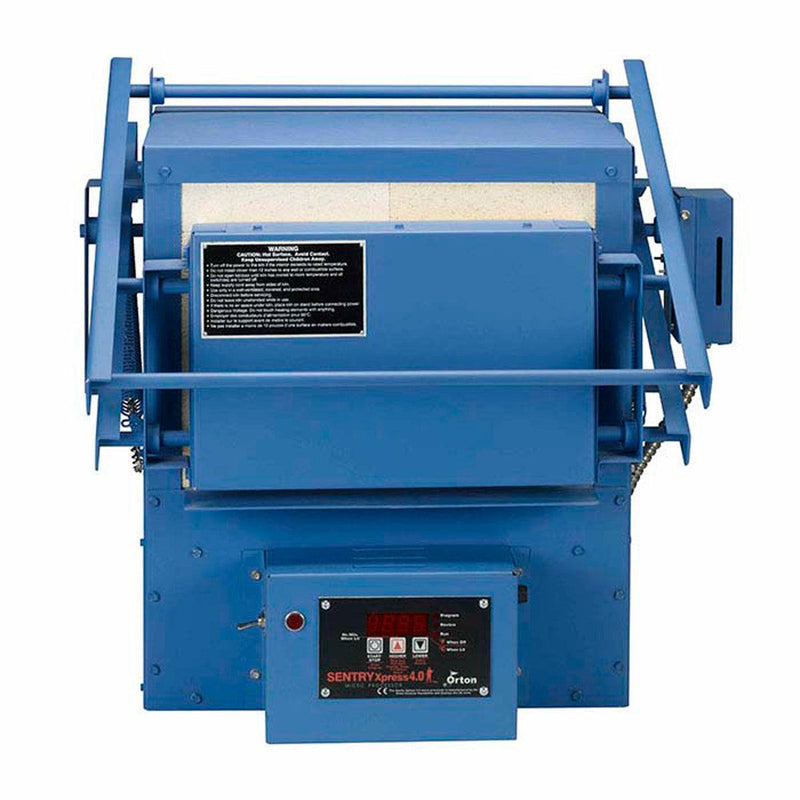

Paragon Guillotine Style Circulating Kiln

Part # 122.170

Single unit weight: -- lbs / -- kg

Sold out
$2,695.00 - $2,695.00
$2,695.00
$2,695.00 - $2,695.00
$2,695.00
Availability:
Out of stock
by Paragon

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

Product Details

The Paragon S1420 conventional firebrick exposed heating element burnout kiln features an innovative air intake vent and circulation system that significantly improves burnout performance, providing the oxygen necessary to vaporize wax for cleaner, more complete elimination. Its built-in three-key Sentry controller stores up to four programs, each with up to eight segments that you can save and use. The conventionalĀ firebrick interior ramps up somewhat slower than fiber muffle types but holds target temperatures more steadily through longer programs for less wear and tear on your controller. The powder-coated finish is tough and durable, providing years of service. Includes a two-year manufacturer warranty.

Guillotine-style door opens up and out of the way allowing safer, easier, opening and closing and doesn't require a lock to hold it shut. When the door is opened, escaping heat is channeled up and back, away from the operator rather than straight out. While open, the hot surface of the door remains rear-facing.

Powerful built-in controller for customized, automated burnout

Heating element is insulated by firebrick' element is exposed for ease of replacement should you need to replace it.

Easy to program and operate. Four eight-stage programs are available for your most-used applications.

Specifications:
Power: 110 Volts
Dimensions: 15"W x 12"D x 15"H
Country of origin: United States
Inside Dimension: 9"W x 9"D x 7"H

Additional Specifications:
Solid flask capacity:Nine 2" x 3" or four 4" x 6" flasksĀ
Perf. flask capacity: Two 4" x 6" flasks
Max. Temperature: 2,012Ā°F (1,000Ā°c)
