Profiform 200 Master Kit-Complete With All Accessories

Part # 153.399

Single unit weight: -- lbs / -- kg

Save 11% Save 11%
$5,200.00 - $5,200.00
$5,200.00
$4,635.00
$4,635.00 - $4,635.00
$4,635.00
by Profiform

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

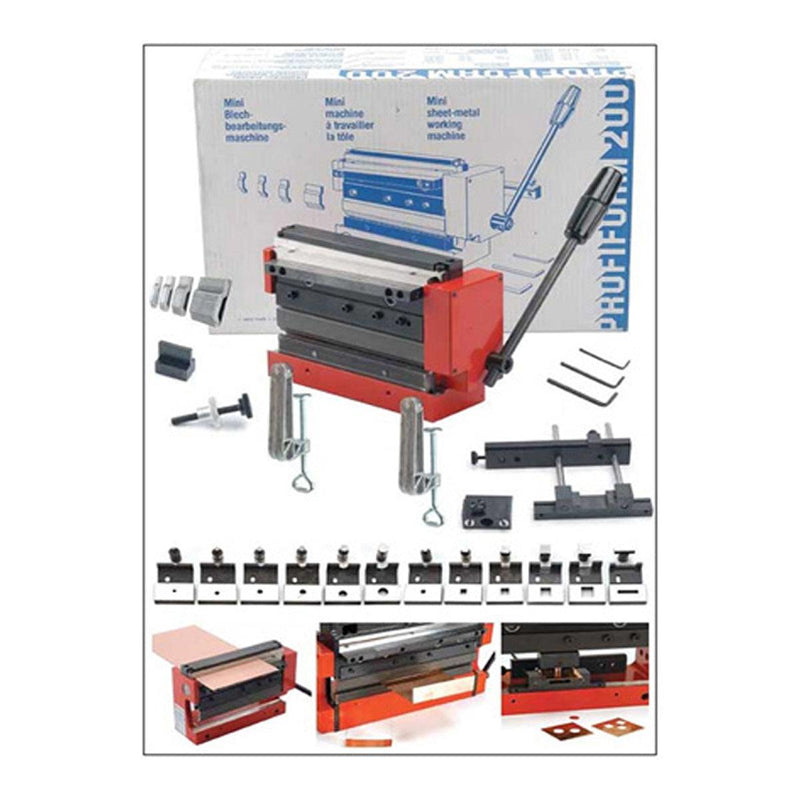

Profiform 200 Master Kit is the complete Swiss-made metal forming system. Centered on the Profiform 200 combination bench shear and bending brake, this kit includes every factory accessory so you can shear, bend, crop, punch round and square holes, form louvers and reinforcement beads, set boxed/bullnose edges, and make accurate, repeatable cuts from one compact workstation.

Core Machine (Profiform 200)

  • Capacity: Shears up to 7-3/4" (200 mm) wide sheet.
  • Thickness guides: Non-ferrous metals (gold, silver, copper, brass) to approx. 18 ga (≈1.0 mm); aluminum and other soft materials to ≈1.5 mm.
  • Cutters: Precision-ground, hardened reversible high-speed steel with four cutting edges.
  • Bending tooling: V-blocks and punches in high-grade profiled steel for crisp, repeatable bends.
  • Materials: Metals, plastics, paper, cardboard, PCB, veneer and more (within stated thicknesses).
  • Origin: Switzerland.

What’s Included (Master Kit)

SKU Item Function
153.400 Profiform 200 Basic Unit (Shear & Brake) Shearing and bending core machine
153.430 Punch Tool Holder Accepts all round, 4-corner, and corner-crop punches
153.403 Round Punch 3 mm Clean round holes
153.404 Round Punch 4 mm
153.405 Round Punch 5 mm
153.406 Round Punch 6 mm
153.408 Round Punch 8 mm
153.410 Round Punch 10 mm
153.414 4-Corner Punch 4 × 4 mm Square/rectangular corner and slot punches
153.416 4-Corner Punch 6 × 6 mm
153.418 4-Corner Punch 8 × 8 mm
153.420 4-Corner Punch 10 × 10 mm
153.422 4-Corner Punch 12 × 12 mm
153.424 4 × 20 mm Slot/Corner Punch

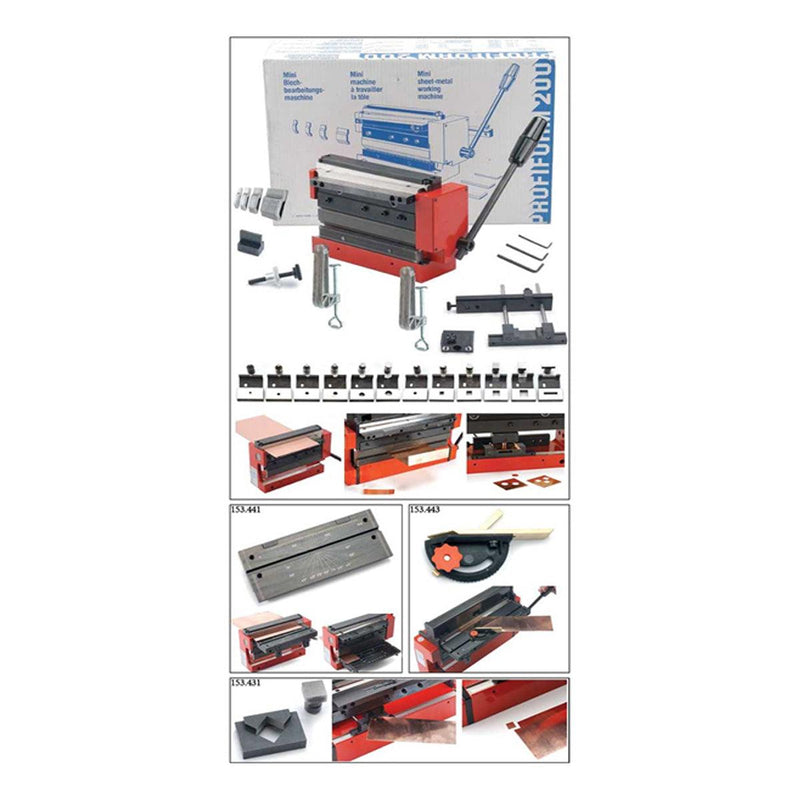

153.441 Universal Table Work support; mounts top (shear) or bottom (brake)
153.443 Angle Stop (fits Universal Table) Precise, repeatable angled positioning
153.431 Corner Cropping Tool Set Trims corners for box construction

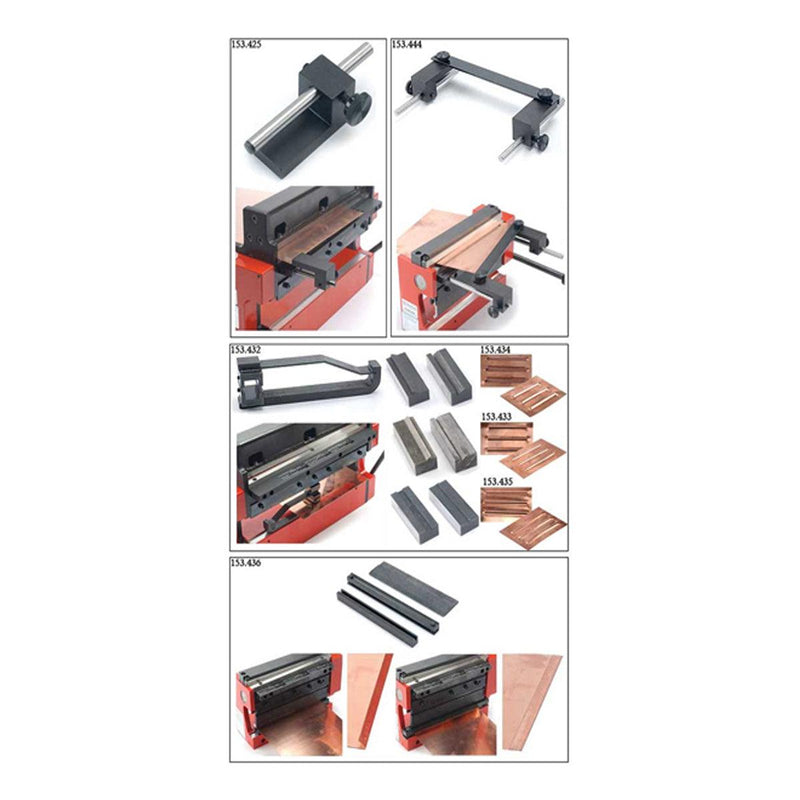

153.425 Basic Shear Stop Repeatable straight-length cuts
153.444 Double-Sided Shear Stop Repeatable cuts on different shapes/widths
153.432 Forming Tool Holder Accepts louver and reinforcement tools
153.433 Louver Set 1.5 × 35 mm Form vent louvers
153.434 Louver Set 2.5 × 35 mm Form vent louvers
153.435 Reinforcement Set 1.0 × 35 mm Create stiffening beads/ribs
153.436 Boxing Tool Set (Profiform 200) Bends sharp edges into safe bullnose ends

Applications

  • Strip cutting, blanking, and precise bends for jewelry and small fabrication
  • Disk, square, and slot punching for findings and components
  • Louvers, reinforcement beads, boxed edges, and corner cropping for box work

Bench Tips

  • Use the Universal Table + Angle Stop for longer pieces and repeatable angled shears.
  • Index cutters to a fresh edge to maintain clean shears and prolong tool life.
  • Operate within stated material thicknesses for best results.
