Profiform 320 Master Kit-Complete With All Accessories

Part # 153.427

Single unit weight: -- lbs / -- kg

Save 11% Save 11%
$7,147.00 - $7,147.00
$7,147.00
$6,365.00
$6,365.00 - $6,365.00
$6,365.00
by Profiform

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

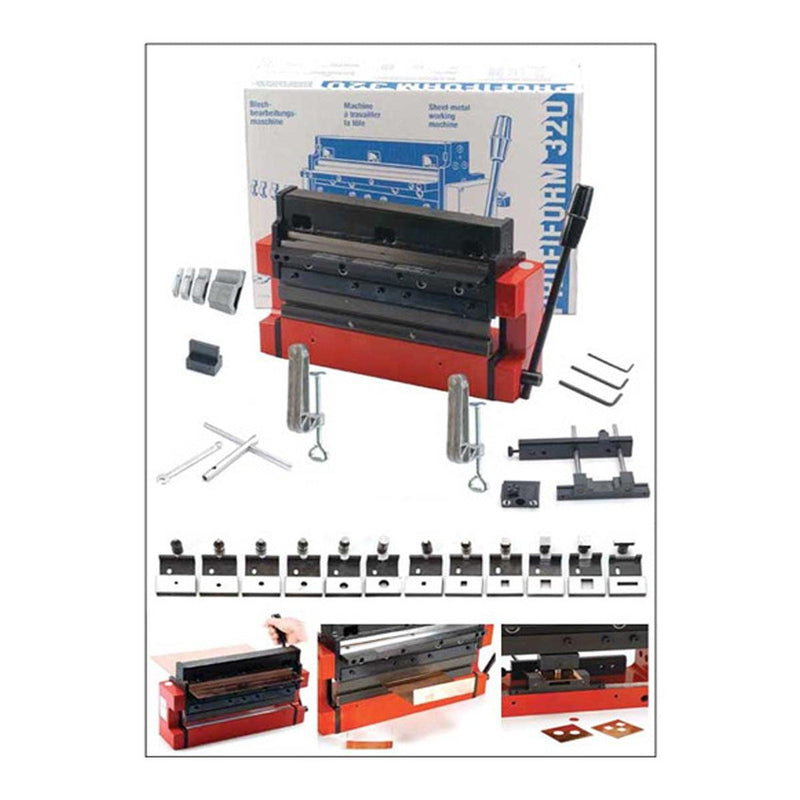

Profiform 320 Master Kit is the complete Swiss-made metal forming workstation. Centered on the Profiform 320 combination bench shear and bending brake, this kit includes every factory accessory so you can shear, bend, crop, punch, form louvers and reinforcements, set boxing/bullnose edges, and make repeatable, accurate cuts—all from one compact, bench-mounted system.

Why Choose the Master Kit

  • Everything in one box: All punches, holders, forming tools, stops, and mounting hardware are included.
  • Swiss precision: Clean shears and crisp bends with a strengthened, dual-sided gearing drive.
  • Large sheet capacity: Handles common 12″ × 12″ sheet formats with ease.
  • Bench-ready & modular: Threaded base for rigid bolting; optional plate enables quick C-clamp mounting.

Core Specifications (Profiform 320)

Max Cut Width 12-1/2″ (320 mm)
Max Thickness — Non-ferrous (Cu/Br/Ni-Ag) ≈ 1.0 mm
Max Thickness — Aluminum ≈ 1.5 mm
Mechanism Dual-sided gearing for shearing & bending
Mounting Two threaded holes in base (bench bolt-down)
Origin Switzerland

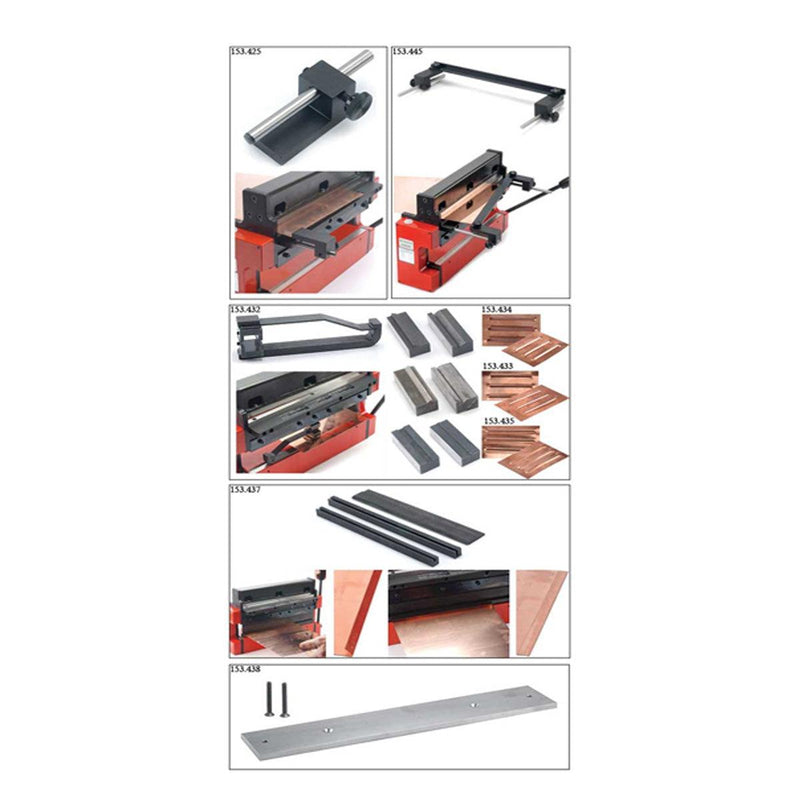

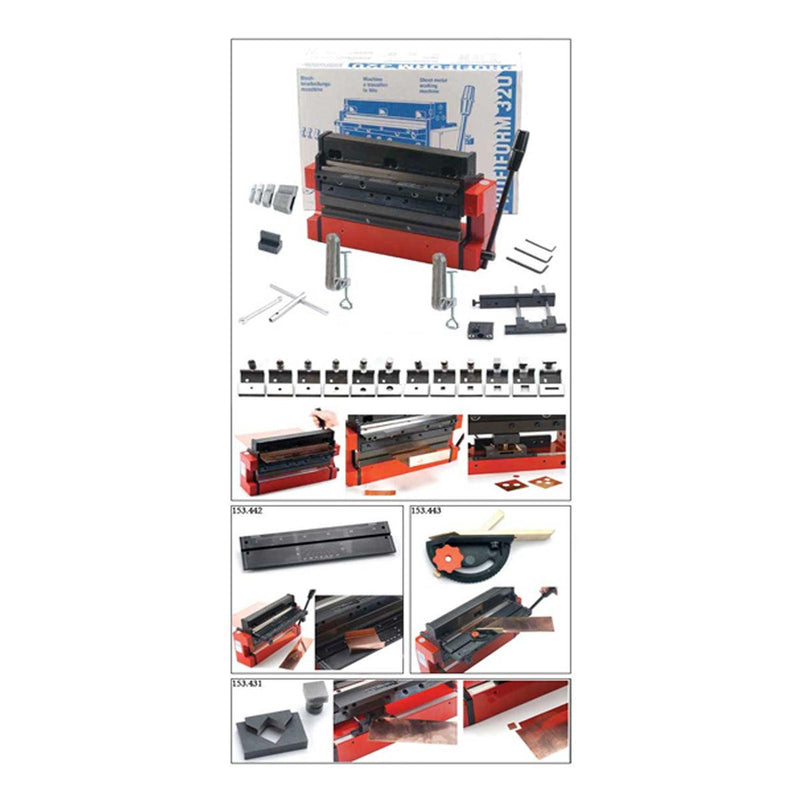

What’s Included (Master Kit)

SKU Item Function
153.428 Profiform 320 Basic Unit (Shear & Brake) Shearing and bending core machine
153.430 Punch Tool Holder Holds round, 4-corner & corner-crop tools
153.403–410 Round Punch Set (3, 4, 5, 6, 8, 10 mm) Clean round holes in sheet
153.414–424 4-Corner Punches (4×4, 6×6, 8×8, 10×10, 12×12, 4×20 mm) Square/rectangular corner punching
153.442 Universal Table (fits shear top or brake bottom) Work support for long/large pieces
153.443 Angle Stop (for Universal Table) Precise, repeatable angle positioning
153.431 Corner Cropping Tool Set Trims corners for box construction
153.425 Basic Shear Stop Repeatable straight-length cuts
153.445 Double-Sided Shear Stop Repeatable cuts on different shapes
153.432 Forming Tool Holder Accepts louver and reinforcement tools
153.433 Louver Set 1.5 × 35 mm Vent/louver forming
153.434 Louver Set 2.5 × 35 mm Vent/louver forming
153.435 Reinforcement Set 1.0 × 35 mm Stiffening beads/ribs
153.437 Boxing Tool Set (Profiform 320) Forms safe bullnose (boxed) edges
153.438 Aluminum Mounting Plate Quick clamp-on bench mounting (C-clamps)

Applications

  • Jewelry prototyping and small-batch production
  • Model making and precision sheet-metal layout
  • Light fabrication—louvers, stiffening beads, boxed edges

Bench Tips

  • Use the Universal Table + Angle Stop for longer sheets and repeatable angled shear operations.
  • Index to a fresh cutting edge on the blades to maintain clean shears and extend tool life.
  • Rigidly mount to your bench (or use the Aluminum Mounting Plate for clamp-on setups) to minimize flex.
