Quatro Gold Vault Extra INFINITY Dust Collector-HD-110V

The Quatro Gold Vault Extra INFINITY Dust Collector (GV-217 KRJ, 110V) is a heavy-duty personal dust and fume collector engineered for bench-side use in professional jewelry and metalsmithing studios. This single, quiet unit combines particulate dust collection with fume and odor control through a true 3-stage filter stack: a bag pre-filter, a charcoal fume/odor filter, and a HEPA final filter — all included and installed. Powered by a variable-speed, maintenance-free INFINITY turbine motor, it delivers up to 141 CFM of capture performance while maintaining a compact 9" x 9" footprint.

Features

• Integrated dust and fume control via a 3-stage filter system with individual HEPA and charcoal filters
• Heavy-duty INFINITY turbine motor — quiet, variable speed, maintenance-free (120V, 7A, 1PH, 60Hz, 1 HP)
• Compact 9" x 9" footprint with high capture performance through a 1-1/2" inlet
• Updated control panel and upgraded filter configuration on current production models
• Designed for bench-side use in jewelry and metalsmithing studios

Specifications

Available Options

What's Included

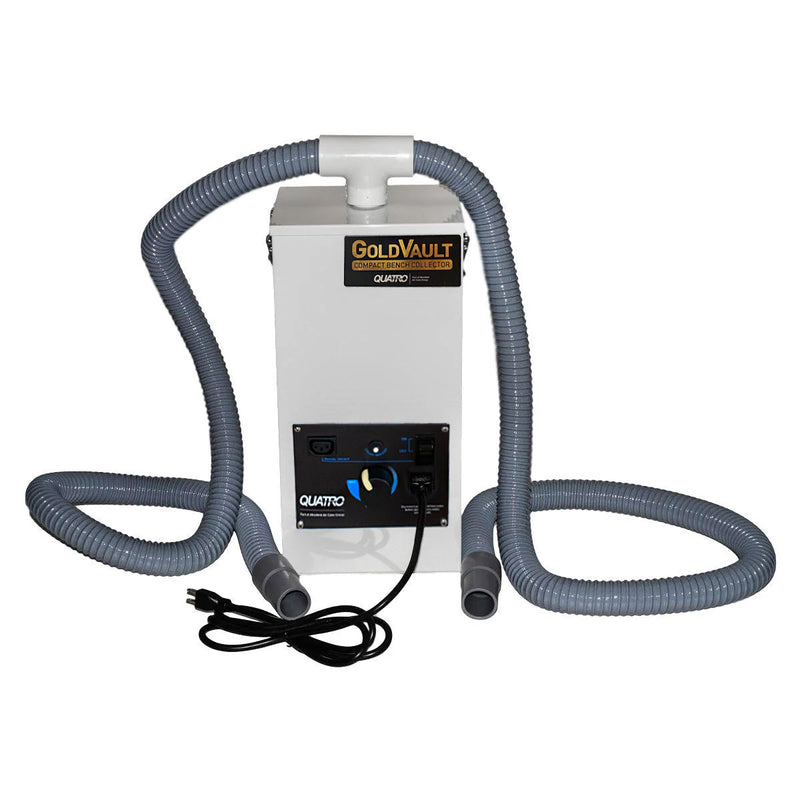

• Gold Vault Extra INFINITY dust & fume collector (GV-217 KRJ, 110V)
• Two (2) × 4 ft. lengths of 1-1/2" grounded flexible hose
• T-section for dual pick-up connections

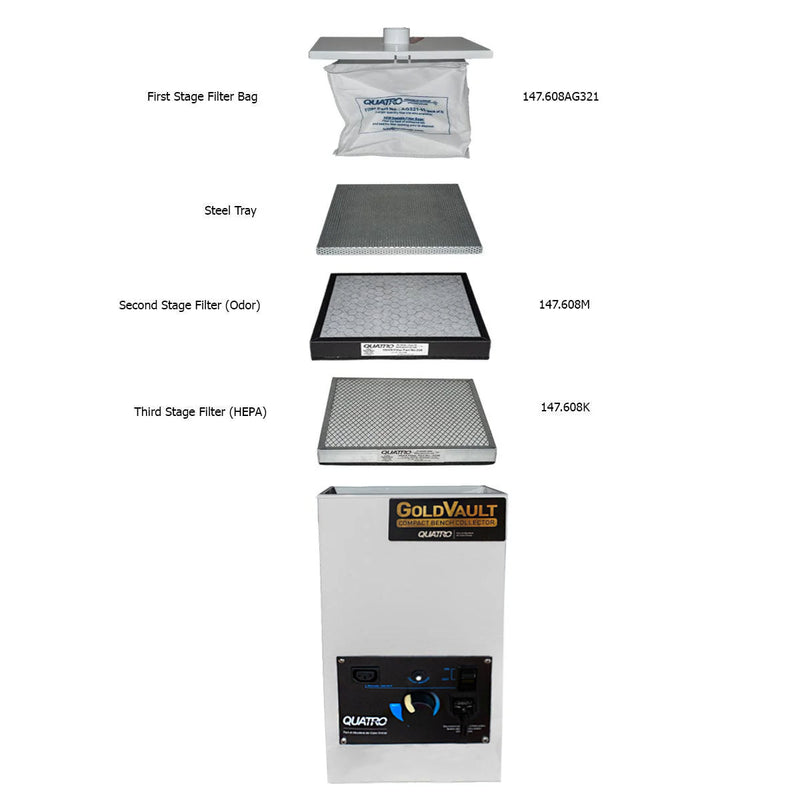

• Installed 3-stage filter set: bag pre-filter (AG321), charcoal filter (F229), and HEPA filter (F230)

Compatibility

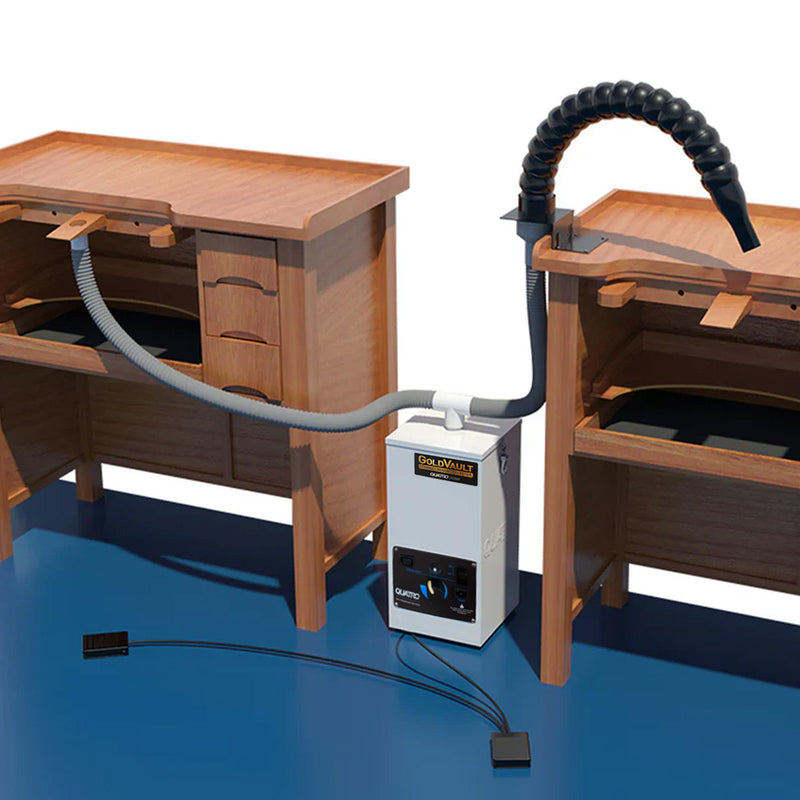

Connect to polishing hoods and/or a solder fume hood using the included T-section and hoses. Common setups pair one hose with a polishing hood (e.g., Jet Port with Comfort Zone, 147.032GRS) and one with a Quatro Fume Collection Hood Kit (147.631), often using a step-down adapter (147.6011) to mate 1-1/2" to 3" ports. Additional hose lengths, clamps, and adapters may be required depending on bench layout.

Notes

Filter ordering: Always verify your Gold Vault model number before ordering replacement filters — filter compatibility differs by production era.

• GV-217 KRJ / GV221-26G (current production, late 2017–present): Use 147.608AMG321 (AG321-3) bag filters with 147.608AR488 steel grille, 147.608M (F229) charcoal filter, and 147.608K (F230) HEPA filter.
• GV117-KRJ / GV117-KRJ-26 (sold up to late 2017): Use 147.608A (AG140) or 147.608AXF (AG204) bag filters — does not use the AR488 steel grille — plus 147.608M and 147.608K.
• GV101 / GV201 (first production, up to 2015): Use 147.608B cartridge filter and 147.608D HEPA/charcoal box filters. These models cannot use filters from other Gold Vault models.

Filter maintenance: Check first-stage bags frequently; seal used bags to recover precious metal dust. Replace charcoal filter (F229) when odors return. Inspect HEPA filter (F230) periodically — under typical daily use, replace charcoal approximately every 6 months and HEPA approximately annually (actual intervals vary with use).

California Prop 65 Warning:
Cancer and Reproductive Harm. www.P65warnings.ca.gov.
