Quatro SPB-560-1BK SolderPure Solder/Waxing/Smoke Fume Extractor

Part # 147.628
Original price $1,398.00 - Original price $1,398.00
Original price
$1,398.00
$1,398.00 - $1,398.00
Current price $1,398.00
by Quatro

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

Product Details

SolderPure Solder/Waxing/Smoke (SWS) Fume Extractor SPB-560-1BK 110V

The Quatro SolderPure line of Fume extractors are specially designed to source capture solder smoke & fumes before they migrate throughout your workshop.


Available in 3 models:

147.628 SPB-560-1BK for removing soldering, waxing smoke and odors. This is the Quatro SolderPure SWS (Solder/Waxing/Smoke) Fume Extractor.

147.629 SPB-560-1R-K for removing rhodium/plating fumes

147.630 SPB-560-1T-K combination unit, for doing both Solder/Waxing/Smoke and Rhodium/Plating fumes. Contains 2 Charcoal filters. Added filter reduces CFM rating.


SolderPures have a 3 stage filtering system with the final stage containing a special 2" thick charcoal filter. This Solder/Waxing/Smoke fume Extractor contains the standard charcoal filter. Other SolderPures contain different charcoals for different applications.


SolderPures do not need to be vented, as they are 99.9% efficient in removing harmful smoke and odors from the workplace. SolderPures are mounted on casters for shop mobility. Noise is not a problem as the whisper quite SolderPure operates at only 52 dba. This SolderPure is rated at 170 CFM.



SolderPures have 2 ports on top (photo shows one with a red cover cap, the other with the included Quatro AA006 Flex Extraction Arm with Slide Valve) so you can set up a two different fume collection stations.

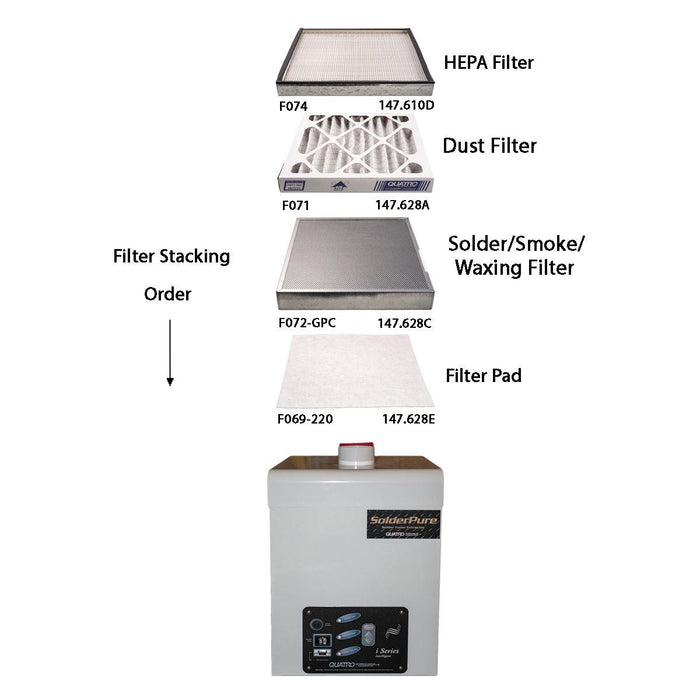

This Combo SolderPure has this filter configuration:

147.628A Quatro F071 SolderPure Dust Filter

147.610D Quatro F074 HEPA Filter
147.628C Quatro F072-GPC Charcoal Solder/Waxing/Smoke Filter*
147.628E Quatro F069-220 SolderPure Filter Pad


*This charcoal filters is refillable. No need to buy a complete charcoal replacement filters.  Simply purchase the charcoal refill of your choice. Each refill contains enough material for 5 refills.

  • 147.628D Quatro NC-GPC Charcoal Solder/Waxing/Smoke Refill Material


This SolderPure includes the following accessories:

  • Quatro AA006 Flexible Extraction Arm with 3" diameter Slide Valve.
  • Quatro M041 Table Bracket for 3" diameter hose
  • Quatro 3" diameter Fume Hose-8 feet with Clamps

Install your SolderPure near your fume source.  Clamp the 3" diameter fume hose to one of the inlets and the other end clamp to the Quatro 147.6006 Table Bracket. Attach the slide valve cap then attach the hard plastic flexible extraction arm with the hood to the Table Bracket. Place the hood as close as you can near, preferable over, the fume source.

This SolderPure includes the following accessories:

  • Quatro AA006 Flexible Extraction Arm with 3" diameter Slide Valve.
  • Quatro Collection Nozzle
  • Quatro Collection Hood
  • Quatro M041 Table Bracket for 3" diameter hose
  • Quatro 3" diameter hose 8 feet


You can purchase additional Extraction Arms as needed either as supplied (Quatro AA006, Otto Frei 147.631E) or in a complete kit with the Table Bracket and hose, Quatro AA008, Otto Frei part no. 147.631.




SolderPures can be attached to an optional foot pedal,#AA175 , for turning off and on, or the mc2 automatic control box, part number 147.633, that can make your flex shaft foot control (or other piece of equipment like a foot controlled wax pen) an on/off switch for the SolderPure.


The SolderPure measures 20" high by 12-3/4" wide by 15-3/4" deep and has a shipping weight of 56 lbs and is standard 115V/60C.







Warning: Cancer and Reproductive Harm www.P65warnings.ca.gov.
