Smith NE835A Handi-Heet Acetylene Air Torch Kit with 3 Tips-for B Tank - Otto Frei

Smith NE835A Handi-Heet Acetylene Air Torch Kit with 3 Tips-for B Tank

Part # 114.403

Single unit weight: -- lbs / -- kg

Save 24% Save 24%
$634.80 - $634.80
$634.80
$481.00
$481.00 - $481.00
$481.00
Availability:
Only 3 left!
by Smith Torch

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

Product Details

The Smith NE835A Handi-Heet acetylene atmospheric-air torch kit (Part No. 114.403) is a robust, easy-to-use solution for jewelry soldering and small casting without an oxygen tank. It uses the same solid-brass Silversmith torch body as the Silversmith kit, but adds three larger “slip-in” tips for faster heat on bigger work. Recommended fuel pressure is 13–14 psi. Operating temperature is approximately 4700°F (2630°C).

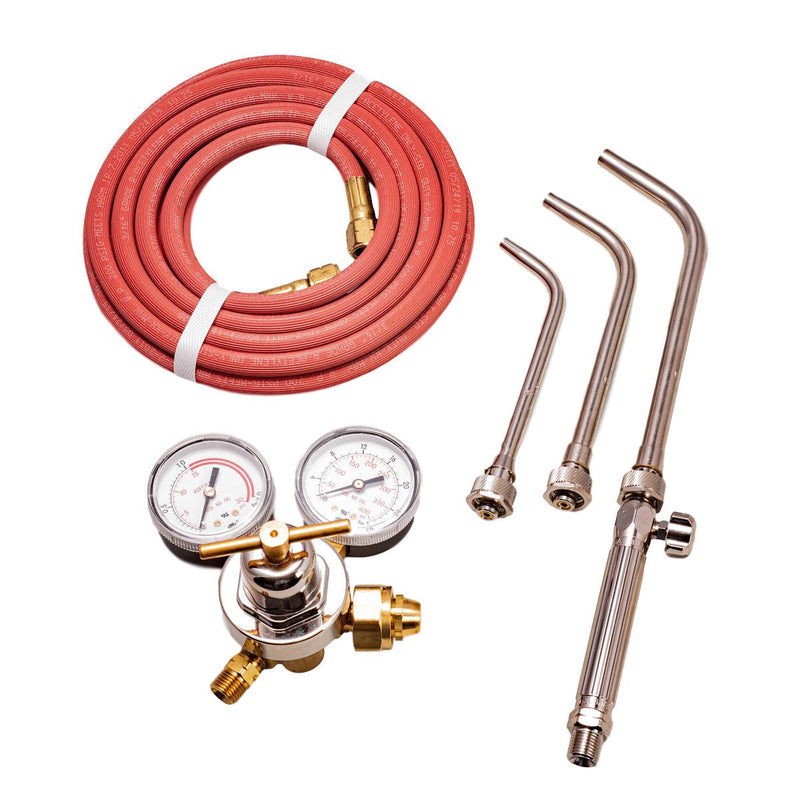

What’s Included

SKU Item Notes
114.405 Smith Silversmith Torch Handle (NE-180A) Machined solid brass; slip-in tip system
114.406 12' Twin Hose (RL121) USA standard B connections
114.409 Tip Size 1 (Small) Slip-in; nickel-plated
114.410 Tip Size 2 (Medium) Slip-in; nickel-plated
114.411 Tip Size 3 (Large) Slip-in; nickel-plated
114.036 B Tank Acetylene Regulator Single-stage; steady, sensitive regulation
— No Tank Empty B acetylene cylinder not included

Key Features

  • Acetylene + atmospheric air—no oxygen tank required
  • Slip-in tips with O-ring seal; rotate to any position, no wrench needed
  • Full-length fluted brass handle for a secure, comfortable grip
  • Precise needle valve for fine flame adjustment
  • Steady, single-stage regulator performance for consistent heating
  • USA standard B (9/16"–18) hose connections
  • Warranty: Torch handle 12 months (tips excluded)

Specifications

Fuel Acetylene (with atmospheric air)
Operating Temperature Approx. 4700°F (2630°C)
Recommended Pressure 13–14 psi (all included tips)
Included Tips #1 (Small), #2 (Medium), #3 (Large)
Optional Tips #00 Super Fine (SKU 114.407), #0 Fine, #4 Giant (SKU 114.412)
Hose Length 12 ft
Torch Body Length 5-3/8" (136 mm)
Tip Lengths Approx. 5" (fine) to 8" (giant)
Connections Fuel 9/16"–18 LH (B), Oxygen not required

Applications

  • General jewelry soldering and repair
  • Small ingot melts (with larger tip)
  • Heating, annealing, and brazing tasks at the bench

Optional / Compatible Tips

Notes & Safety

  • No oxygen cylinder, check valves, or flashback arrestors are required for this atmospheric-air torch.
  • Run regulator at 13–14 psi for all tips (#1–#3 included; #00 and #4 optional).
California Prop 65 Warning California Prop 65 Warning:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. www.P65warnings.ca.gov.
