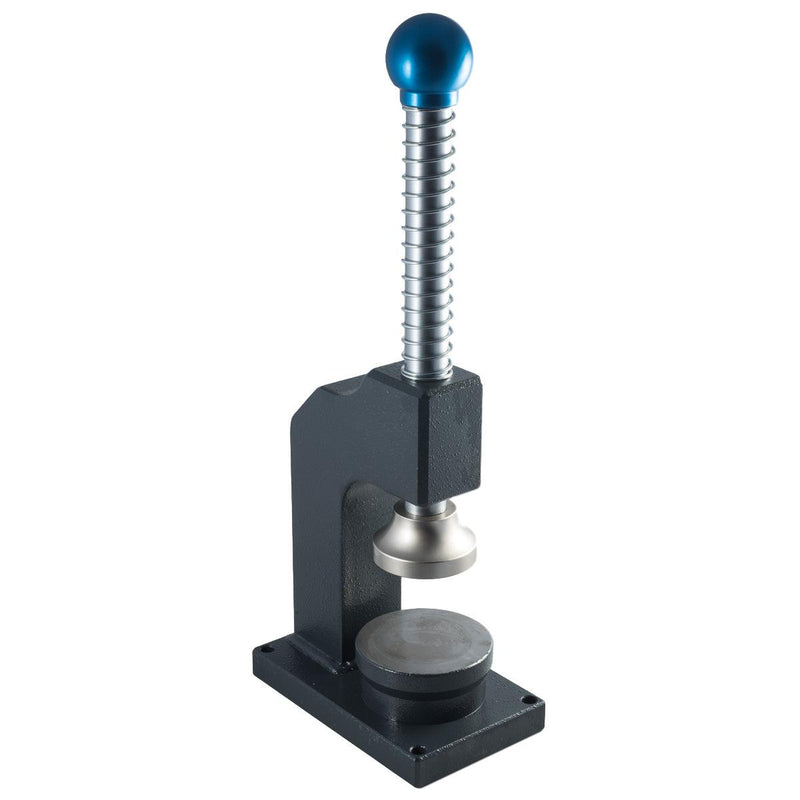

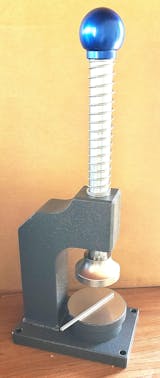

Spring Loaded Planishing Hammer-Large Size-3" (77mm) Top Platen

This large, stationary planishing hammer lets you quickly straighten and true sheet metal and other flat work. Place the piece on the table and press down on the spring-loaded head for fast, repeatable flattening. Hardened platens (≈Rockwell 60) are well-suited to non-ferrous alloys such as copper, brass, silver, and gold.

Key Features

• Large format: 3" (77 mm) round top platen; 4-3/16" (105 mm) removable lower platen.
• Spring-loaded action: rapid, controlled planishing without power or air.
• Hardened platens: ≈Rc 60 for reliable flattening on non-ferrous metals.
• Bench-stable: tall, heavy frame for consistent results on larger pieces.
• Made in Italy.

Specifications

Applications

• Straightening and flattening sheet in copper, brass, silver, and gold.
• Planishing after raising, embossing, or forming.
• Repairing waves and buckles before final finishing.

Notes / Care

• Use on non-ferrous metals; harder alloys may damage the platens.
• Keep platens clean and lightly protected to preserve the polished working surfaces.

Related Option

• Also available in a 2-3/8" (62 mm) size: 125.370.
