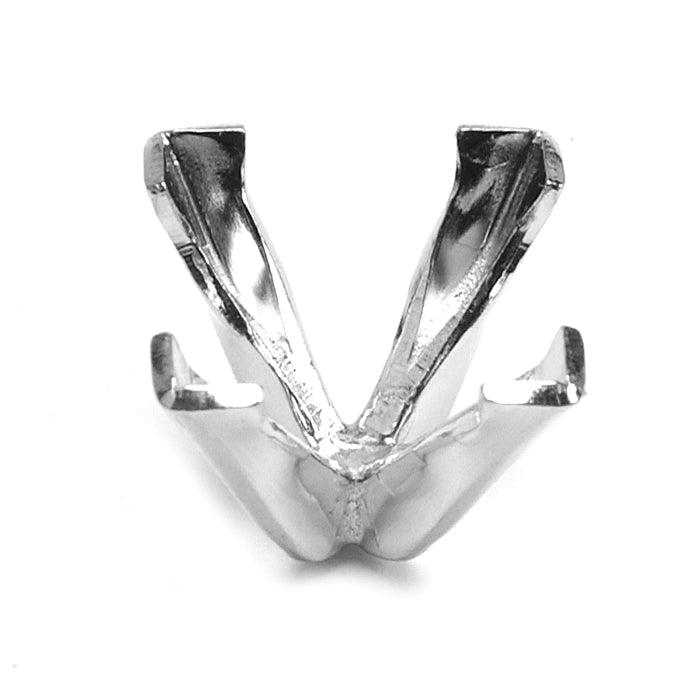

14KW & Platinum Square V-End High 4-Prong Die Struck - Otto Frei
Otto Frei

Gold & Platinum Square V-End High 4-Prong Die Struck Setting

Part # 41-962 Only 3 left Weight -- lb / -- g
$75.99
Metal Types: 14K White
Stone Size: .18-.20ct (3.0x3.0mm)

These die-struck square V-end high 4-prong settings are precision-manufactured in the USA and available in 14K white gold and platinum. The high-profile design showcases square stones beautifully, with V-end prongs that hug each corner for secure stone retention and a classic fine jewelry look. Eleven stone sizes are available, ranging from 3.0×3.0mm up to 9.0×9.0mm, making this setting family suitable for a wide range of square stone weights from .18–.20ct up to 3.50ct.

Features

  • Die-struck construction for superior density and fine surface finish
  • Square V-end prong design secures each corner of the stone
  • High-profile setting elevates the stone for maximum visibility
  • Available in 14K white gold and platinum
  • Eleven stone sizes to accommodate .18–.20ct through 3.50ct square stones
  • Made in the USA

Specifications

Construction Die Struck
Prong Style 4-Prong V-End
Profile High
Stone Shape Square
Metal Options 14K White Gold, Platinum
Stone Size Range 3.0×3.0mm – 9.0×9.0mm
Carat Weight Range .18–.20ct – 3.50ct
Origin USA

Available Options

Part # Metal Stone Size Setting Dimensions
41-962 14K White .18–.20ct (3.0×3.0mm) 6.5mm H | 4.0mm Top | 2.9mm Bottom
41-963 14K White .25ct (3.5×3.5mm) 6.5mm H | 4.5mm Top | 2.8mm Bottom
41-964 14K White .33ct (4.0×4.0mm) 7.0mm H | 5.2mm Top | 2.8mm Bottom
41-965 14K White .50ct (4.5×4.5mm) 7.0mm H | 5.5mm Top | 2.9mm Bottom
41-966 14K White .75ct (5.0×5.0mm) 7.9mm H | 6.2mm Top | 3.4mm Bottom
41-966.5 14K White 1.0ct (5.5×5.5mm) 8.0mm H | 6.4mm Top | 4.1mm Bottom
41-967 14K White 1.25ct (6.0×6.0mm) 8.5mm H | 7.3mm Top | 3.1mm Bottom
41-967.5 14K White 1.50ct (6.5×6.5mm) 8.5mm H | 7.4mm Top | 3.2mm Bottom
41-968 14K White 2.0ct (7.0×7.0mm) 8.5mm H | 8.4mm Top | 3.5mm Bottom
41-969 14K White 2.50ct (8.0×8.0mm) 9.0mm H | 9.5mm Top | 3.7mm Bottom
41-970 14K White 3.50ct (9.0×9.0mm) 9.5mm H | 10.8mm Top | 4.0mm Bottom
4B-962 Platinum .18–.20ct (3.0×3.0mm) 6.5mm H | 4.0mm Top | 2.9mm Bottom
4B-963 Platinum .25ct (3.5×3.5mm) 6.5mm H | 4.5mm Top | 2.8mm Bottom
4B-964 Platinum .33ct (4.0×4.0mm) 7.0mm H | 5.2mm Top | 2.8mm Bottom
4B-965 Platinum .50ct (4.5×4.5mm) 7.0mm H | 5.5mm Top | 2.9mm Bottom
4B-966 Platinum .75ct (5.0×5.0mm) 7.9mm H | 6.2mm Top | 3.4mm Bottom
4B-966.5 Platinum 1.0ct (5.5×5.5mm) 8.0mm H | 6.4mm Top | 4.1mm Bottom
4B-967 Platinum 1.25ct (6.0×6.0mm) 8.5mm H | 7.3mm Top | 3.1mm Bottom
4B-967.5 Platinum 1.50ct (6.5×6.5mm) 8.5mm H | 7.4mm Top | 3.2mm Bottom
4B-968 Platinum 2.0ct (7.0×7.0mm) 8.5mm H | 8.4mm Top | 3.5mm Bottom
4B-969 Platinum 2.50ct (8.0×8.0mm) 9.0mm H | 9.5mm Top | 3.7mm Bottom
4B-970 Platinum 3.50ct (9.0×9.0mm) 9.5mm H | 10.8mm Top | 4.0mm Bottom
California Prop 65 Warning California Prop 65 Warning:
Cancer and Reproductive Harm. www.P65warnings.ca.gov.
Brand
Otto Frei
Part #
41-962
Type
Settings
Country of Origin
United States
Dimensions
0.15 in x 0.15 in x 0.25 in
Construction
Die Struck
Prong Style
4-Prong V-End
Profile
High
Stone Shape
Square
Metal Options
14K White Gold, Platinum
Stone Size Range
3.0×3.0mm – 9.0×9.0mm
Carat Weight Range
.18–.20ct – 3.50ct
