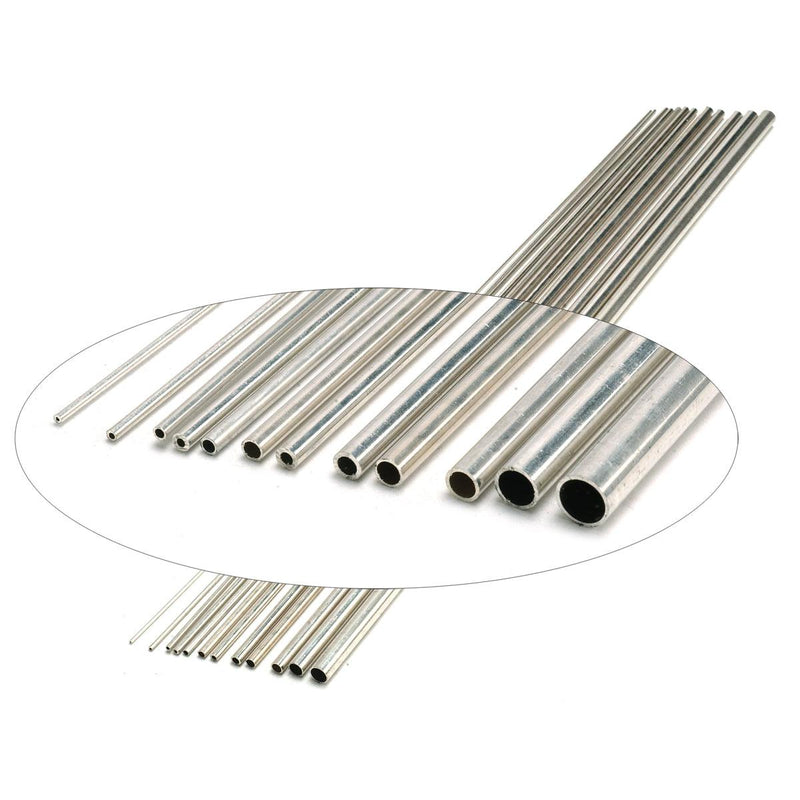

Sterling Silver Round Tubing - Sold in 12" Lengths

Sterling Silver Seamless Hollow Tubing-Sold in 12" (304.8 mm) Lengths

Also available in 3" lengths.  See 844-1005MAIN.

Sizes used for ordering above are approximate. Exact factory measurements are noted in red below

Choose from the following sizes:

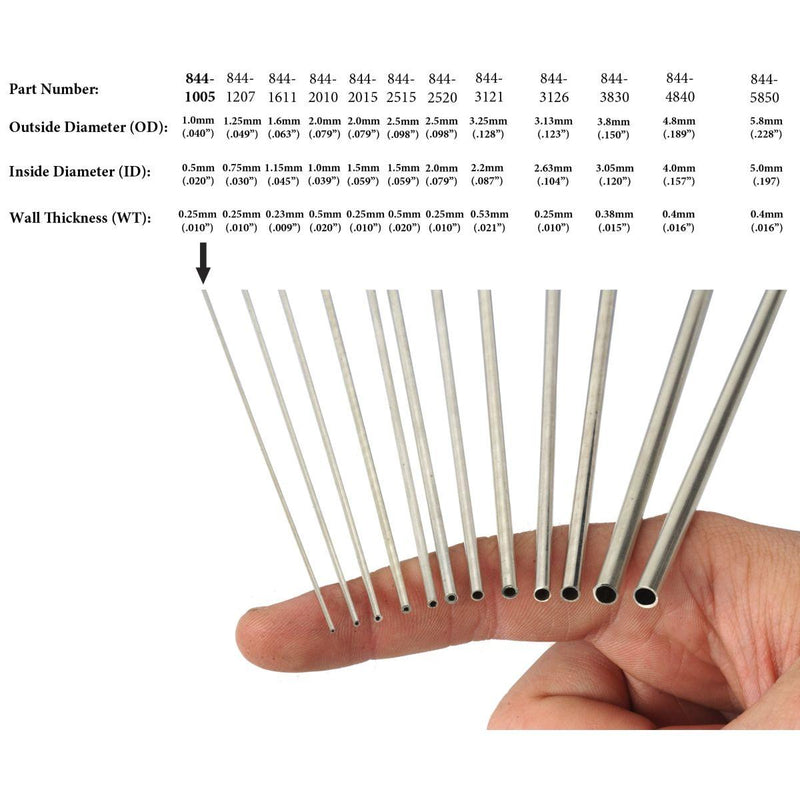

 Part No.      Outside Diameter x Inside Diameter-Insert Wire-Wall Thickness & Type

844-1611/12  1.62 mm OD x 1.11 mm ID 18 GA .25 mm Light Wall
844-2010/12  2.03 mm OD x 1.00 mm ID 19 GA .50 mm Heavy Wall
844-2015/12  2.03 mm OD x 1.52 mm ID 15 GA .25 mm Light Wall
844-2515/12  2.56 mm OD x 1.54 mm ID 15 GA .50 mm Heavy Wall
844-2520/12  2.56 mm OD x 2.05 mm ID 13 GA .25 mm Light Wall
844-3025/12  3.02 mm OD x 2.26 mm ID 13 GA      .40 mm Medium Wall
844-3121/12  3.25 mm OD x 2.23 mm ID 12 GA .50 mm Heavy Wall
844-3126/12  3.25 mm OD x 2.74 mm ID 10 GA .25 mm Light Wall
844-3525/12  3.55 mm OD x 2.54 mm ID 11 GA      .50 mm Heavy Wall
844-3830/12  3.86 mm OD x 3.09 mm ID   9 GA .40 mm Medium Wall
844-4535/12  4.57 mm OD x 3.55 mm ID   8 GA .50 mm Heavy Wall
844-4840/12  4.87 mm OD x 4.11 mm ID   7 GA .40 mm Medium Wall
844-5643/12  5.61 mm OD x 4.34 mm ID   6 GA .625 mm X Heavy Wall
844-5850/12  5.86 mm OD x 5.10 mm ID   5 GA      .40 mm Medium Wall


Product Notes:

For Hinge Making: You will need a slightly smaller diameter wire than the inside diameter (ID) to fit into the hole.

For Tube Setting Faceted Stones: Choose an outside diameter (OD) about a half a mm larger than the stone, and the inside diameter (ID) smaller than the stone, so the stone does not fall through but has a seat. The inside diameter (ID) is actually the hole of the tubing. Then choose a setting bur the exact size of the stone to be set. If your stone is between sizes choose tubing the next size smaller. Now take a center punch and drive the punch into the center of the tube to stretch it a half mm larger than the stone. Then proceed to cut seat and set stone. This creates a slightly tapered setting that can be desirable. Use bezel setting tools like part#153.154MA for fast and and uniform settings.

This is one piece 12" (304.8mm) long of sterling silver seamless hollow tubing.

Otto Frei sells the HARMONY brand of made in the USA silver wire, made from 100% recycled material from non-mined sources such as reclaimed jewelry, silverware, coins precious metals and dental scrap. Otto Frei fine silver is jewelry quality and not medical grade material.
