Swiss Made G-Torch II Components

Swiss Made G-Torch II Torch Components are precision-built for jewelers, casters, and metalsmiths who need reliable and efficient control using oxygen and propane. Choose from four compatible parts to configure your ideal setup for repair, soldering, or casting applications.

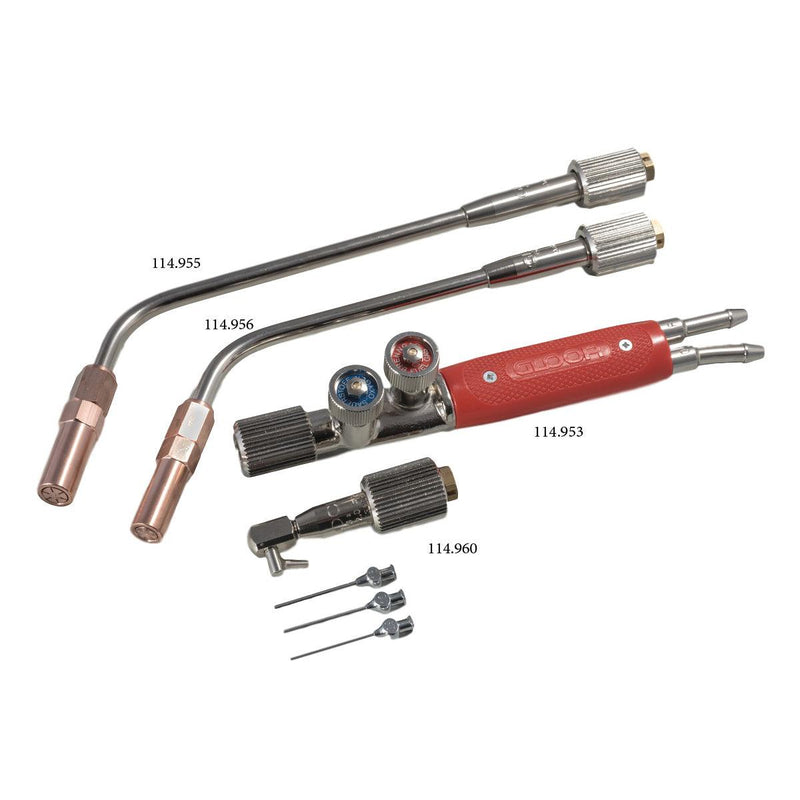

Available Parts

• 114.953 – G-Torch II Body: Main handle designed for use with all G-Torch II heads.
• 114.960 – Micro Head & 3 Tips: For precision bench soldering and repair work.
• 114.956 – Small Casting Head: 26,000 BTU tip ideal for gold, silver, and similar metals.
• 114.955 – Large Casting Head: 36,000 BTU tip for platinum and other high-temperature metals.

System Compatibility

All G-Torch II components are Swiss Made and engineered to operate exclusively within the G-Torch II system. They are not interchangeable with the Swiss Torch series.

Specifications

G-Torch II Body (Part No. 114.953)

Micro Head & 3 Tips (Part No. 114.960)

• Tip orifices: 0.9 mm, 1.2 mm, 1.6 mm
• Hypodermic tips friction-fit on a 360° rotating head
• Recommended pressure settings:

• Total torch length (with micro tip extended): 13-1/2 in (343 mm)
• Flame control via oxygen valve; suitable for fine bench work and repair

Small Casting Head (Part No. 114.956)

• Heat output: 26,000 BTU (27,000 kJ/h)
• Marked: No. 4 / Factory #3955 P (Propane)
• Tip length: 9-1/2 in (241 mm)
• Recommended maximum output settings:

• Best choice for casting gold, silver, and medium-temperature metals
• Not for use with acetylene

Large Casting Head (Part No. 114.955)

• Heat output: 36,000 BTU (38,000 kJ/h)
• Marked: No. 6 / Factory #3956 P (Propane)
• Tip length: 10-3/4 in (273 mm)
• Ti-Research part number: 3120-20
• Recommended maximum output settings:

• Provides sufficient heat for platinum casting and high-temperature alloys
• Not for use with acetylene

Notes & Safety

• Use only with oxygen and propane (or natural gas for micro work).
• Always ensure correct gas pressures and adequate ventilation.
• Made in Switzerland.

California Prop 65 Warning:
Cancer and Reproductive Harm. www.P65warnings.ca.gov.
